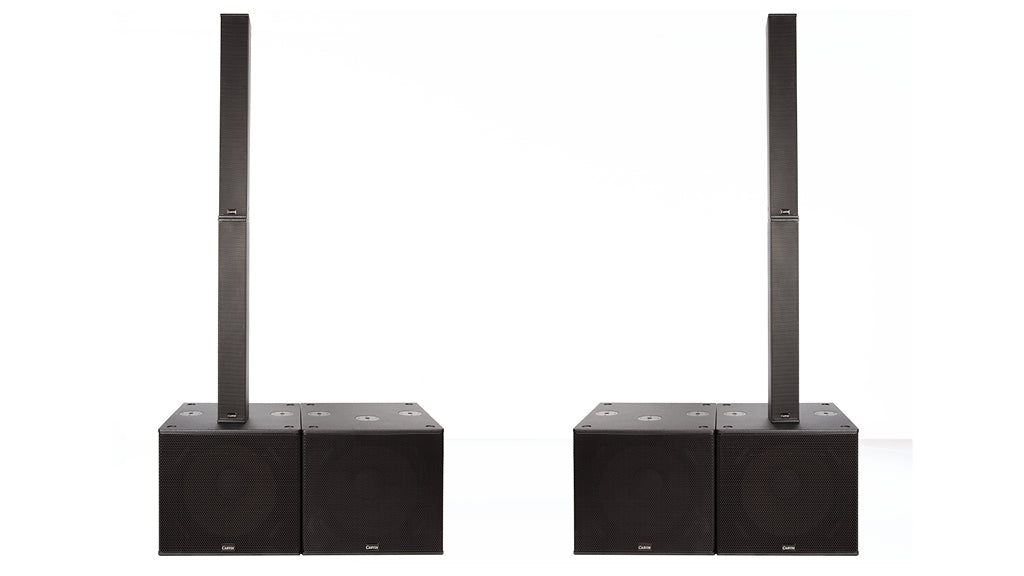

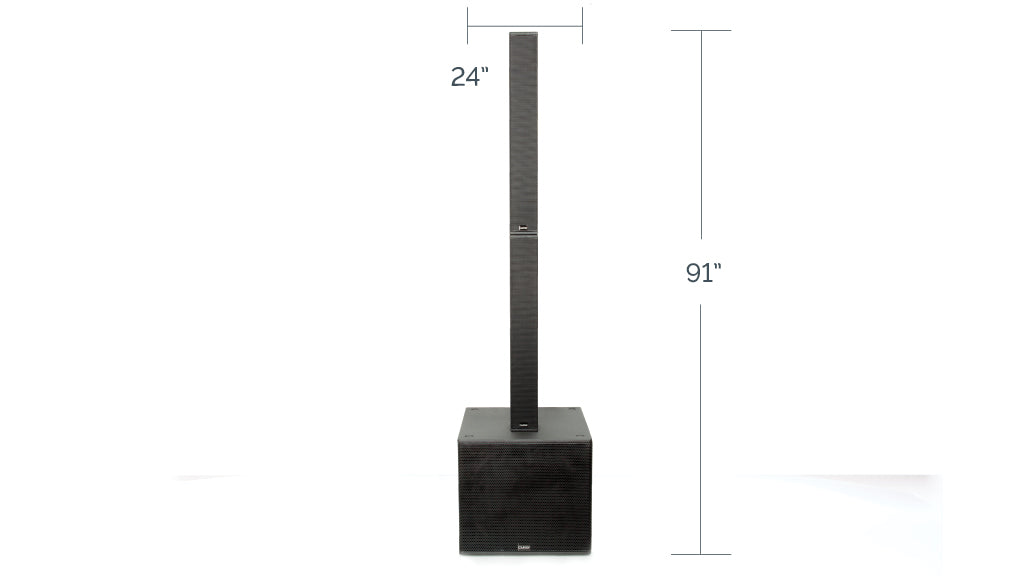

TRC600A 8000W Powered Column Array System

$6,099.00 $9,999.00

 TRC600A User Manual

• Overview
• Specifications
• Reviews/Video

• Carvin Audio’s TRC SYSTEMS are our finest sound systems, offering high SPL levels that project up to 400’ with exceptional clarity. Unsurpassed high frequency and deep bass response will place the audience in the center of your performance.

  System Includes:
  » 4 TRx3118A 2000W Powered Subs
  » 2 TRx3900 Column Array Loudspeaker Pairs
  » 2 SS7 Connecting Pole Sets
  » 4 Twist Lock 12ga. Speaker Cables
  » 2 CB3900 Carrying Bags for Column Array Loudspeakers

  Features:
  »DSP processing by Analog Devices™
  »Expandable
  »Tour ready
  »Portable
  »Multi-ply hardwood enclosures
  »DuraTec™ water resistant finish
  »Premium transducers

  System Applications:
  »For large venues
  »Rock Bands
  »DJ shows
  »Conferences
  »Modular design for expansion

  TRx3900 HF Column Array:
  »9 3.5” drivers deliver exceptional levels from a single enclosure
  »Projection up to 400’ from 2 TRx3900 stacked
  »CDD™ Constant Delivery Dispersion technology eliminates front row blare & feedback
  »Wide 120º horizontal coverage
  »Requires fewer loudspeakers for the same coverage

  TRx3118A Active Subwoofer:
  »Bass Reflex design delivers a loud 131dB
  »High-efficient, high power TS18C woofer
  »2000w CLASS D amplifiers for sub & tops
  »High current, lightweight switching power supply
  »DSP processing by Analog Devices™




• TRX3118A SUBWOOFER:
  The TRx3118A is an active compact subwoofer that extends the low frequency to 37 Hz providing exceptional impact for any sound system. The high excursion TS18C 18-inch cone and 4-inch (100mm) voice coil produces tremendous force from the direct radiating, ported bass reflex design. The high 131 SPL capacity and powerful bass projection make this an ideal subwoofer for portable live sound applications and installations. Simple setups are done through 4 presets for LIVE, PLAYBACK, SPEECH and SUB ONLY. Everything is managed by the Analog Devices™ DSP to maintain high headroom, distortion-free performances. The amplifiers deliver 2000W, 1000W for the 18-inch sub and 1000W for the HF SATELLITE output for the TRx3900 column arrays through a twist-lock connector. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™, a polyurethane outer finish, provides UV and moisture protection. The TS18C woofer is protected by the heavy-duty powder coated perforated steel grill and protective cloth backing. Recessed handles are center balanced for easy deployment.

  TRx3118A SPECIFICATIONS:
  »System Type: 18-inch Subwoofer, Active Bass Reflex
  »Frequency Response: 37Hz - 200Hz
  »Power : 2000W Program (1000W subwoofer, 1000W HF)
  »DSP Processing: Live,Playback,Speech,Sub Only
  »Coverage Pattern: Omni
  »Maximum SPL: 131dB
  »LF: TS18C-4 18-Inch Woofer 4Ω,100mm (4-inch) Voice Coil
  »HF Satellite Output: 4Ω
  »Enclosure: Premium Multi-Ply Hardwood
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with acoustic cloth
  »Transport: 2 Recessed handles
  »Pole Mount: Standard 1.38-inch pole mount cup
  »Suspension points: None
  »AC Input: 115V-230V (50-60Hz)
  »Net Weight: 75lbs (34kg)
  »Dimensions: 23.6”W x 23”D x 21.2”H

  TRX3900 COLUMN ARRAY:

  The TRx3900 Column Array is a high output, easy to carry sound reinforcement loudspeaker providing enhanced coverage with superb fidelity. Exclusively equipped with 9 Carvin Audio 3.5-inch transducers, it’s designed for all genres of music and venues, ranging from small to large events. The Constant Delivery Dispersion “CDD™” projects to the rear of the venue while averaging levels up front and its wide 120º dispersion covers larger audiences. The 10º vertical dispersion substantially minimizes feedback in reverberant environments. The TRx3900 power is supplied by the TRx3118A subwoofer delivering 1000W, 500W into each TRx3900, or by your own amplifier system. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™ finish, a polyurethane outer skin, provides UV and moisture protection. Projecting far into your audience, the TRx3900 delivers the most pleasant, unfatigued listening experience, and offers high intelligibility from a compact column.

  TRx 3900 SPECIFICATIONS:
  »System Design: Column Array, Passive
  »CDD™Constant Delivery Dispersion
  »Frequency Response: 110Hz – 18kHz
  »Crossover Required: 110Hz 24dB/Oct HI PASS
  »Maximum SPL: 126dB continuous, 129dB peak
  »Power Handling: 200W continuous, 800W peak
  »Impedance: 8Ω
  »Connectors: 2 Two Conductor Twist Lock, IN-THRU



  TRANSDUCERS:
  »Model:PS3.5-8
  »Transducers: 9 x 3.5-Inch



  ENCLOSURE:
  »Horizontal/Vertical Dispersion: 120°/10°
  »Construction Material: Multi-Ply Hardwood
  »Finish: DuraTec™ polyurethane
  »Grill: Black powder coated steel with acoustic cloth backing
  »Enclosure Protection: Moisture/UV
  »Transport: 1 recessed handle
  »Standard Pole Mount: 1 3/8-in cup
  »Dimensions (W x D x H): 5”W x 5.5”D x 35”H
  »Weight: 23 lbs.

• Hardy K. - WA

  Hi Bruce. I received the expedited shipment. The variable gain on both subs and line arrays made dialing it in much easier than my previous visit to San Diego showroom to hear the preceding models with X Drive. I think I will be much happier with the current set up. I am surprised at how efficient the TRA400 system is. I had to reduce the output from the PC music source to about half and then set the speaker gains to about 9 o’clock on the line arrays and about 10:30 on the sub gains. I was in the RV bay of my 5 car garage and was blown away at how loud it was with the input gain so low. I also experimented with bypassing the Eq and bypassing my Peavey Kosmos. I even tried unhooking the upper line arrays. It still sound good. The stack is near 8 foot tall but without the top 3900s was only about 5 foot tall and quieter and below the height of most adult ears. I bet it would likely work well with another 12 to 18 inches in the lower pole. All that to say these speakers have exceeded expectations and will require me to really watch the gain so as not to get to loud. I usually set up a pair of speakers on both ends facing each other for a four way sound. Now I seriously doubt that I’ll need to set up any more than the just the TRA400. Well Done Carvin Audio, Well Done Indeed! Kind regards, Hardy K.


  “We purchased four of the TRx column array speakers to use with our TRx2118 subs... We were all amazed with the tone, clarity, definition, coverage & volume produced from these compact enclosures. Everything about these cabs is stellar. The vocals & instruments are clean & detailed. Coverage & dispersion from front to back, left to right of the venue is even & clear - virtually eliminated hot spots & dead spots.They have far exceeded our expectations and have made a huge improvement in the sound quality of our band.” – John Hudson Boston, MA

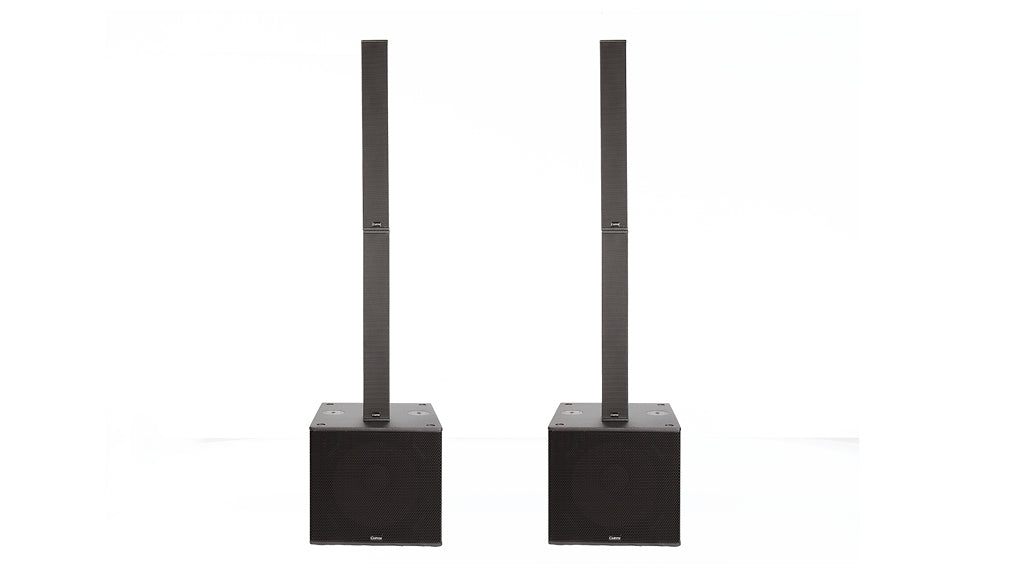

TRC400A 4000W Powered Column Array System

$4,099.00 $6,699.00

 TRC400A User Manual

• Overview
• Specifications
• Reviews/Video

• Carvin Audio’s TRC SYSTEMS are our finest sound systems, offering high SPL levels that project up to 400’ with exceptional clarity. Unsurpassed high frequency and deep bass response will place the audience in the center of your performance.

  System Includes:
  » 2 TRx3118A 2000W Powered Subs
  » 2 TRx3900 Column Array Loudspeaker Pairs
  » 2 SS7 Connecting Pole Sets
  » 4 Twist Lock 12ga. Speaker Cables
  » 2 CB3900 Carrying Bags for Column Array Loudspeakers

  Features:
  »DSP processing by Analog Devices™
  »Expandable
  »Tour ready
  »Portable
  »Multi-ply hardwood enclosures
  »DuraTec™ water resistant finish
  »Premium transducers

  System Applications:
  »For large venues
  »Rock Bands
  »DJ shows
  »Conferences
  »Modular design for expansion

  TRx3900 HF Column Array:
  »9 3.5” drivers deliver exceptional levels from a single enclosure
  »Projection up to 400’ from 2 TRx3900 stacked
  »CDD™ Constant Delivery Dispersion technology eliminates front row blare & feedback
  »Wide 120º horizontal coverage
  »Requires fewer loudspeakers for the same coverage

  TRx3118A Active Subwoofer:
  »Bass Reflex design delivers a loud 131dB
  »High-efficient, high power TS18C woofer
  »2000w CLASS D amplifiers for sub & tops
  »High current, lightweight switching power supply
  »DSP processing by Analog Devices™




• TRX3118A SUBWOOFER:
  The TRx3118A is an active compact subwoofer that extends the low frequency to 37 Hz providing exceptional impact for any sound system. The high excursion TS18C 18-inch cone and 4-inch (100mm) voice coil produces tremendous force from the direct radiating, ported bass reflex design. The high 131 SPL capacity and powerful bass projection make this an ideal subwoofer for portable live sound applications and installations. Simple setups are done through 4 presets for LIVE, PLAYBACK, SPEECH and SUB ONLY. Everything is managed by the Analog Devices™ DSP to maintain high headroom, distortion-free performances. The amplifiers deliver 2000W, 1000W for the 18-inch sub and 1000W for the HF SATELLITE output for the TRx3900 column arrays through a twist-lock connector. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™, a polyurethane outer finish, provides UV and moisture protection. The TS18C woofer is protected by the heavy-duty powder coated perforated steel grill and protective cloth backing. Recessed handles are center balanced for easy deployment.

  TRx3118A SPECIFICATIONS:
  »System Type: 18-inch Subwoofer, Active Bass Reflex
  »Frequency Response: 37Hz - 200Hz
  »Power : 2000W Program (1000W subwoofer, 1000W HF)
  »DSP Processing: Live,Playback,Speech,Sub Only
  »Coverage Pattern: Omni
  »Maximum SPL: 131dB
  »LF: TS18C-4 18-Inch Woofer 4Ω,100mm (4-inch) Voice Coil
  »HF Satellite Output: 4Ω
  »Enclosure: Premium Multi-Ply Hardwood
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with acoustic cloth
  »Transport: 2 Recessed handles
  »Pole Mount: Standard 1.38-inch pole mount cup
  »Suspension points: None
  »AC Input: 115V-230V (50-60Hz)
  »Net Weight: 75lbs (34kg)
  »Dimensions: 23.6”W x 23”D x 21.2”H

  TRX3900 COLUMN ARRAY:

  The TRx3900 Column Array is a high output, easy to carry sound reinforcement loudspeaker providing enhanced coverage with superb fidelity. Exclusively equipped with 9 Carvin Audio 3.5-inch transducers, it’s designed for all genres of music and venues, ranging from small to large events. The Constant Delivery Dispersion “CDD™” projects to the rear of the venue while averaging levels up front and its wide 120º dispersion covers larger audiences. The 10º vertical dispersion substantially minimizes feedback in reverberant environments. The TRx3900 power is supplied by the TRx3118A subwoofer delivering 1000W, 500W into each TRx3900, or by your own amplifier system. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™ finish, a polyurethane outer skin, provides UV and moisture protection. Projecting far into your audience, the TRx3900 delivers the most pleasant, unfatigued listening experience, and offers high intelligibility from a compact column.

  TRx 3900 SPECIFICATIONS:
  »System Design: Column Array, Passive
  »CDD™Constant Delivery Dispersion
  »Frequency Response: 110Hz – 18kHz
  »Crossover Required: 110Hz 24dB/Oct HI PASS
  »Maximum SPL: 126dB continuous, 129dB peak
  »Power Handling: 200W continuous, 800W peak
  »Impedance: 8Ω
  »Connectors: 2 Two Conductor Twist Lock, IN-THRU



  TRANSDUCERS:
  »Model: PS3.5-8
  »Transducers: 9 x 3.5-Inch



  ENCLOSURE:
  »Horizontal/Vertical Dispersion: 120°/10°
  »Construction Material: Multi-Ply Hardwood
  »Finish: DuraTec™ polyurethane
  »Grill: Black powder coated steel with acoustic cloth backing
  »Enclosure Protection: Moisture/UV
  »Transport: 1 recessed handle
  »Standard Pole Mount: 1 3/8-in cup
  »Dimensions (W x D x H): 5”W x 5.5”D x 35”H
  »Weight: 23 lbs.

• Hardy K. - WA

  Hi Bruce. I received the expedited shipment. The variable gain on both subs and line arrays made dialing it in much easier than my previous visit to San Diego showroom to hear the preceding models with X Drive. I think I will be much happier with the current set up. I am surprised at how efficient the TRA400 system is. I had to reduce the output from the PC music source to about half and then set the speaker gains to about 9 o’clock on the line arrays and about 10:30 on the sub gains. I was in the RV bay of my 5 car garage and was blown away at how loud it was with the input gain so low. I also experimented with bypassing the Eq and bypassing my Peavey Kosmos. I even tried unhooking the upper line arrays. It still sound good. The stack is near 8 foot tall but without the top 3900s was only about 5 foot tall and quieter and below the height of most adult ears. I bet it would likely work well with another 12 to 18 inches in the lower pole. All that to say these speakers have exceeded expectations and will require me to really watch the gain so as not to get to loud. I usually set up a pair of speakers on both ends facing each other for a four way sound. Now I seriously doubt that I’ll need to set up any more than the just the TRA400. Well Done Carvin Audio, Well Done Indeed! Kind regards, Hardy K.


  “We purchased four of the TRx column array speakers to use with our TRx2118 subs... We were all amazed with the tone, clarity, definition, coverage & volume produced from these compact enclosures. Everything about these cabs is stellar. The vocals & instruments are clean & detailed. Coverage & dispersion from front to back, left to right of the venue is even & clear - virtually eliminated hot spots & dead spots.They have far exceeded our expectations and have made a huge improvement in the sound quality of our band.” – John Hudson Boston, MA

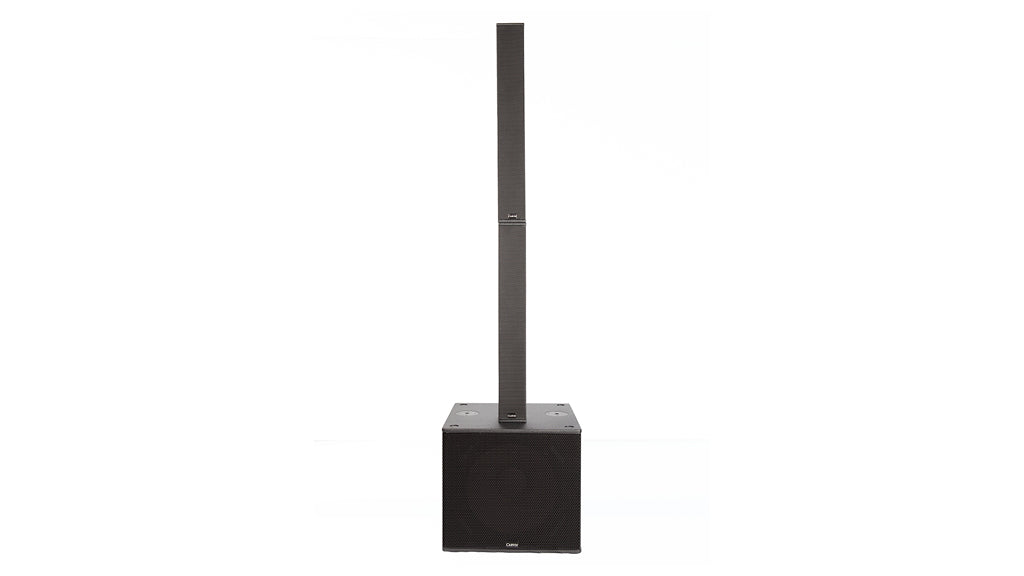

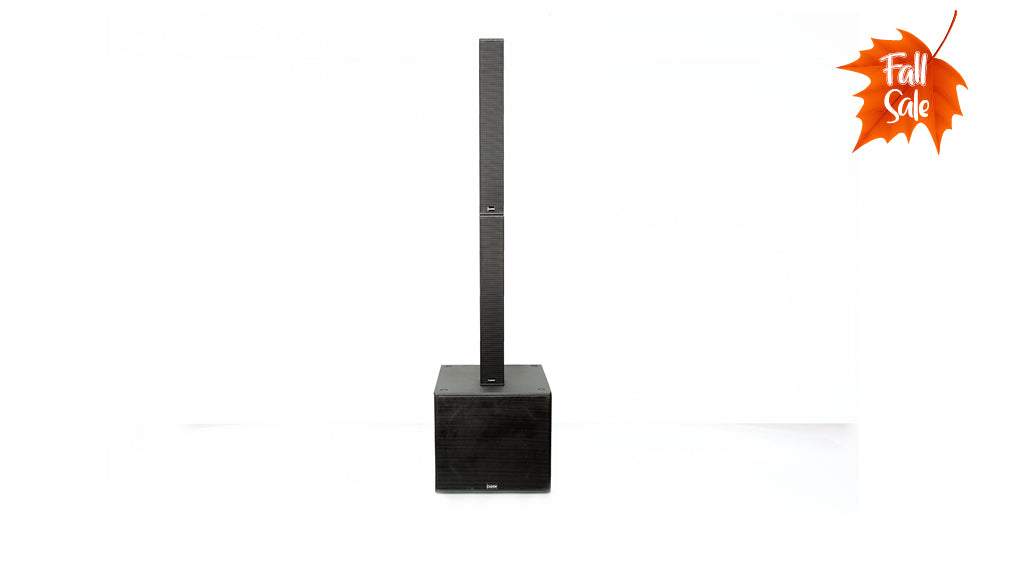

TRC200A 2000W Powered Column Array System

$2,099.00 $3,349.00

 TRC200A User Manual

• Overview
• Specifications
• Reviews/Video

• Carvin Audio’s TRC SYSTEMS are our finest sound systems, offering high SPL levels that project up to 400’ with exceptional clarity. Unsurpassed high frequency and deep bass response will place the audience in the center of your performance.

  System Includes:
  » 1 TRx3118A 2000W Powered Sub
  » 1 TRx3900 Column Array Loudspeaker Pair
  » 1 SS7 Connecting Pole Set
  » 2 Twist Lock 12ga. Speaker Cables
  » 1 CB3900 carrying bag for column array loudspeakers

  Features:
  »DSP processing by Analog Devices™
  »Expandable
  »Tour ready
  »Portable
  »Multi-ply hardwood enclosures
  »DuraTec™ water resistant finish
  »Premium transducers

  System Applications:
  »For large venues
  »Rock Bands
  »DJ shows
  »Conferences
  »Modular design for expansion

  TRx3900 HF Column Array:
  »9 3.5” drivers deliver exceptional levels from a single enclosure
  »Projection up to 400’ from 2 TRx3900 stacked
  »CDD™ Constant Delivery Dispersion technology eliminates front row blare & feedback
  »Wide 120º horizontal coverage
  »Requires fewer loudspeakers for the same coverage

  TRx3118A Active Subwoofer:
  »Bass Reflex design delivers a loud 131dB
  »High-efficient, high power TS18C woofer
  »2000w CLASS D amplifiers for sub & tops
  »High current, lightweight switching power supply
  »DSP processing by Analog Devices™




• TRX3118A SUBWOOFER:
  The TRx3118A is an active compact subwoofer that extends the low frequency to 37 Hz providing exceptional impact for any sound system. The high excursion TS18C 18-inch cone and 4-inch (100mm) voice coil produces tremendous force from the direct radiating, ported bass reflex design. The high 131 SPL capacity and powerful bass projection make this an ideal subwoofer for portable live sound applications and installations. Simple setups are done through 4 presets for LIVE, PLAYBACK, SPEECH and SUB ONLY. Everything is managed by the Analog Devices™ DSP to maintain high headroom, distortion-free performances. The amplifiers deliver 2000W, 1000W for the 18-inch sub and 1000W for the HF SATELLITE output for the TRx3900 column arrays through a twist-lock connector. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™, a polyurethane outer finish, provides UV and moisture protection. The TS18C woofer is protected by the heavy-duty powder coated perforated steel grill and protective cloth backing. Recessed handles are center balanced for easy deployment.

  TRx3118A SPECIFICATIONS:
  »System Type: 18-inch Subwoofer, Active Bass Reflex
  »Frequency Response: 37Hz - 200Hz
  »Power : 2000W Program (1000W subwoofer, 1000W HF)
  »DSP Processing: Live,Playback,Speech,Sub Only
  »Coverage Pattern: Omni
  »Maximum SPL: 131dB
  »LF: TS18C-4 18-Inch Woofer 4Ω,100mm (4-inch) Voice Coil
  »HF Satellite Output: 4Ω
  »Enclosure: Premium Multi-Ply Hardwood
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with acoustic cloth
  »Transport: 2 Recessed handles
  »Pole Mount: Standard 1.38-inch pole mount cup
  »Suspension points: None
  »AC Input: 115V-230V (50-60Hz)
  »Net Weight: 75lbs (34kg)
  »Dimensions: 23.6”W x 23”D x 21.2”H

  TRX3900 COLUMN ARRAY:

  The TRx3900 Column Array is a high output, easy to carry sound reinforcement loudspeaker providing enhanced coverage with superb fidelity. Exclusively equipped with 9 Carvin Audio 3.5-inch transducers, it’s designed for all genres of music and venues, ranging from small to large events. The Constant Delivery Dispersion “CDD™” projects to the rear of the venue while averaging levels up front and its wide 120º dispersion covers larger audiences. The 10º vertical dispersion substantially minimizes feedback in reverberant environments. The TRx3900 power is supplied by the TRx3118A subwoofer delivering 1000W, 500W into each TRx3900, or by your own amplifier system. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™ finish, a polyurethane outer skin, provides UV and moisture protection. Projecting far into your audience, the TRx3900 delivers the most pleasant, unfatigued listening experience, and offers high intelligibility from a compact column.

  TRx 3900 SPECIFICATIONS:
  »System Design: Column Array, Passive
  »CDD™Constant Delivery Dispersion
  »Frequency Response: 110Hz – 18kHz
  »Crossover Required: 110Hz 24dB/Oct HI PASS
  »Maximum SPL: 126dB continuous, 129dB peak
  »Power Handling: 200W continuous, 800W peak
  »Impedance: 8Ω
  »Connectors: 2 Two Conductor Twist Lock, IN-THRU



  TRANSDUCERS:
  »Model: PS3.5-8
  »Transducers: 9 x 3.5-Inch



  ENCLOSURE:
  »Horizontal/Vertical Dispersion: 120°/10°
  »Construction Material: Multi-Ply Hardwood
  »Finish: DuraTec™ polyurethane
  »Grill: Black powder coated steel with acoustic cloth backing
  »Enclosure Protection: Moisture/UV
  »Transport: 1 recessed handle
  »Standard Pole Mount: 1 3/8-in cup
  »Dimensions (W x D x H): 5”W x 5.5”D x 35”H
  »Weight: 23 lbs.

• Hardy K. - WA

  Hi Bruce. I received the expedited shipment. The variable gain on both subs and line arrays made dialing it in much easier than my previous visit to San Diego showroom to hear the preceding models with X Drive. I think I will be much happier with the current set up. I am surprised at how efficient the TRA400 system is. I had to reduce the output from the PC music source to about half and then set the speaker gains to about 9 o’clock on the line arrays and about 10:30 on the sub gains. I was in the RV bay of my 5 car garage and was blown away at how loud it was with the input gain so low. I also experimented with bypassing the Eq and bypassing my Peavey Kosmos. I even tried unhooking the upper line arrays. It still sound good. The stack is near 8 foot tall but without the top 3900s was only about 5 foot tall and quieter and below the height of most adult ears. I bet it would likely work well with another 12 to 18 inches in the lower pole. All that to say these speakers have exceeded expectations and will require me to really watch the gain so as not to get to loud. I usually set up a pair of speakers on both ends facing each other for a four way sound. Now I seriously doubt that I’ll need to set up any more than the just the TRA400. Well Done Carvin Audio, Well Done Indeed! Kind regards, Hardy K.


  “We purchased four of the TRx column array speakers to use with our TRx2118 subs... We were all amazed with the tone, clarity, definition, coverage & volume produced from these compact enclosures. Everything about these cabs is stellar. The vocals & instruments are clean & detailed. Coverage & dispersion from front to back, left to right of the venue is even & clear - virtually eliminated hot spots & dead spots.They have far exceeded our expectations and have made a huge improvement in the sound quality of our band.” – John Hudson Boston, MA

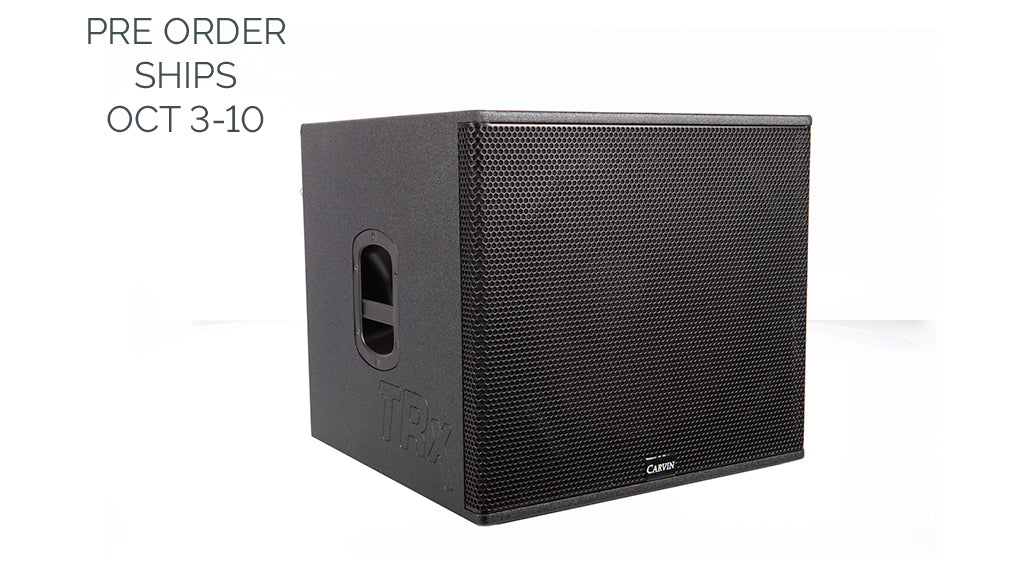

TRx3118A 2000W Active 18-Inch Subwoofer

$1,049.00 $1,599.00

 TRx3118A User Manual

• Overview
• Specifications
• Video/Reviews

• TRx3118A Features:
  »Active 18” Subwoofer
  »High Output Bass Reflex Design
  »Premium Carvin Audio TS18C Transducer
  »Long-Excursion 4-Inch (100mm) Voice Coil
  »High Headroom Amplification
  »2000W (1000W internal & 1000W HF satellite )
  »Includes 1 Powercon AC Cable
  »Includes 1 12ga Twist Lock Speaker Cable
  »Optional CV3118A Cover

  The TRx3118A is an active compact subwoofer that extends the low frequency to 37 Hz providing exceptional impact for any sound system. The high excursion TS18C 18-inch cone and 4-inch (100mm) voice coil produces tremendous force from the direct radiating, ported bass reflex design. The high 131 SPL capacity and powerful bass projection make this an ideal subwoofer for portable live sound applications and installations. Simple setups are done through 4 presets for LIVE, PLAYBACK, SPEECH and SUB ONLY. Everything is managed by the Analog Devices™ DSP to maintain high headroom, distortion-free performances. The amplifiers deliver 2000W, 1000W for the 18-inch sub and 1000W for the HF SATELLITE output for the TRx3900 column arrays through a twist-lock connector. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™, a polyurethane outer skin, provides UV and moisture protection. The TS18C woofer is guarded by the heavy-duty powder coated perforated steel grill and protective cloth backing. Recessed handles are center balanced for easy deployment.

• TRx3118A Specifications:
  »System Type: 18-inch Subwoofer, Active Bass Reflex
  »Frequency Response: 37Hz - 200Hz
  »Power : 2000W Program (1000W subwoofer, 1000W HF)
  »Coverage Pattern: Omni
  »Maximum SPL: 131dB
  »LF: TS18C-8 18-Inch Woofer 4Ω
  »HF Satellite Output: 4Ω
  »Enclosure: Premium Multi-Ply Hardwood
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with cloth backing
  »Transport: 2 Recessed handles
  »Pole Mount: Standard 1.38-inch pole mount cup
  »Suspension points: No
  »AC Mains Input: 115V-230V (50-60Hz)
  »Net Weight: 75lbs (34kg)
  »Dimensions: 23.6”W x 23”D x 21.2”H

• Coming Soon

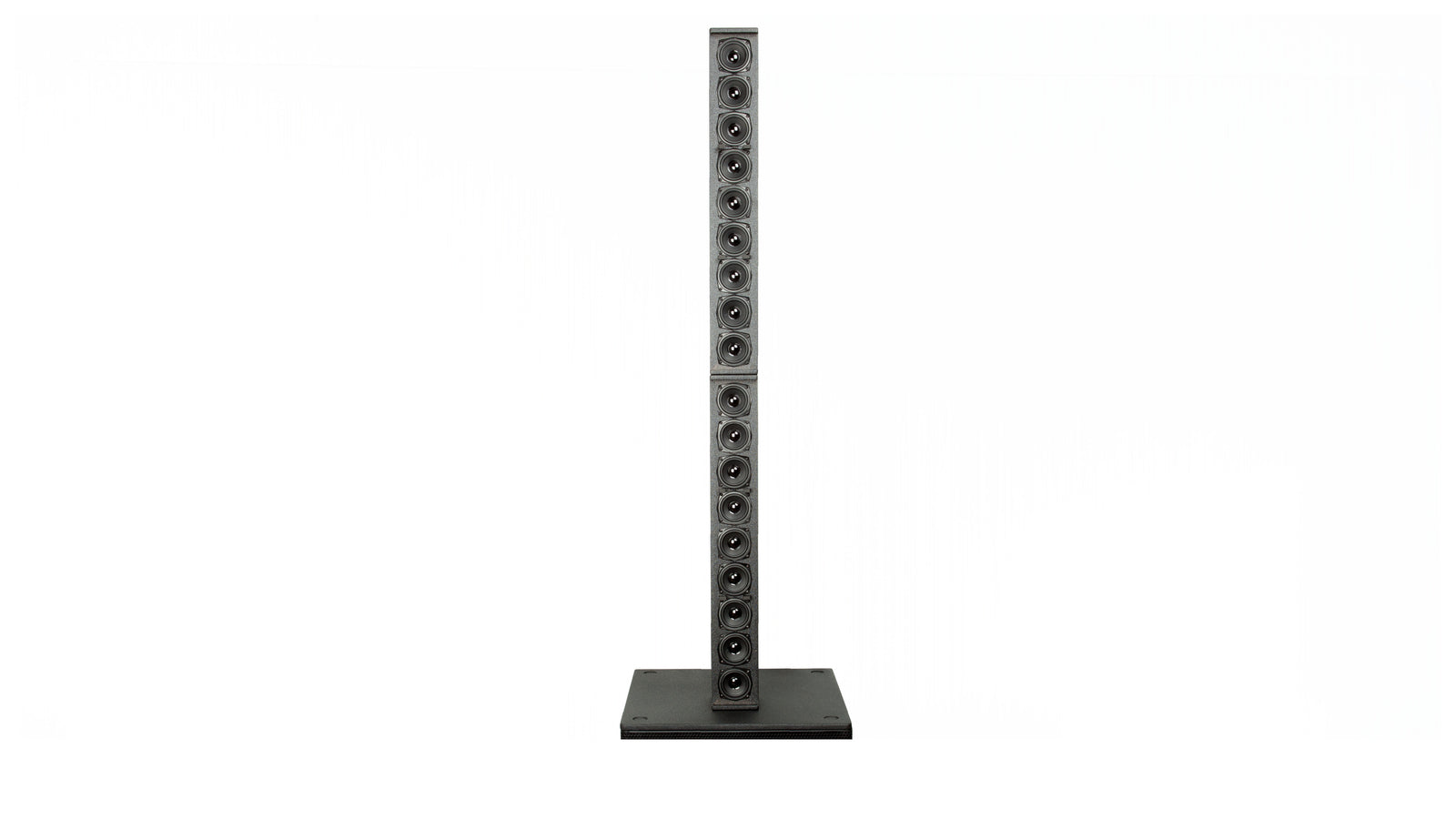

TRx3900 3.5-Inch Column Array Loudspeaker Pair

$1,098.00 $1,598.00

 TRx3900 User Manual

• Overview
• Specifications
• Video/Reviews

• TRx3900-Pair Features:
  »Two column array loudspeakers
  »High output column array
  »Premium Carvin Audio 3.5-Inch transducers
  »CDD™ Constant Delivery Dispersion
  »Wide 120º Horizontal Coverage
  »Lightweight – easy to carry, 23 lbs. each
  »Includes one 12ga twist lock connecting cable
  »Includes SS7 connecting pole set
  »Optional Carrying Bag - CB3900

  The TRx3900 Column Array is a high output, easy to carry sound reinforcement loudspeaker providing enhanced coverage with superb fidelity. Exclusively equipped with 9 Carvin Audio 3.5-inch transducers, it’s designed for all genres of music and venues, ranging from small to large events. The Constant Delivery Dispersion “CDD™” projects to the rear of the venue while averaging levels up front and its wide 120º dispersion covers larger audiences. The 10º vertical dispersion substantially minimizes feedback in reverberant environments. The TRx3900 power is supplied by the TRx3118A subwoofer delivering 1000W, 500W into each TRx3900, or by your own amplifier system. The tour-grade enclosure features multi-ply hardwood for the integrity of the cabinet while the DuraTec™ finish, a polyurethane outer skin, provides UV and moisture protection. Projecting far into your audience, the TRx3900 delivers the most pleasant, unfatigued listening experience, and offers high intelligibility from a compact column




• TRx3900 Specifications:







  CONFIGURATION
  »System Design: Column Array, Passive
  »CDD™Constant Delivery Dispersion
  »Frequency Response: 110Hz – 18kHz
  »Crossover Required: 110Hz 24dB/Oct HI PASS
  »Maximum SPL: 126dB continuous, 129dB peak
  »Power Handling: 200W continuous, 800W peak
  »Impedance: 8Ω
  »Connectors: 2 2-Conductor Twist Lock, IN-THRU







  TRANSDUCERS
  »Manufacture: CARVIN AUDIO - PS3.5-8
  »Transducers: 9 x 3.5-Inch



  ENCLOSURE
  »Horizontal/Vertical Dispersion: 120°/10°
  »Construction Material: Multi-Ply Hardwood
  »Finish: DuraTec™ polyurethane
  »Grill: Black powder coated steel with cloth backing
  »Enclosure Protection: Moisture/UV
  »Transport: 1 recessed handle
  »Standard Pole Mount: 1 3/8-in cup
  »Dimensions (W x D x H): 5”W x 5.5”D x 35”H
  »Weight: 23 lbs. each column




• Coming Soon



SCx15A 1000W Active 15-Inch Main/Monitor with DSP

Sold Out $389.00

 SCx15A User Manual

• Overview
• Specs

• The SCx15A is a 15-inch 2-way active multi-purpose enclosure for front of house mains, stage monitors, or DJ sound. The bi-amp 1000 watt active system delivers clear high SPL output with internal limiting to protect the drivers for years of service. This is an exceptional sounding enclosure for most applications requiring extended bass from a compact design.



• »System Type: 15-inch 2-way, Active Bass Reflex
  »Frequency Response: 54Hz-20kHz (-10dB) 62Hz-18 kHz (-3dB)
  »Power: 1000W Program
  »Coverage Pattern: Main 90x60 Monitor 60x90
  »Sensitivity (1w/1m): 98dB
  »Maximum SPL: 130dB
  »Maximum Input Signal: +12dBu
  »LF: 15-Inch Woofer 4 Ohms
  »HF: 1.74-Inch 8 Ohms
  »Enclosure: Premium Poplar
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with cloth backing
  »Transport: 2 Recessed handles
  »Pole Mount: 1.38-inch pole mount cup
  »Suspension Points: 6 points using M8-1.25 x 30mm
  »AC Mains Input: 115V-230V (50-60Hz)
  »Net Weight: 42.5lbs
  »Dimensions: 17”W x 14.75”D x 26.25”H

• Tab 3 content
  Need a new paragraph? Try using Shift + Enter



SCx12A 1000W Active 12-Inch Main/Monitor with DSP

$359.00 $699.00

 SCx12A User Manual

• Overview
• Specs

• The SCx12A is a 12-inch 2-way active enclosure perfect
  for smaller main loudspeaker applications and great
  for vocal stage monitors. The bi-amp 1000 watt active
  system delivers clear high SPL output with internal
  limiting to protect the drivers for years of service.



• »System Type: 12-inch 2-way, Active Bass Reflex
  »Frequency Response: 60Hz-20kHz (-10dB) 70Hz-18 kHz (-3dB)
  »Power: 1000W Program
  »Coverage Pattern: Main 90x60 Monitor 60x90
  »Sensitivity (1w/1m): 96dB
  »Maximum SPL: 126dB
  »Maximum Input Signal: +12dBu
  »LF: 12-Inch Woofer 4 Ohms
  »HF: 1.74-Inch 8 Ohms
  »Enclosure: Premium Poplar
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with cloth backing
  »Transport: 2 Recessed handles
  »Pole Mount: 1.38-inch pole mount cup
  »Suspension Points: 6 points using M8-1.25 x 30mm
  »AC Mains Input: 115V-230V (50-60Hz)
  »Net Weight: 35.5lbs
  »Dimensions: 14”W x 14”D x 22”H

• Tab 3 content
  Need a new paragraph? Try using Shift + Enter

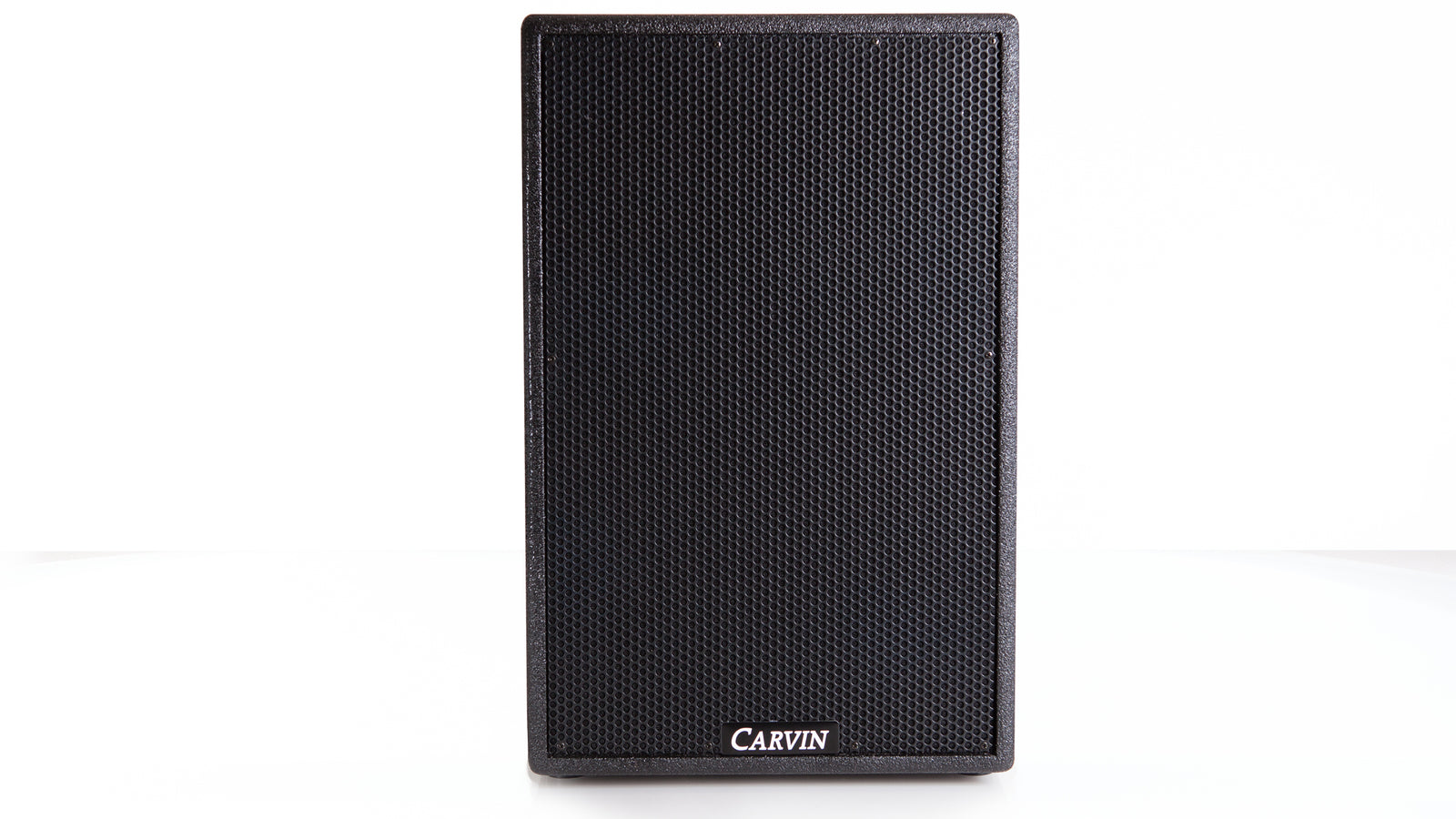

SCxSYS12 - 2000W 12-Inch Loudspeaker Sound System Package

$699.00 $1,389.00

 SCxSYS12 User Manual

• Package Includes:
• Specifications:
• Video/Reviews:

• Package Includes:
  2 - SCx12A 1000W Active 12-Inch Main/Monitor

  The SCxSYS12 2000 watt system is an excellent sound system for small venues and houses of worship. The system package includes a pair of SCx12A 12-inch 2-way 1000 watt active enclosures. The bi-amp 1000 watt active system delivers clear high SPL output with while maintaining a small footprint.



• SCx12A
  »System Type: 12-inch 2-way, Active Bass Reflex
  »Frequency Response: 60Hz-20kHz (-10dB)
  »Power: 1000W Program
  »Coverage Pattern: Main 90x60 Monitor 60x90
  »Sensitivity (1w/1m): 96dB
  »Maximum SPL: 126dB
  »Maximum Input Signal: +12dBu
  »LF: 12-Inch Woofer 4 Ohms
  »HF: 1.74-Inch 8 Ohms
  »Enclosure: Premium Poplar
  »Finish: Black DuraTec™
  »Grill: Black powder coated 16-ga steel with cloth backing
  »Transport: 2 Recessed handles
  »Pole Mount: 1.38-inch pole mount cup
  »Suspension Points: 6 points using M8-1.25 x 30mm
  »AC Mains Input: 115V-230V (50-60Hz)
  »Net Weight: 35.5lbs
  »Dimensions: 14”W x 14”D x 22”H



•



QX15A 1000W Active 15-Inch Main/Monitor with DSP

$299.00 $699.00

 QX15A User Manual

• Overview
• Specifications
• Video/Reviews

• The QX15A is a 15-inch 2-way active multi-purpose
  enclosure designed for use as mains, stage monitors, or
  for DJ sound. The bi-amp 1000 watt active system
  delivers clear, high SPL output with internal limiting
  to protect the drivers for years of service. Stream audio wirelessly from your phone or tablet using bluetooth. Pair a second QX15A using bluetooth for a wireless stereo setup. The rugged
  water resistant enclosure is designed to deliver crystal
  clear sound in small to medium size venues. The high
  power drivers feature large magnet structures for
  high efficiency, producing more output per watt. The
  enclosure is made of molded virgin polypropylene
  that is resistant to cracking. The drivers are protected by
  a heavy gauge steel powder coated grill with cloth
  backing for superior protection and style.



• QX15A
  System Type: 15-inch 2-way, Active Bass Reflex
  » Frequency Response: 54Hz-18kHz (-10dB) 62Hz-16kHz (-3dB)
  » Power: 1000W Program
  » Coverage Pattern: Main 90x60 Monitor 60x90
  » Sensitivity (1w/1m): 98dB
  » Maximum SPL: 130dB
  » Maximum Input Signal: +12dBu
  » LF: 15-Inch Woofer 4 Ohms
  » HF: 1.74-Inch 8 Ohms
  » Enclosure: Virgin polypropylene
  » Color: Black
  » Grill: Black powder coated 16-ga steel with cloth backing
  » Transport: 2 Recessed handles
  » Pole Mount: 1.38-inch pole mount cup with thumb screw
  » Suspension Points: 3 points using M8-1.25 x 30mm. The bottom fly points are 180mm center to center.
  » AC Mains Input: 115V-230V (50-60Hz)
  » Net Weight: 42lbs
  » Dimensions: 17.75”W x 15.5”D x 27.5”H



• "I love this Carvin QXSYS15A sound system. Sounds great! I’m sold on the sound and quality. My goal by Christmas is to add the TRC400A." David C. Augusta, GA



QXSYS15A - 2000W 15-Inch Active Loudspeaker Sound System Package

$599.00 $1,389.00

 QXSYS15A User Manual

• Overview
• Specifications
• Video/Reviews

• Package Includes:
  2 - QX15A 15-Inch 1000W Active Loudspeakers

  The QXSYS15A 2000 watt system with Bluetooth is an excellent sound system for medium size clubs, schools and houses of worship. The system package includes a pair of QX15A 15-inch 2-way 1000 watt active enclosures with Bluetooth. The bi-amp 1000 watt active system delivers clear, high SPL output with internal limiting
  to protect the drivers for years of service. Stream audio wirelessly from your phone or tablet using bluetooth. Pair a second QX15A using bluetooth for a wireless stereo setup. The rugged
  water resistant enclosure is designed to deliver crystal
  clear sound in small to medium size venues. The high
  power drivers feature large magnet structures for
  high efficiency, producing more output per watt. The
  enclosure is made of molded virgin polypropylene
  that is resistant to cracking. The drivers are protected by
  a heavy gauge steel powder coated grill with cloth
  backing for superior protection and style.









• QX15A
  System Type: 15-inch 2-way, Active Bass Reflex
  » Frequency Response: 54Hz-18kHz (-10dB)
  » Power: 1000W Program
  » Coverage Pattern: Main 90x60 Monitor 60x90
  » Sensitivity (1w/1m): 98dB
  » Maximum SPL: 130dB
  » Maximum Input Signal: +12dBu
  » LF: 15-Inch Woofer 4 Ohms
  » HF: 1.74-Inch 8 Ohms
  » Enclosure: Virgin polypropylene
  » Color: Black
  » Grill: Black powder coated 16-ga steel with cloth backing
  » Transport: 2 Recessed handles
  » Pole Mount: 1.38-inch pole mount cup with thumb screw
  » Suspension Points: 3 points using M8-1.25 x 30mm. The bottom fly points are 180mm center to center.
  » AC Mains Input: 115V-230V (50-60Hz)
  » Net Weight: 42lbs
  » Dimensions: 17.75”W x 15.5”D x 27.5”H



• "I love this Carvin QXSYS15A sound system. Sounds great! I’m sold on the sound and quality. My goal by Christmas is to add the TRC400A." David C. Augusta, GA





QX5A Active 3 Channel Near Field Monitor

Sold Out $159.00

 QX5A User Manual

• Overview
• Specifications
• Video/Reviews

• Package Includes:
  1- QX5A Active Monitor with 3 Channel Mixer
  1 -Top Mount Mic Extension Pole with 3/8-16 and 5/8 adapters
  1 -Microphone Stand Mount with 3/8-16 threaded adaptor

  The QX5A is designed to function as both a powered near field monitor and as a three channel mixer/monitor with an external output to send to a QX15A or SCx Series powered main speaker for live performances. The QX5A is ideal for the solo performer who wants an all in one mixer/monitor with the ability to connect a larger active main speaker or amplifier for live performances in small to medium size venues. Houses of Worship can benefit from the compact near field design, allowing audio from the mixing console to be sent directly to the performer(s) on stage and allowing the performer to adjust his or her own volume and tone as needed.



• QX5A
  »System Type: 5-inch, Active Near Field Monitor
  »Speaker Cabinet Frequency Response: 80Hz-14kHz
  (-10dB) 100Hz-10kHz (-3dB)
  »Three Channel Mixer
  »SYSTEM EQ: 3-Band with cut/boost +/- 15dB
  LOW 100Hz, MID 2.5kHz, HIGH 12kHz.
  »MIC/LINE IN to THRU Frequency Response: 20Hz-
  20kHz
  »Power: 150W Program
  »Input Impedance: 20k 0hms
  »Sensitivity (1w/1m): 98dB
  »Maximum SPL: 114dB
  »Maximum Input Signal: +20dBu
  »Speaker: 5-Inch Woofer 6 Ohms
  »Enclosure: Virgin polypropylene
  »Color: Black
  »Grill: Black powder coated 18-ga steel
  »Transport: 1 Top Handle
  »Pole Mount: 16mm (0.63-inch) pole mount cup
  »Pole Mount Adapter: 3/8-16
  »Top Mount: 3/8-16
  »Top Mount Mic Extension Pole: 3/8-16 and
  5/8 adapters. Extension Pole length is 6.75-inches
  »AC Input: 100V-230V (50-60Hz)
  »Fuse: T3.15A-250V 20mm x 5mm
  »Net Weight: 6.1lbs (2.8kg)
  »Dimensions: 11.25”W x 7.0”D x 8.0”H

•

PM5-B Program Reference Monitor (Black)

$99.00 $139.00

• Overview
• Specs
• Reviews

• The PM5 is a high-end near field monitor that delivers reference quality sound for use in project studios, commercial buildings, schools, boardrooms, restaurants, and home theater/home stereo applications. The excellent bass performance is due to the tuned port design. The water resistant design allows for outdoor use in patios and backyards. The PM5 comes standard with a microphone stand mount built in and mounting slots built into the molded enclosure allowing for optional mounting brackets to be installed. PM5 speakers are available in black. The speakers are also paintable to match your custom color schemes.



• Frequency Response : 75Hz - 19.5kHz (-3dB)
  Useable Low Frequency : 67Hz (-10dB)
  Power Handling : 75W RMS , 125W Program
  Sensitivity : 93.5dB SPL, 1W/1Meter
  Coverage Angles : 90 H x 90V
  Impedance : 8 Ohms
  Input/Outputs: Spring Loaded Wire Terminals / 1/4-Inch
  Enclosure Type : Vented Box / Injection Molded ABS Plastic
  Dimensions / NetWt : 6.75"W x 6.5"D x 10.25"H , 4.7lbs
  Warranty: 90 Days

• Lawrence Tritel New Jersey
  "A high quality product and a very good value."

  Robert Ingram Shreveport, LA
  "Wow!!! The first time I hooked these little guys up, I couldn't believe the sound considering the size and price. I'm planning to buy at least 4 more, two for my van and two more for my home studio. This is the best deal I've made since I bought my 2 new DCM1000L Power Amps. Carvin ROCKS!!!
  P.S. Carvin Customer Service is absolutely the best!!!"

  Ernesto Nevada
  "I had used 4 of these PM5 monitors in a custom made portable karaoke I made about 5 years ago. I use this unit as a commercial rental for my karaoke business. They have been very good for the quality and size I needed. They have held up very good up to now while pushing them with 75 watts @ 8 ohms each.
  I have never had a customer complain about the quality of sound these speakers."

  Kevin Bradford Wichita, KS
  "I bought the package set of these with the speaker cables for use with my Carvin AG100D guitar amp. These speakers are fantastic for this application and sound Great. They really fill the room with warmth and crystal clear, articulate sound wit this set up. Another great product and deal from Carvin!"

  Frank Latchford, California
  "Since more and more clubs are giving bands smaller areas to play, we decided to give up our old floor monitors for a pair of the PMs. The clarity and power is amazing. I do not do reviews, however, if you are a working bar band I would recommend these for vocals. If you don't like them, Carvin's return policy is excellent, but I really think you will keep 'em..."

  Doug Williams Xenia, OH
  "I have used my PM-5s for about ten years now and have been more than satisfied with their performance. I currently use them as studio monitors; however, I have used them as spot monitors on stage and even as monitors for my computer. I power them with a Peavey M260 amp which delivers about 100 watts to each speaker cabinet. They have proven to be well worth their cost! I highly recommend these speakers!"

  Jeff Woods Oklahoma
  "Wow! These little guys sound GREAT! I'm really impressed with them! I've used Carvin for years and will continue to do so. Thanks Carvin!"

  Denny Park Norman, OK
  "Very happy with these. I have a large listening area (30'x50') and the PM-5's fill that nicely. Sound is rich and natural. I do have these paired with a powered subwoofer, its an unbeatable combo!"



PM5-B-4 Four PM5 Black Loudspeakers

Sold Out $369.00

          PM5 Data Sheet  The PM5 is a high-end near field monitor that delivers reference quality sound for use in project studios, commercial buildings, schools, boardrooms, restaurants, and home theater/home stereo applications. The excellent bass performance is...
