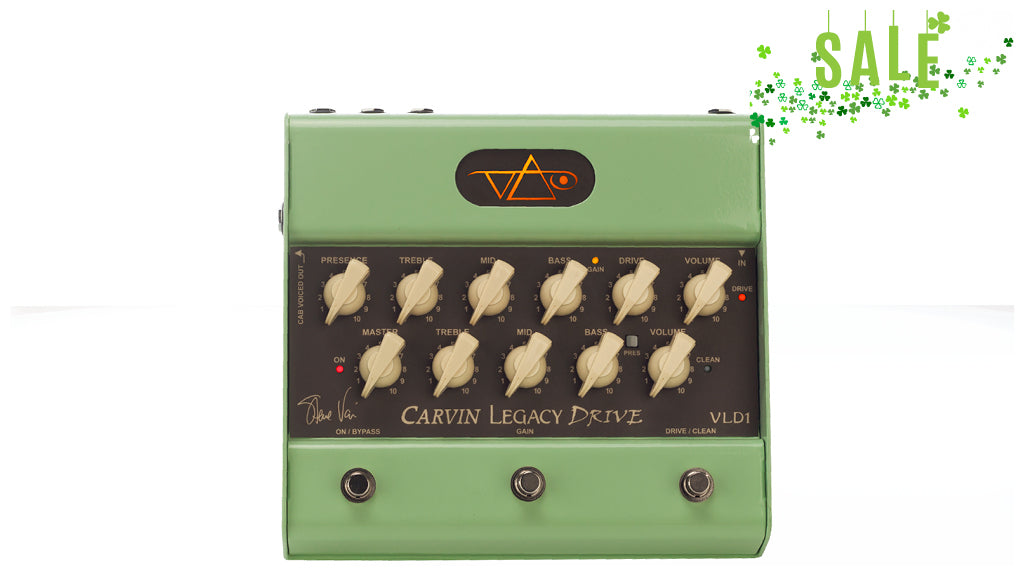

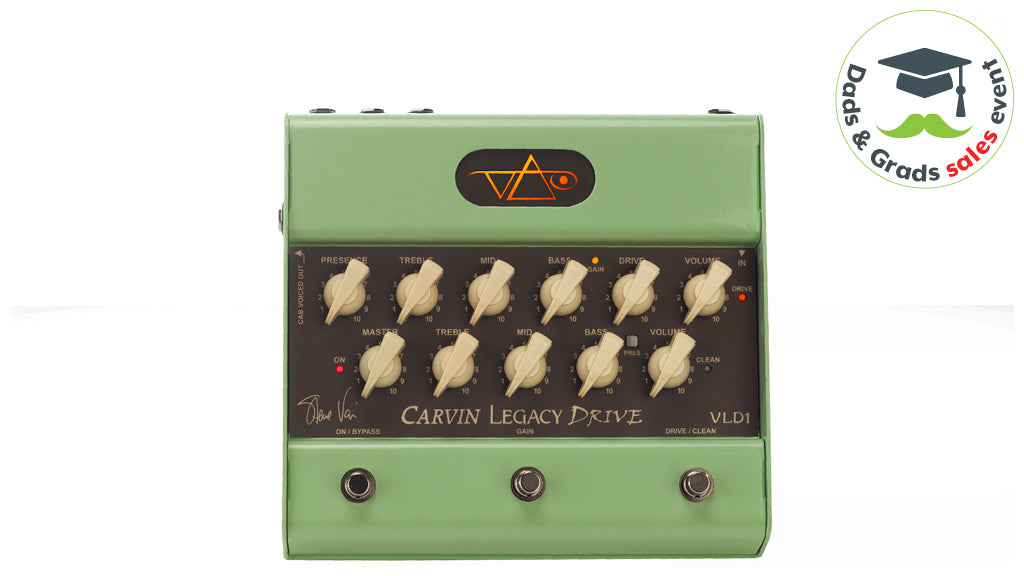

"The Legacy Drive Pedal is a savior for me. It retains all the quality warm tone of the Legacy pre amp section of the amp but now I can carry it in my suitcase and know that wherever I go I will have my favorite amp tone with me."
— Steve Vai
"Working with Carvin Audio allows for the message of the story to be told in our theatrical performances. The clarity and intelligibility that I get from their products is world class."
— Eastern Shore Reparatory Theater

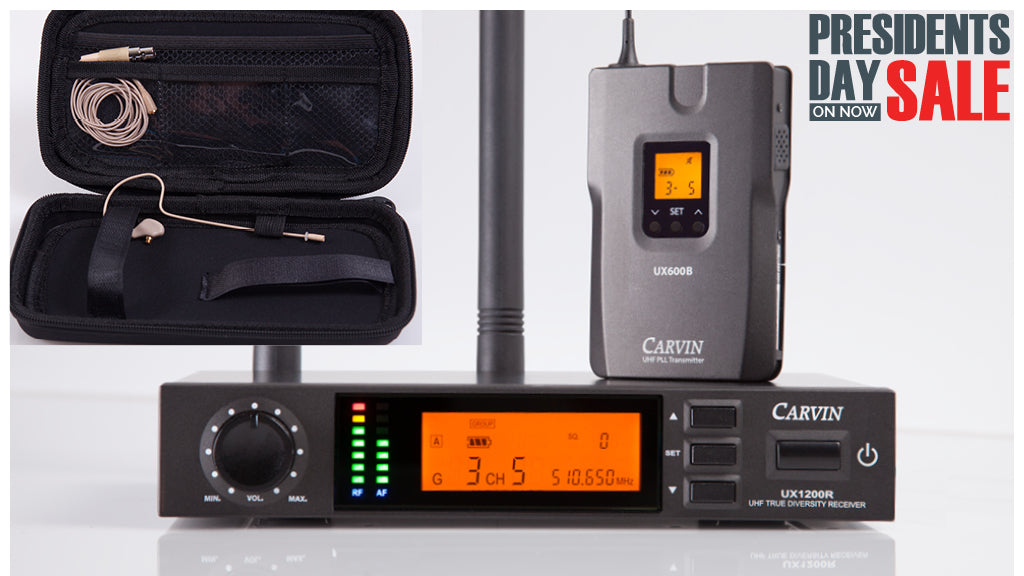

"While producing our school musical we were so happy to find the Carvin Audio wireless headset mic, transmitter and receiver. We had a number of mics all running at the same time and found the Carvin Audio system to be superior in sound quality at an accessible price level. Above all they understand their customers and offer incredible service and guidance. We are already planning to expand our audio equipment with more Carvin Audio microphone systems."
— The Cambridge School
The WG5 Wireless Guitar/Bass System is designed to give you the wireless freedom you have been looking for and the simplicity to make your life as a working musician easier. Compact design coupled with an intuitive, easy set up makes going wireless an enjoyable process. The WG5 works with both active and passive instruments and is perfect for both electric and acoustic guitar/bass.
» Number of Channels: 4
» RF Power: 5mW (7dBm)
» Frequency Response: 20Hz-20kHz (-3dB)
» Maximum Input Voltage : 2.1Vpp
» Signal to Noise Ratio: 95dB
» Operating Band: 5.8GHz
» Sample Rate: 24bit/48kHz Uncompressed Digital Transmission
» THD+Noise: <.05% (1kHz @ -10dbFS)
» Range: 150 Feet*
» Battery: Internal Lithium Rechargeable
» Continuous Run Time: 4hr:30min
» Charge Time: 2 Hours for full charge
» Charging Voltage: 5V - USB
» Charging Cable Included: Yes. Male USB to Dual Micro USB
» Color: Black
» Dimensions- Transmitter/Receiver: 3.7”W x 1.4”D x .5”H
*Note: Range is dependent on RF environment including RF reflections, interference and absorption.
I used my WG5 Wireless system at a show for the first time last night. The WG5 performed flawlessly, was super fast & easy to set up, produced perfect sound with no noticeable latency (NICE), and basically did everything that you said it would.I am totally impressed and very happy about this purchase.Thank you!- Gregg M.
Hello Carvin! I got my package yesterday and immediately tried it out and just have a little feedback. Yours is definitely quieter, I have less hiss coming through my amps with the WG5, and the sound is awesome. Cheers and rock on Carvin! Scott
Kudos to Carvin. I've been using the unit a few hours in my shop without a stutter or burp. No tone lost even when used with a pedal board. This product competes against units at a much higher price point. I’m so satisfied I am purchasing a second for my wife. Buy This Product!!! - Peter S.
»System Type: 15-inch 2-way, Active Bass Reflex
»Frequency Response: 54Hz-20kHz (-10dB) 62Hz-18 kHz (-3dB)
»Power: 1000W Program
»Coverage Pattern: Main 90x60 Monitor 60x90
»Sensitivity (1w/1m): 98dB
»Maximum SPL: 130dB
»Maximum Input Signal: +12dBu
»LF: 15-Inch Woofer 4 Ohms
»HF: 1.74-Inch 8 Ohms
»Enclosure: Premium Poplar
»Finish: Black DuraTec™
»Grill: Black powder coated 16-ga steel with cloth backing
»Transport: 2 Recessed handles
»Pole Mount: 1.38-inch pole mount cup
»Suspension Points: 6 points using M8-1.25 x 30mm
»AC Mains Input: 115V-230V (50-60Hz)
»Net Weight: 42.5lbs
»Dimensions: 17”W x 14.75”D x 26.25”H
Tab 3 content
Need a new paragraph? Try using Shift + Enter

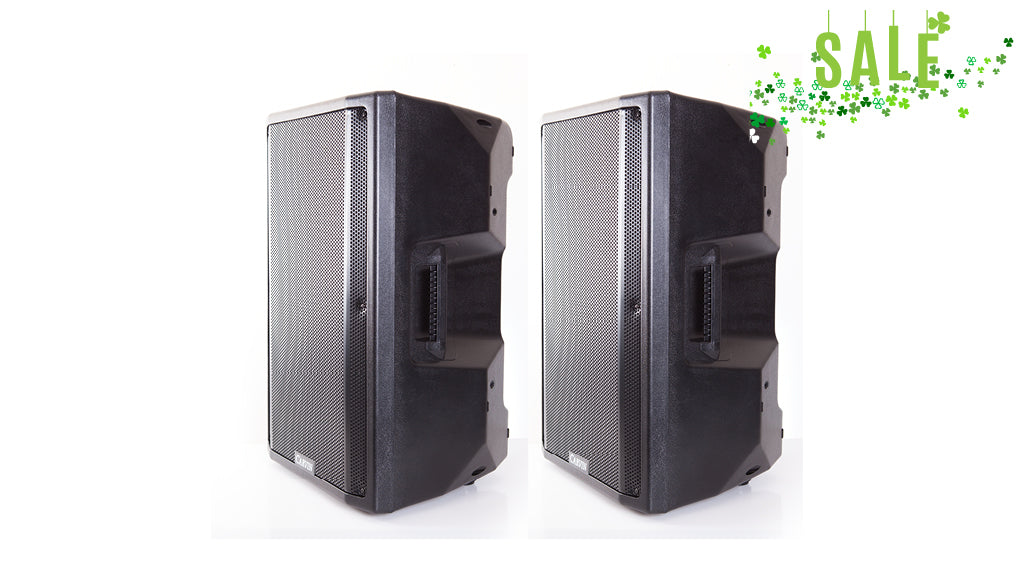

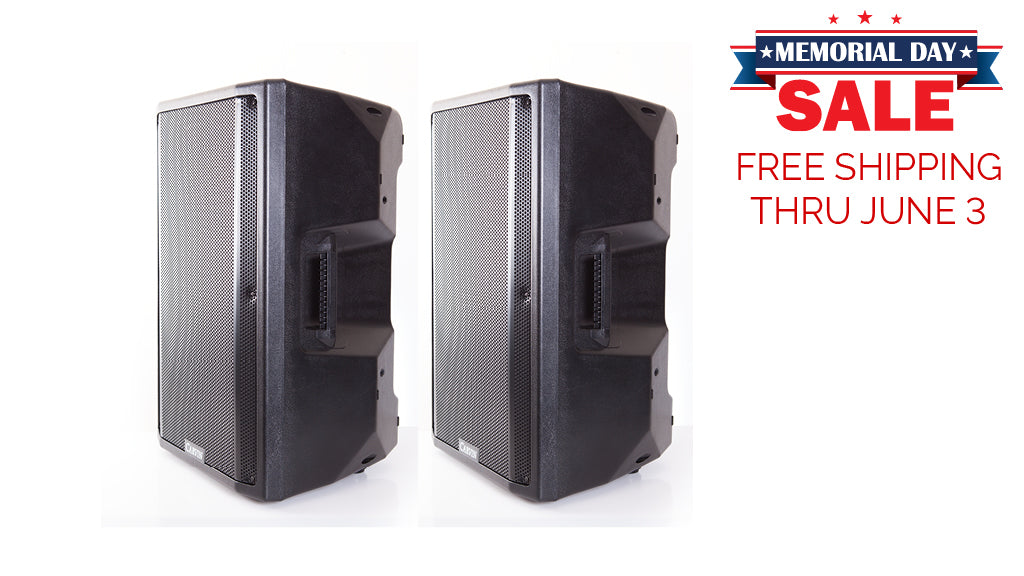

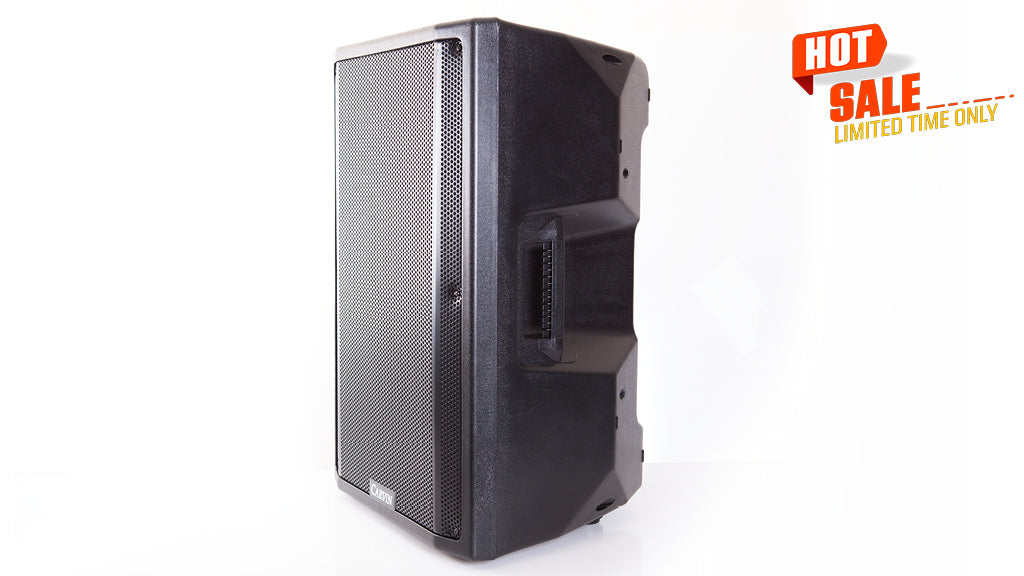

The QX15A is a 15-inch 2-way active multi-purpose
enclosure designed for use as mains, stage monitors, or
for DJ sound. The bi-amp 1000 watt active system
delivers clear, high SPL output with internal limiting
to protect the drivers for years of service. Stream audio wirelessly from your phone or tablet using bluetooth. Pair a second QX15A using bluetooth for a wireless stereo setup. The rugged
water resistant enclosure is designed to deliver crystal
clear sound in small to medium size venues. The high
power drivers feature large magnet structures for
high efficiency, producing more output per watt. The
enclosure is made of molded virgin polypropylene
that is resistant to cracking. The drivers are protected by
a heavy gauge steel powder coated grill with cloth
backing for superior protection and style.
System Type: 15-inch 2-way, Active Bass Reflex
» Frequency Response: 54Hz-18kHz (-10dB) 62Hz-16kHz (-3dB)
» Power: 1000W Program
» Coverage Pattern: Main 90x60 Monitor 60x90
» Sensitivity (1w/1m): 98dB
» Maximum SPL: 130dB
» Maximum Input Signal: +12dBu
» LF: 15-Inch Woofer 4 Ohms
» HF: 1.74-Inch 8 Ohms
» Enclosure: Virgin polypropylene
» Color: Black
» Grill: Black powder coated 16-ga steel with cloth backing
» Transport: 2 Recessed handles
» Pole Mount: 1.38-inch pole mount cup with thumb screw
» Suspension Points: 3 points using M8-1.25 x 30mm. The bottom fly points are 180mm center to center.
» AC Mains Input: 115V-230V (50-60Hz)
» Net Weight: 42lbs
» Dimensions: 17.75”W x 15.5”D x 27.5”H

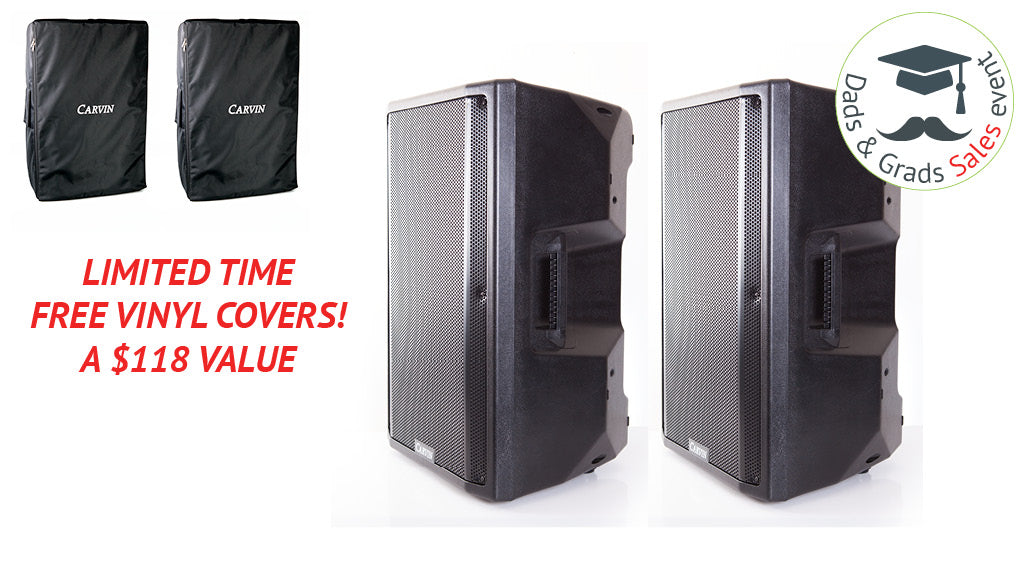

"I love this Carvin QXSYS15A sound system. Sounds great! I’m sold on the sound and quality. My goal by Christmas is to add the TRC400A." David C. Augusta, GA
1- QX5A Active Monitor with 3 Channel Mixer
1 -Top Mount Mic Extension Pole with 3/8-16 and 5/8 adapters
1 -Microphone Stand Mount with 3/8-16 threaded adaptor
The QX5A is designed to function as both a powered near field monitor and as a three channel mixer/monitor with an external output to send to a QX15A or SCx Series powered main speaker for live performances. The QX5A is ideal for the solo performer who wants an all in one mixer/monitor with the ability to connect a larger active main speaker or amplifier for live performances in small to medium size venues. Houses of Worship can benefit from the compact near field design, allowing audio from the mixing console to be sent directly to the performer(s) on stage and allowing the performer to adjust his or her own volume and tone as needed.
»System Type: 5-inch, Active Near Field Monitor
»Speaker Cabinet Frequency Response: 80Hz-14kHz
(-10dB) 100Hz-10kHz (-3dB)
»Three Channel Mixer
»SYSTEM EQ: 3-Band with cut/boost +/- 15dB
LOW 100Hz, MID 2.5kHz, HIGH 12kHz.
»MIC/LINE IN to THRU Frequency Response: 20Hz-
»Power: 150W Program
»Input Impedance: 20k 0hms
»Sensitivity (1w/1m): 98dB
»Maximum SPL: 114dB
»Maximum Input Signal: +20dBu
»Speaker: 5-Inch Woofer 6 Ohms
»Enclosure: Virgin polypropylene
»Grill: Black powder coated 18-ga steel
»Transport: 1 Top Handle
»Pole Mount: 16mm (0.63-inch) pole mount cup
»Pole Mount Adapter: 3/8-16
»Top Mount: 3/8-16
»Top Mount Mic Extension Pole: 3/8-16 and
5/8 adapters. Extension Pole length is 6.75-inches
»AC Input: 100V-230V (50-60Hz)
»Fuse: T3.15A-250V 20mm x 5mm
»Net Weight: 6.1lbs (2.8kg)
»Dimensions: 11.25”W x 7.0”D x 8.0”H
The ultimate all-in-one power conditioner, the AC120S provides ten outlets that sequentially power on and protect your gear on any stage. Much more than a surge suppressor, this unit is equipped with an EMI/ RFI line filter to provide you a hum-free show, while adjustable LED rack lighting helps you set up in the darkest venues.
» TOTAL CURRENT RATING: 20 AMPS
» OUTLET RATING: 15 AMPS
» TOTAL NUMBER OF OUTLETS: 10
» GROUNDING: 3 PIN GROUNDED TO AC INPUT GROUND
» OPERATING VOLTAGE: 90-130 VAC
» AC CORD LENGTH: 68"
» AC DIGITAL VOLT METER: 3 DIGIT, 0 TO 999, RED LED
» SURGE PROTECTION: 3 TRANSIENT/ SURGE ABSORBERS
» MAXIMUM SURGE CURRENT: 6.5kA
» ENERGY ABSORPTION: 140 J
» SEQUENTIAL OUTLET SWITCHING TIME: 1,2,3 OR 4 SECONDS
» SEQUENTIAL BY-PASS: YES
» LIGHTS : 2 TUBES WITH 4-INCH EXTENSION. LED ARRAY
» LIFE OF LED: +500,000 HOURS
» AC FILTER TYPE: EMI
» NOISE REDUCTION: 9dB @ 10kHZ, 41dB @ 100kHz, 102dB@ 10MHz.
» INTERNAL WIRING: 12-GAUGE
» CONSTRUCTION: BLACK STEEL CHASSIS
» POWER CONSUMPTION: 5 WATTS
» DIMENSIONS: 19”W x 11”D x 1.75”H NET WEIGHT: 11lbs
Best in performance and value. I own two of these in my studio, the sequential power on/off feature and option to individually select outlets is so common sense it is genius.
I bought an AC120S Power Conditioner/Sequencer a year ago. Simply put, I love it! It’s an awesome piece of gear!
Product works great. Good build quality. LED's are too bright. Pull out lights are much nicer than I expected. This would be a great device to hack if the microcontroller was mounted in a socket. I would love to control the relays with an Arduino board to give me more flexibility and to allow control of the unit with my iRule universal remote control system.
Corey Wilkinson Montana
This thing is rock solid. We have used it inside and outside and pulled it across the country! Not one problem. Ever! We have owned or used Furman, Crown, Monster etc and for the quality and value this thing beats them all."
Aleks Shkuratkov Vancouver, WA
"I've had this power conditioner for about three years now. And its been working great. I absolutely love the availability to switch any of the plugs from the front via the individual push-buttons (which control the internal heavy-duty switching relays). The sequenced power up/down is a very clever feature, and saves your gear (and the conditioner itself) from a large and harmful current spike, and prevents the potential nuisance tripping of the circuit breaker at the panel, as well as a nasty voltage sag (when the lights in your room go slightly dim for a second when you turn on something big). The build is very, very solid and for this price, this is absolutely THE best value for a power conditioner in this size/format. My AC120S currently powers my home recording rig, and I plan to get several more for our band gear."
Jeff Treadwell Crockett, TX
"This is an awesome, solidly-built piece of gear, easily worth twice the price to protect your more expensive equipment. This is only my second purchase from Carvin, but it won't be the last!"
"Absolutely fantastic. I purchased this item on sale from Carvin direct because the specs looked good and the price was right. I received my item 5 days from the time I ordered it. I opened the box and was pleased to find a heavy duty, professional looking piece of rack gear. It had a very fat power cable 12ga!! It was a little heavy, but all good electronics have some heft. With all the useful features, I really feel like this unit is an incredible value even at the regular price. It's a truly great example of American "built to last" craftsmanship and quality. Americans can manufacture a product of fine quality at a reasonable price point. Absolutely fantastic. Buy with confidence."

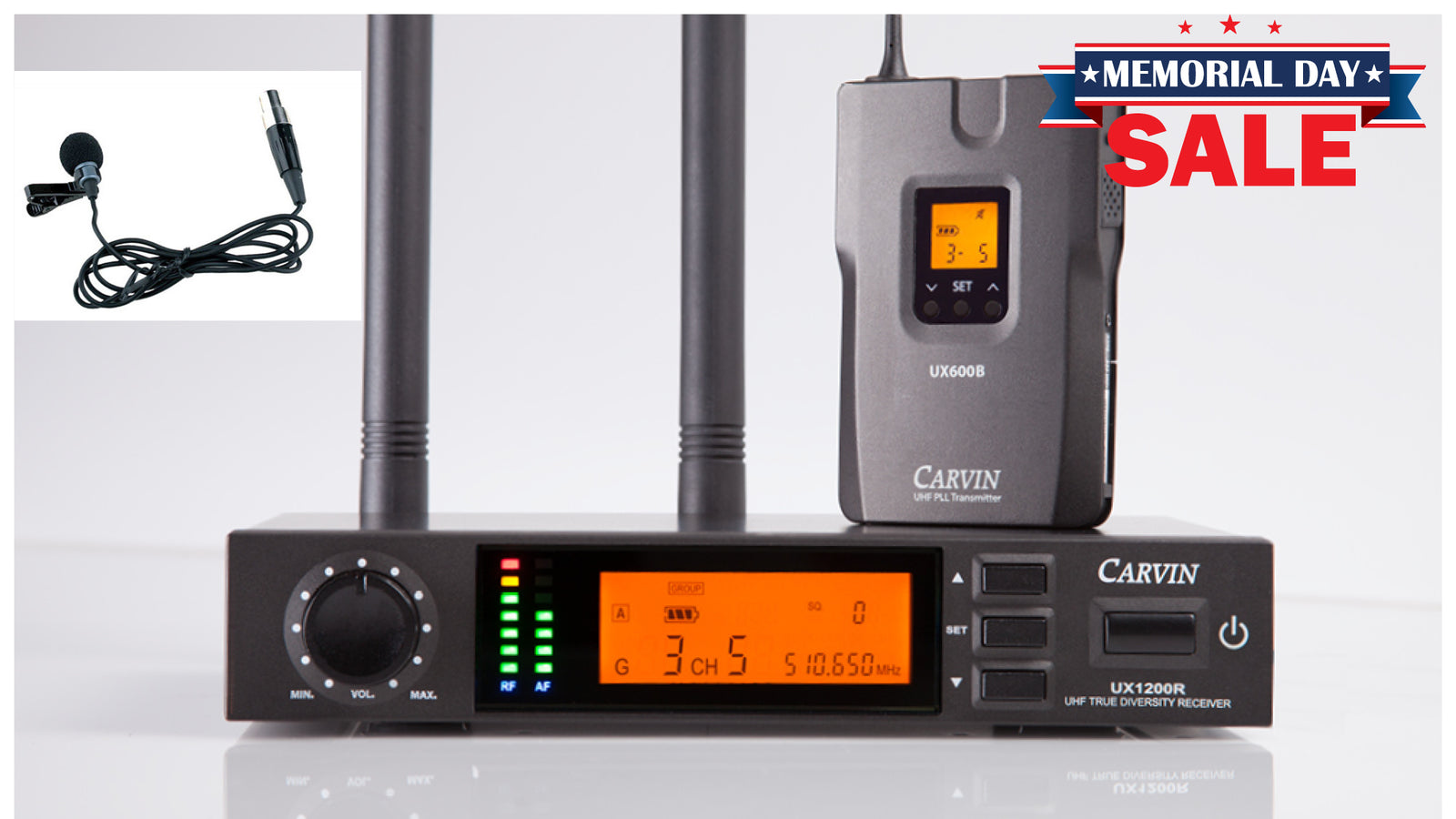

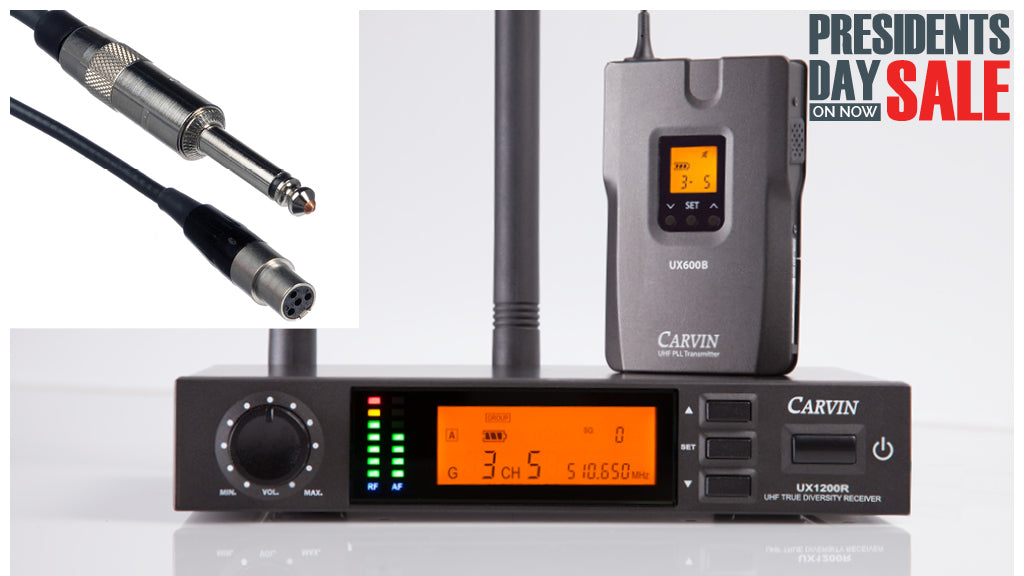

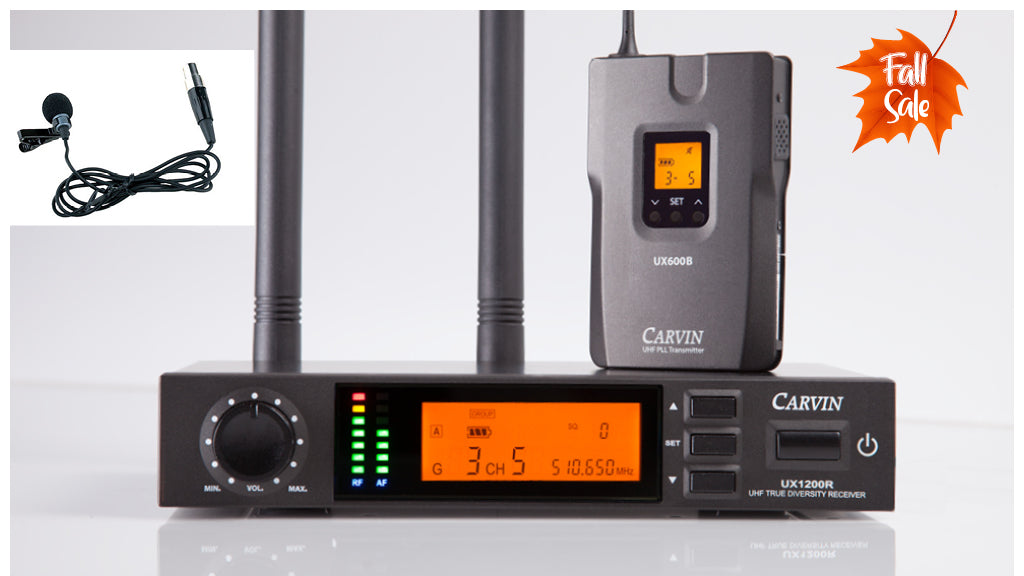

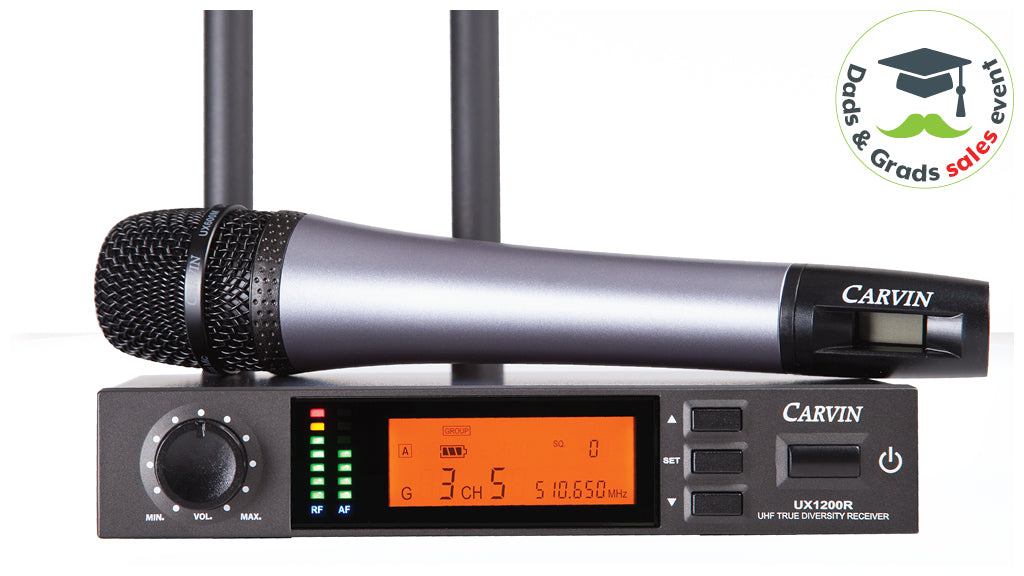

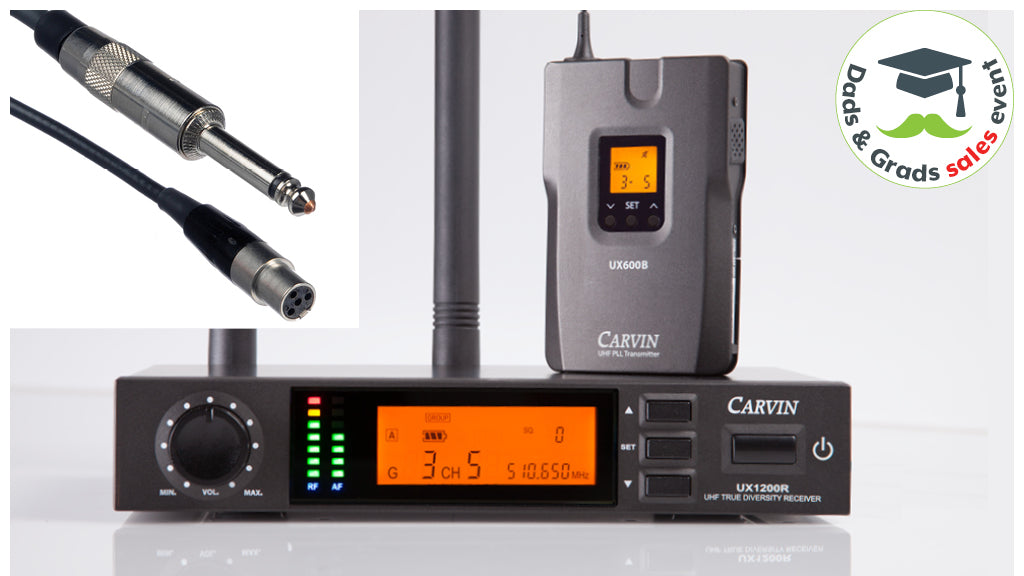

1 UX1200R Wireless Receiver
1 UX600M Handheld Microphone
1 MH56 Microphone Clip

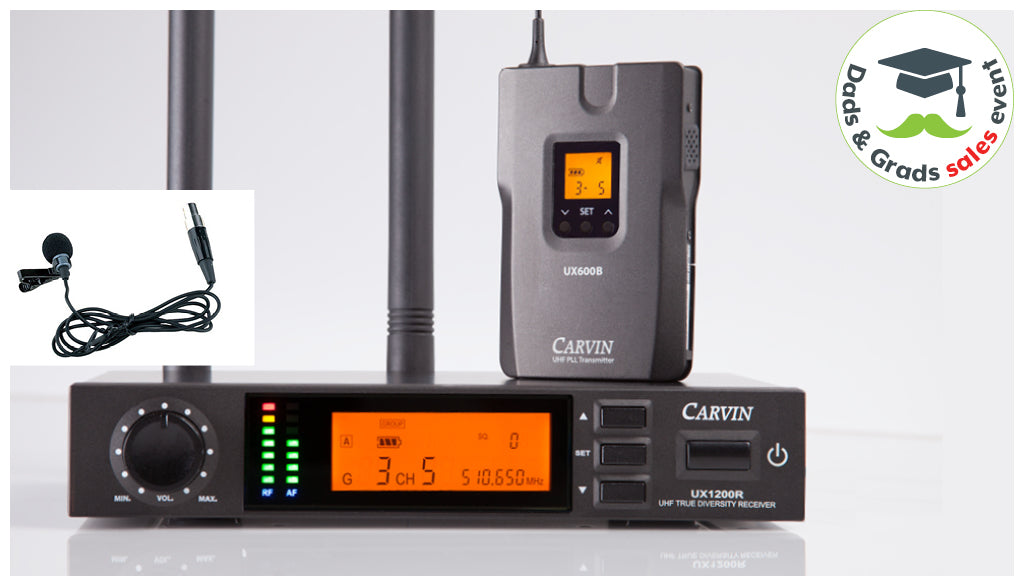

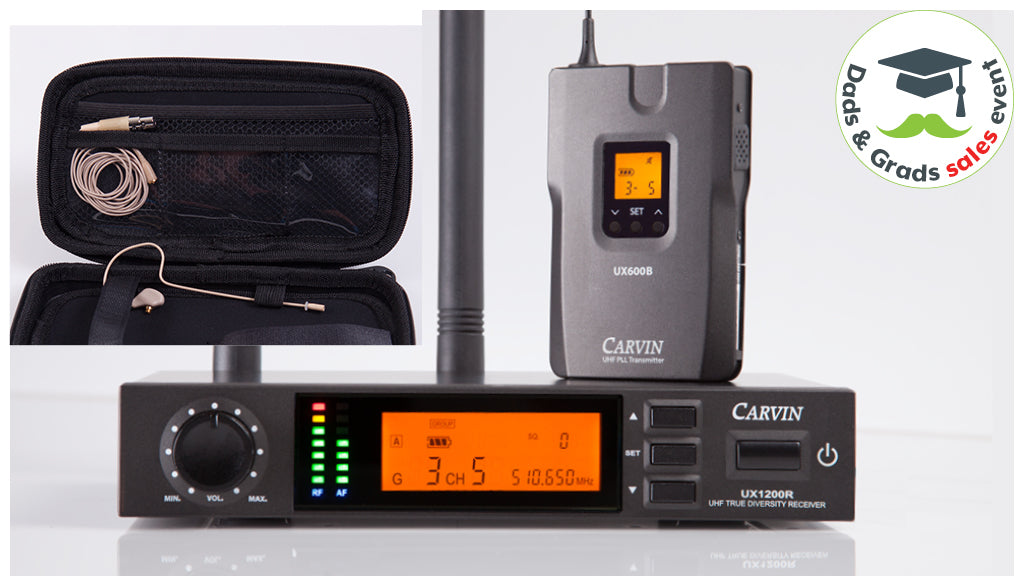

UX1200R Receiver Specifications:
Simultaneous Channels in Operation : 14
System Type : Analog
Group / Channel Selections : 6 Groups of 23 Channels
Channel selection : Auto and Manual ( In .025MHz increment)
RF Frequency Band : 506MHz - 542MHz
RF Bandwidth : 36MHz
Reception Format : True Diversity, PLL Synthesized
Audio Output : XLR and 1/4-Inch outputs
Receiver Type : Table Top or Rack mount
Warranty: 90 Days
UX600M Microphone Specifications :
Polar Pattern: Unidirectional
Frequency Response: 50Hz – 16kHz
RF Output Level : 10mW or 50mW
Battery : 2x AA
Dimensions: 10.3”L x 1.97” diameter
Net Weight : 12.5oz
Warranty: 90 Days

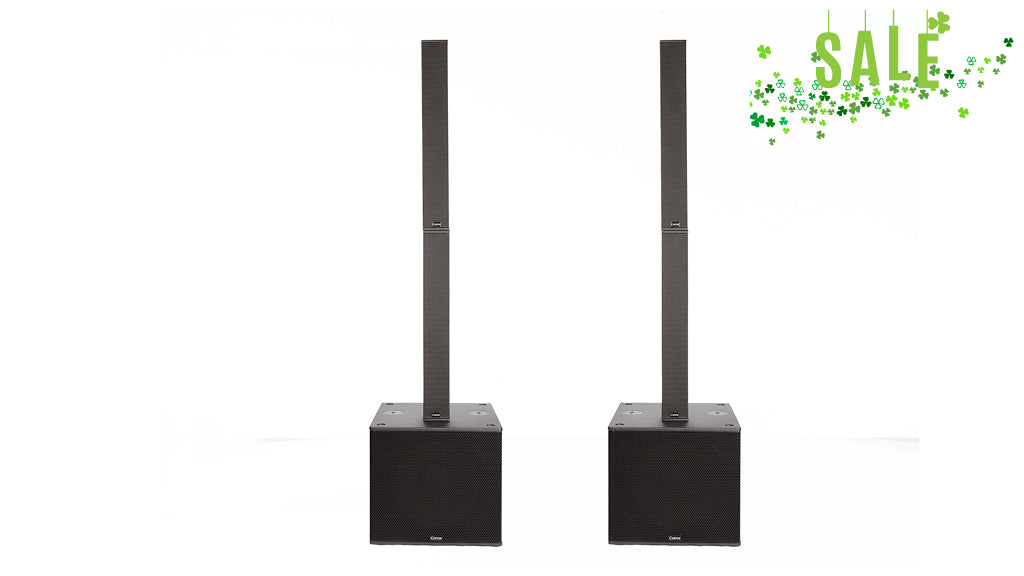

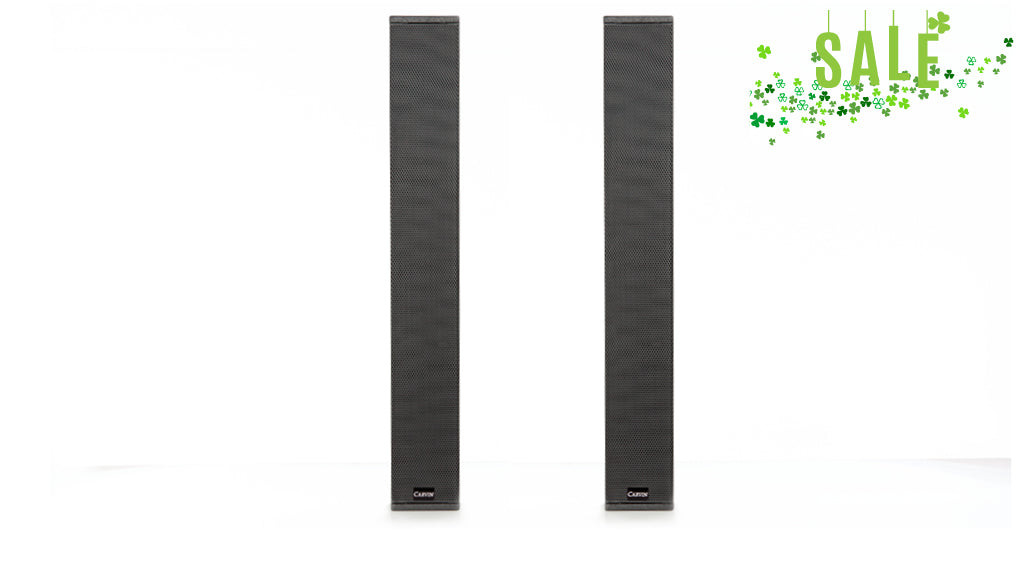

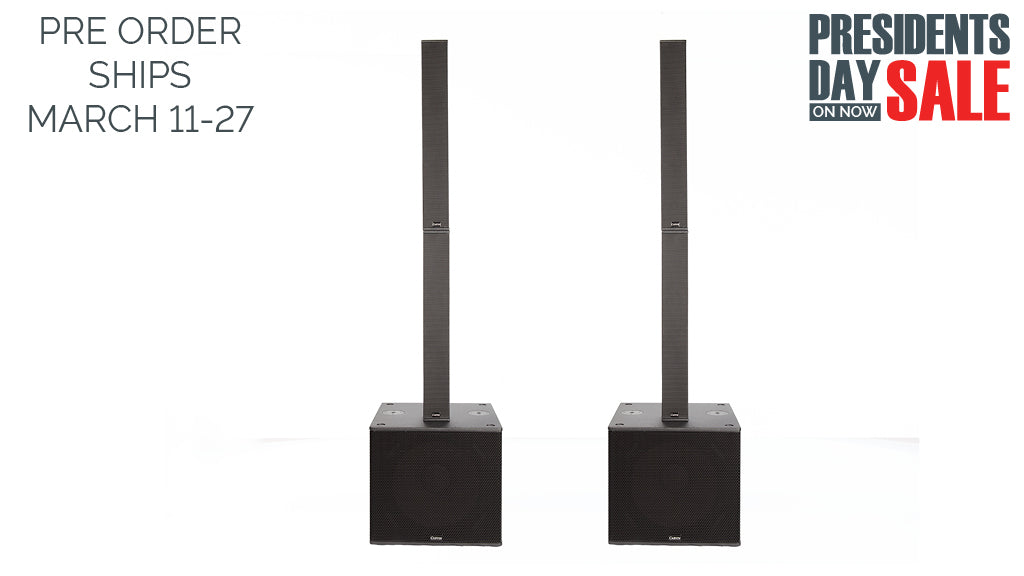

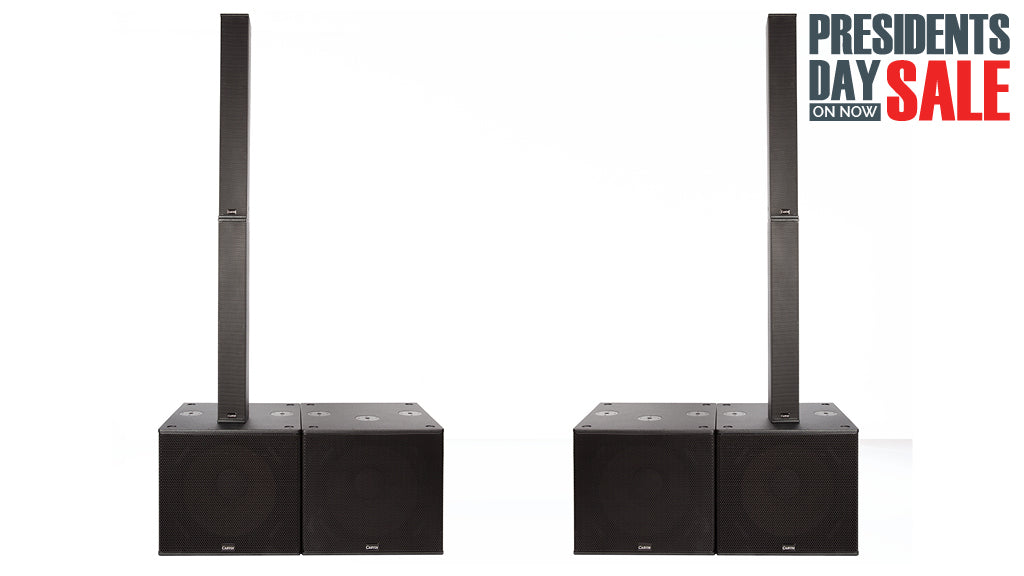

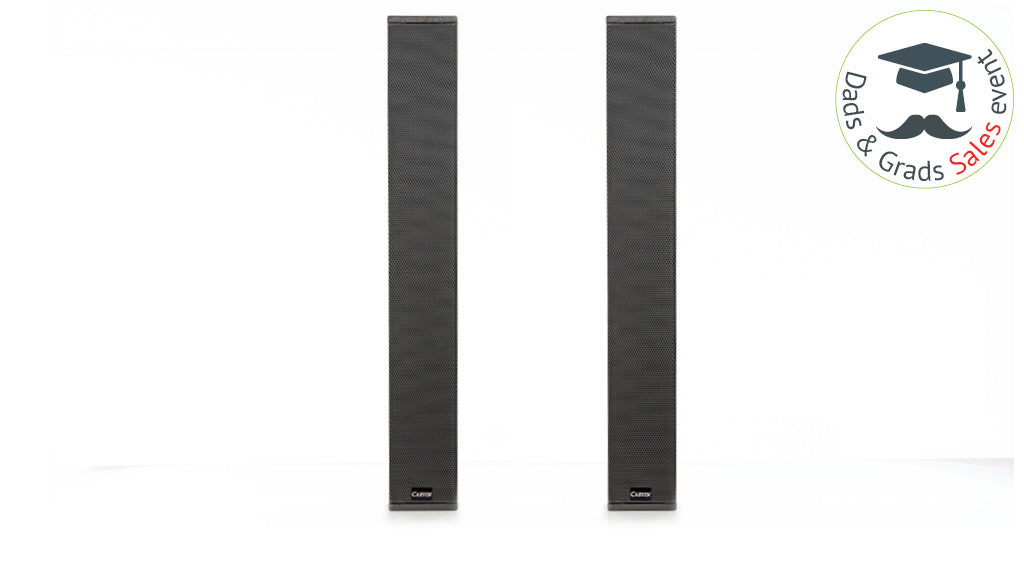

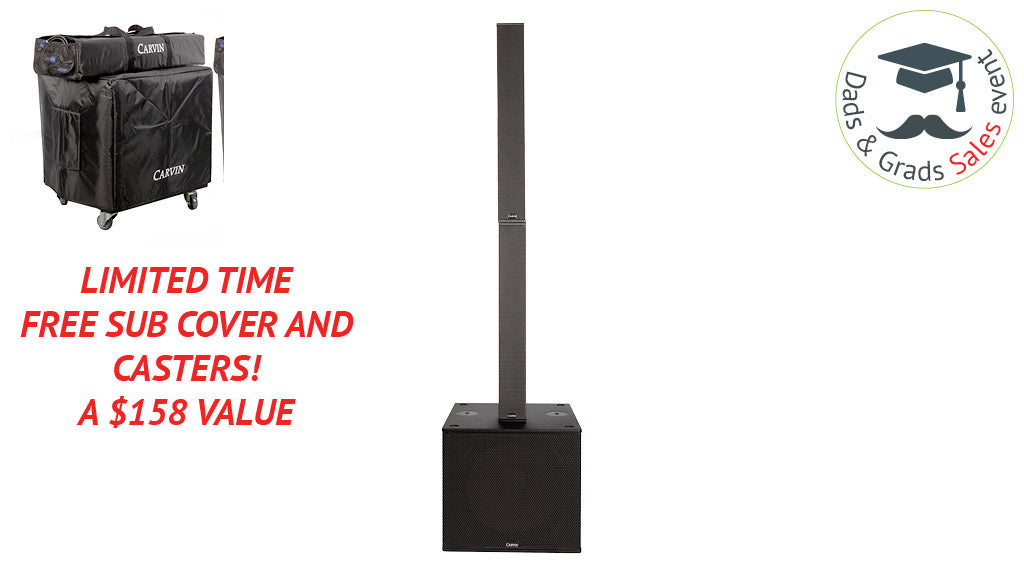

Today we want to answer a couple of pretty common questions about column array speakers, specfically our TRC Systems. It’s fair that these questions get asked because when any musician thinks of PA speakers they picture more traditional speaker enclosures. But, column arrays can be just as good as , or even better than, traditional PA speakers. So let’s dive into it...
The QX5A is designed to function as both a powered near field monitor and as a three channel mixer/monitor with an external output to send to a QX15A or SCx Series powered main speaker for live performances. The QX5A is ideal for the solo performer who wants an all in one mixer/monitor with the ability to connect a larger active main speaker or amplifier for live performances in small to medium size venues.
The new QX Series loudspeakers offer the ultimate in versatility- they are designed to stand alone as a full range sound reinforcement loudspeaker, full range stage monitor, all in one PA system, or as a three-way extended low end system main with our SCx18A subwoofer. Choose between the QX15A 15-inch active 1000W loudspeaker with DSP, Bluetooth™, and built in 3 channel mixer or the passive QX15 15-inch 900W loudspeaker. The QX Series is ideal for club systems, houses of worship, DJs, auditoriums, band PA, solo performers, and as a satellite extension of an existing sound system. QX Series loudspeakers are available now and ready to ship.
