  • Package Includes:
    2 - SCx12A 1000W Active 12-Inch Main/Monitor

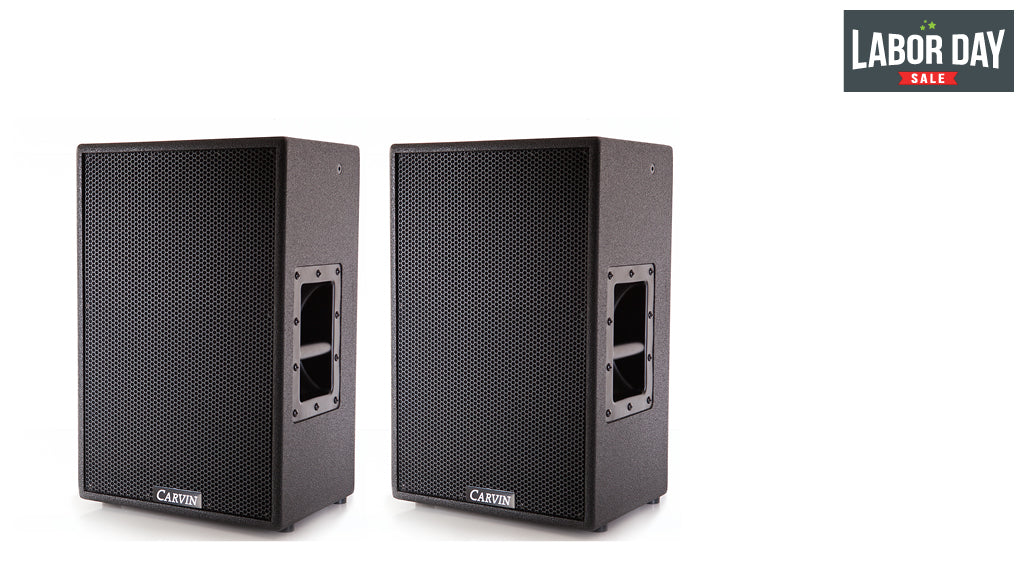

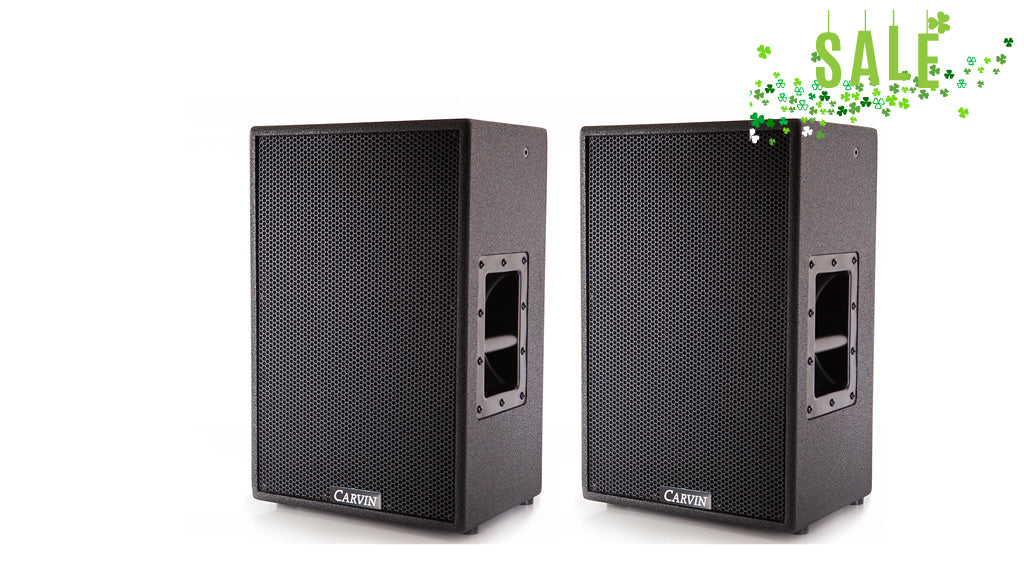

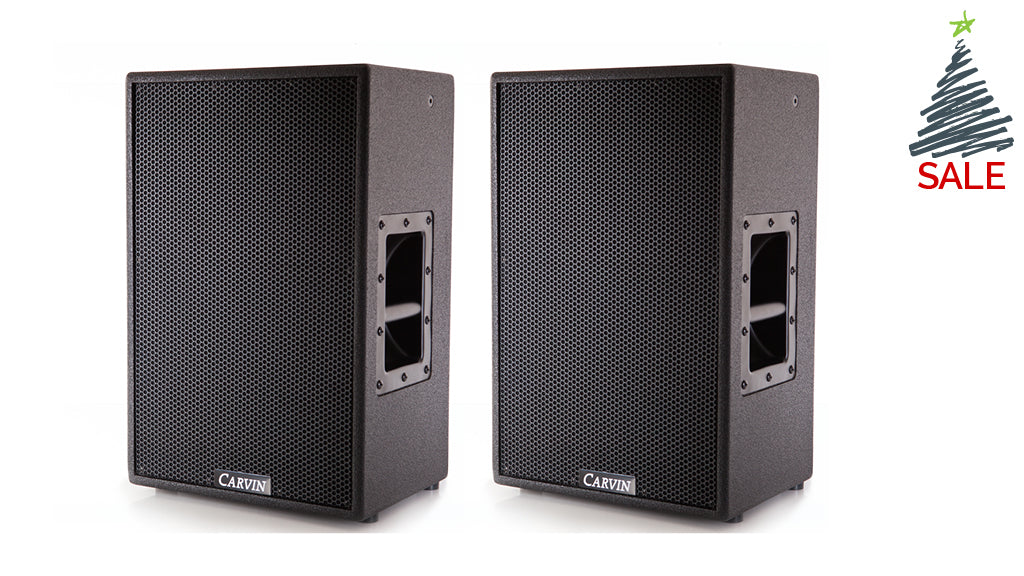

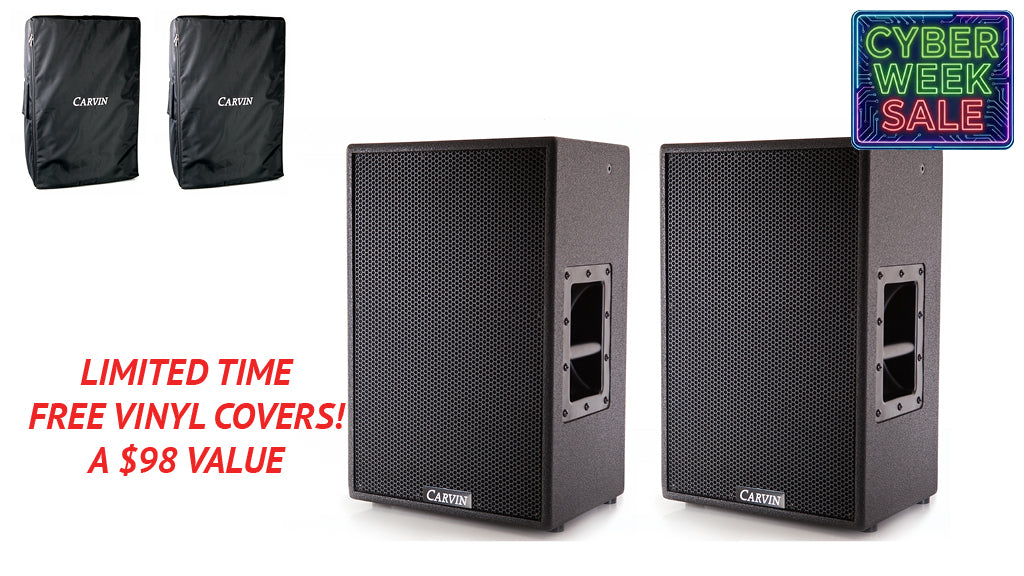

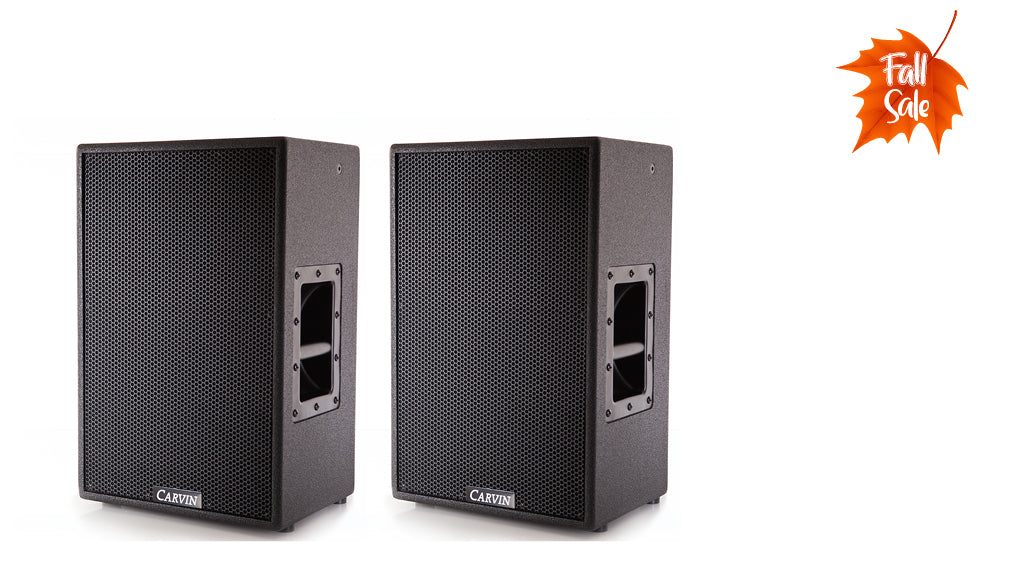

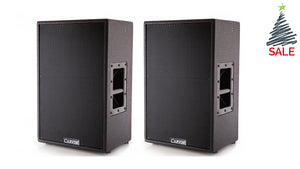

    The SCxSYS12 2000 watt system is an excellent sound system for small venues and houses of worship. The system package includes a pair of SCx12A 12-inch 2-way 1000 watt active enclosures. The bi-amp 1000 watt active system delivers clear high SPL output with while maintaining a small footprint.


KILOWATT POWER

The SCx12A features an amazing 1kW of bi-amped power. One amplifier powers the 12-inch woofer delivering powerful bass with plenty of headroom while the second amplifier powers the high frequency driver delivering crystal clear highs.

ANALOG DEVICES DSP

We designed the DSP of the SCx12A around the Analog Devices ADAU1701 Sigma DSP processor to give you the best sound quality and DSP functions available. Choose from 4 user settings so the SCx12A can deliver the best performance for your intended use. Choose from LIVE,PLAYBACK/DJMONITOR or EXTERNAL SUB WOOFER

POWERFUL TRANSPARENT LIMITING

The LIMITING DSP protects the SCx12A from driver and horn damage due to unexpected peaks during the performance while maintaining transparent audio output to the audience.

2-CHANNEL MIXER INCLUDED

The SCx12A features a two channel mixer. For small gigs, you can plug directly into the speaker, adjust levels and you are ready to perform. Use theLINE/MIC button adjust for optimal gain of the intended input source. Select betweenLINE 2or theMIX signal to send audio to another loudspeaker via theLINE OUT.

Flyable

The SCx12A features 6 fly points for installation applications. Each point uses an M8-1.25 x 30mm eyebolt. Eyebolts sold separately.

Main with subwoofer

The SCx12A comes equipped with rugged deep pocket handles and a 1.5-inch (38mm) pole mount cup for using the SCx12A on top of the TRx3118A or other subwoofer as a satellite main loudspeaker.

115VAC - 230VAC

The SCx12A is designed to accommodate voltages from 115VAC/60Hz to 230VAC/50Hz so no matter where you live or travel to, the SCx12A is right at home in your environment.
