$64,560.00
| /
The TRxSYS6 expands the performance capabilities of the TRx5000 platform, delivering increased projection, headroom, and low-frequency impact for mid-sized outdoor events, large houses of worship, and regional concert productions. Featuring six TRx5210AN line array elements per side with four TRx5118AF subwoofers per side, the system provides extended throw, controlled vertical coverage, and full-range performance in more demanding environments.

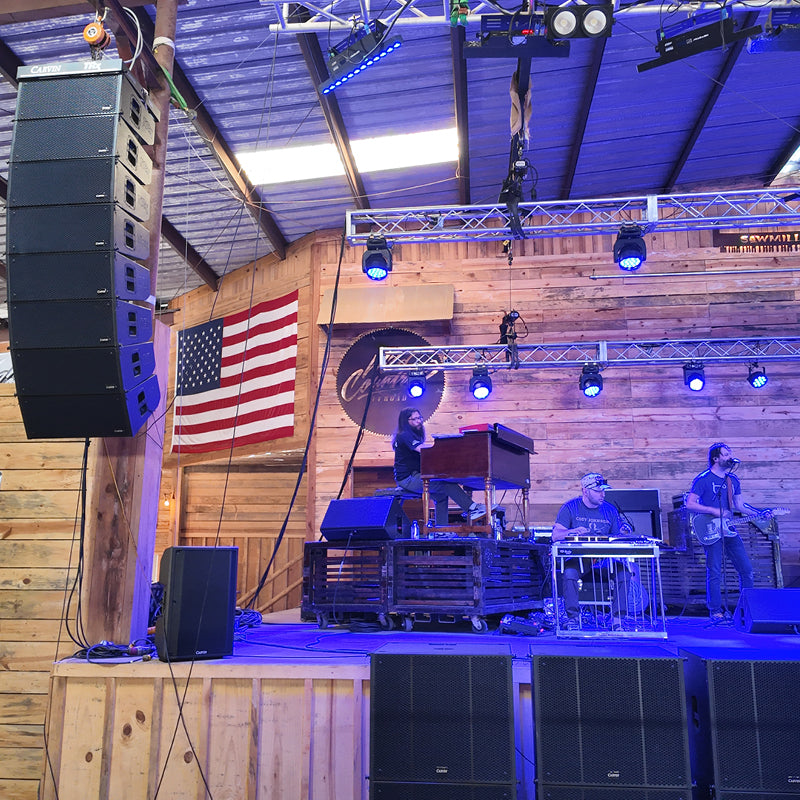

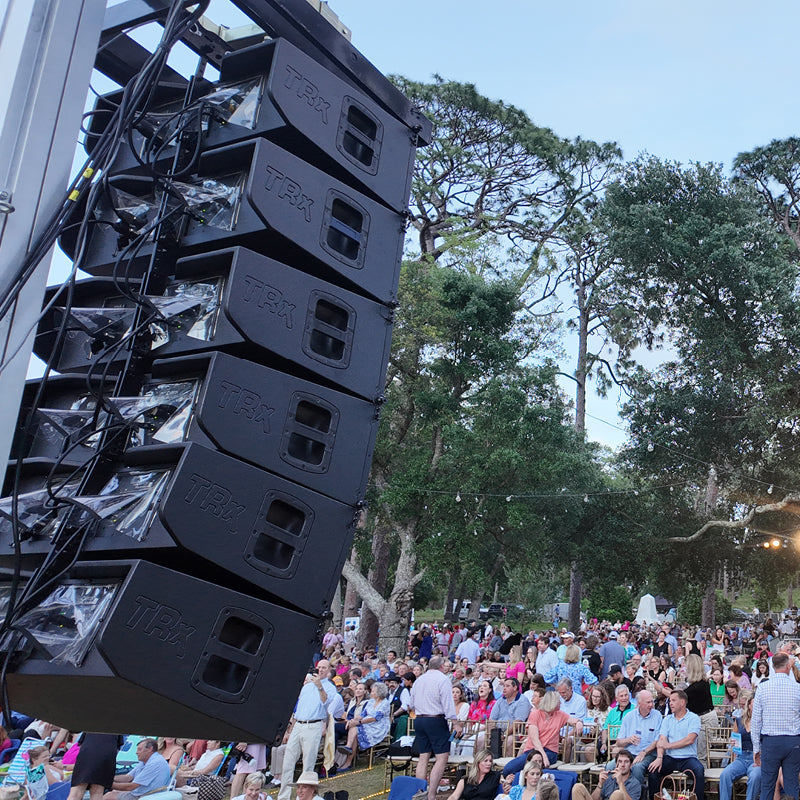

Designed for flexible deployment, TRxSYS6 can be flown or ground-stacked (4-tops per side), maintaining consistent voicing and predictable system alignment through integrated DSP across all components. The increased flown array length improves mid- and far-field coverage while preserving clarity and vocal intelligibility.
The TRxSYS6 is ideally suited for larger audiences than the smaller TRxSYS4.
For engineers and consultants, EASE modeling files are available, allowing accurate coverage prediction, low-frequency simulation, and complete system planning prior to deployment—ensuring confident performance before load-in.

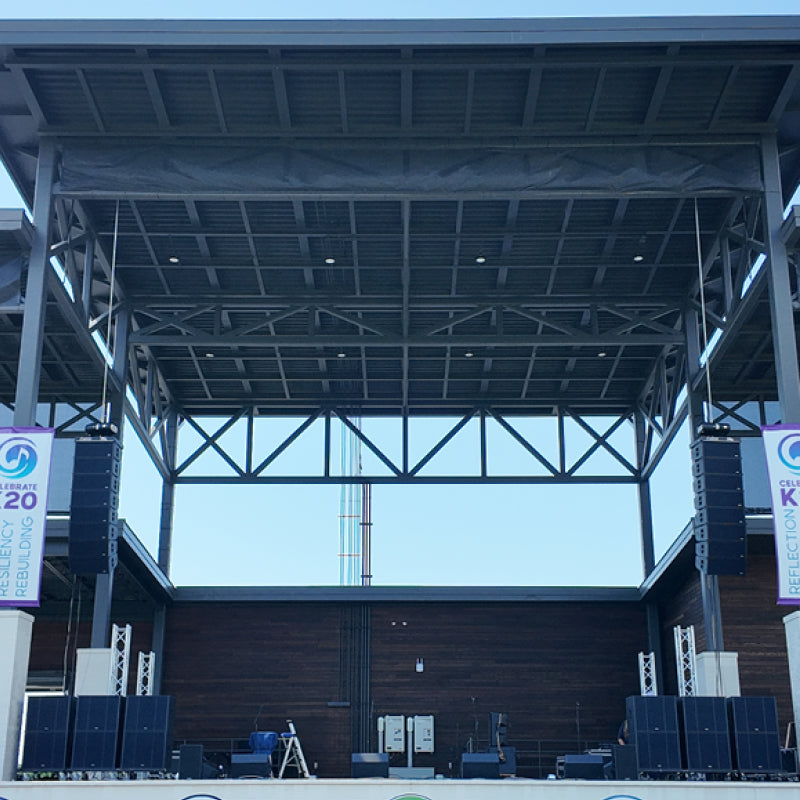

Designed for large venues, TRxSYS8 delivers full-scale line array performance with increased low end performance.

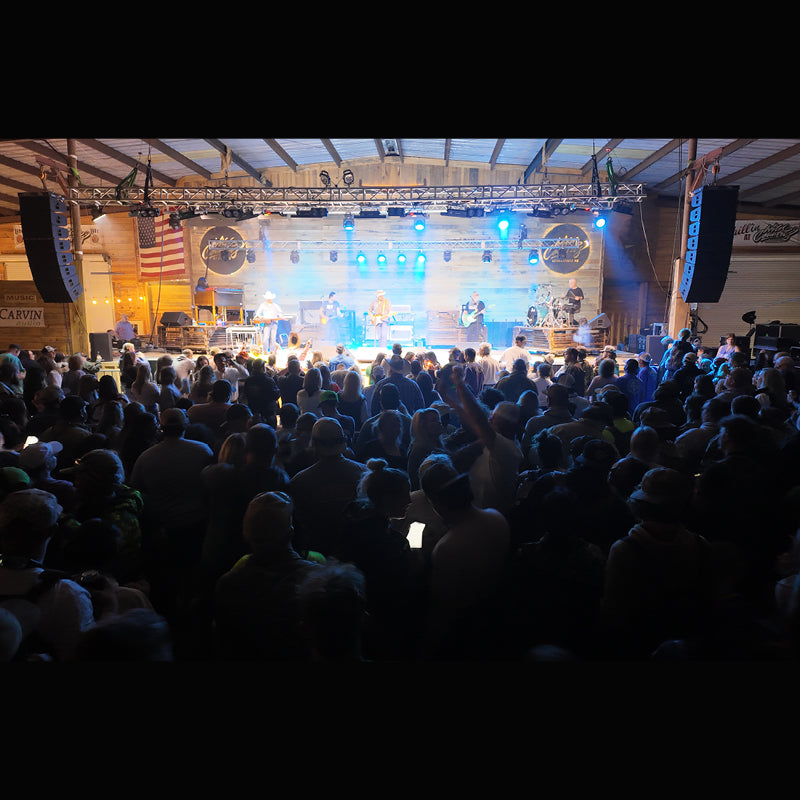

Outdoor Concerts & Festivals
The TRxSYS8 is engineered for large-scale outdoor concerts and festival stages requiring maximum projection and headroom. With extended array length and increased subwoofer support, the system delivers powerful long-throw performance, controlled vertical coverage, and authoritative low-frequency impact for high-capacity audiences while maintaining clarity at elevated SPL levels.

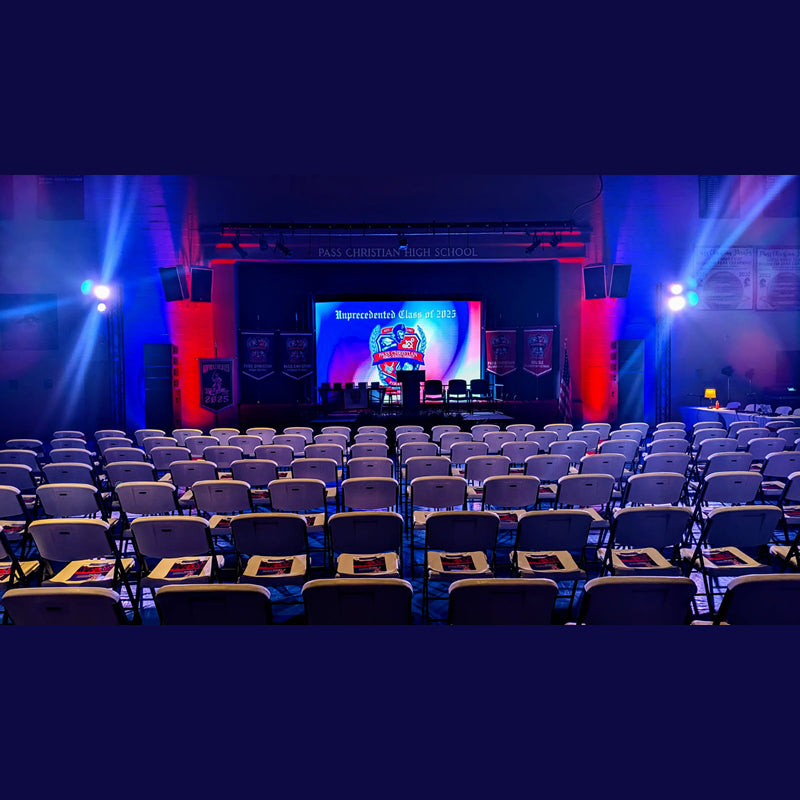

Houses of Worship
For large sanctuaries and contemporary worship venues with deep seating areas, the TRxSYS8 provides extended coverage and improved far-field intelligibility. The increased array length enhances vocal clarity throughout expansive spaces, while the expanded subwoofer configuration supports full-band worship productions with depth and control.
Corporate & Civic Events
The TRxSYS8 delivers high-output, scalable performance for major corporate productions, civic celebrations, and large indoor arenas. Controlled dispersion and predictable DSP optimization allow system engineers to manage reflections and maintain consistent tonal balance across wide audience areas, even in challenging acoustic environments.
Touring & Rental Systems
Designed for professional production companies and regional touring providers, the TRxSYS8 offers maximum output and scalability within the TRx5000 platform. Its modular architecture allows seamless integration with additional array elements and subwoofers, providing rental providers with a reliable, expandable system capable of covering large venues with confidence.
The voice of the TRx5000 Series is the modular TRx5210AN active line array element designed to scale from small outdoor shows to full blown concerts.
Active 2x10-inch Line Array Element
User Manual
Download the product user manual here
EASE Data
Download the EASE acoustic modeling data here

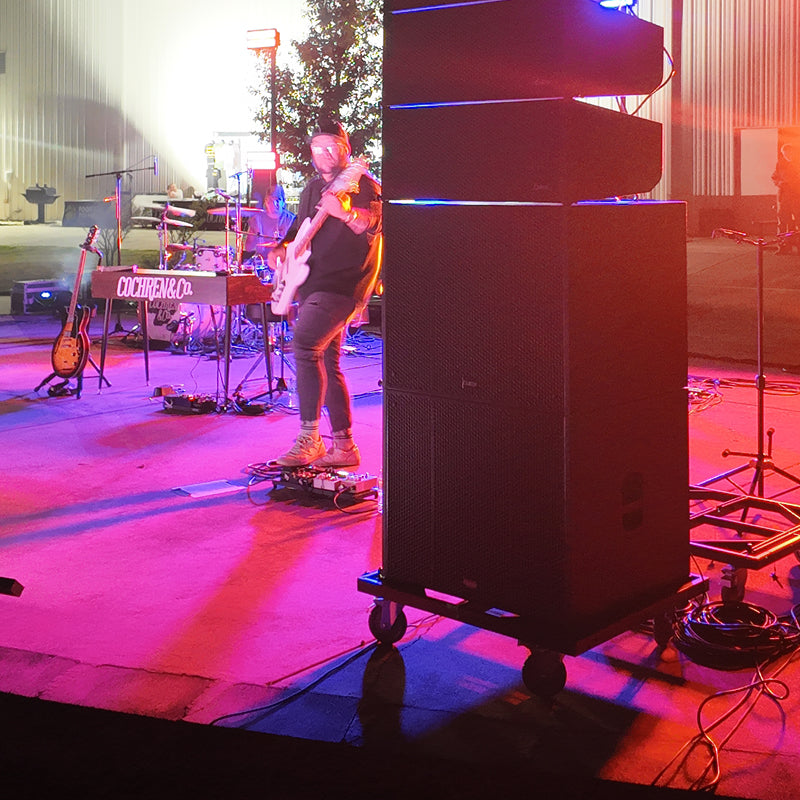

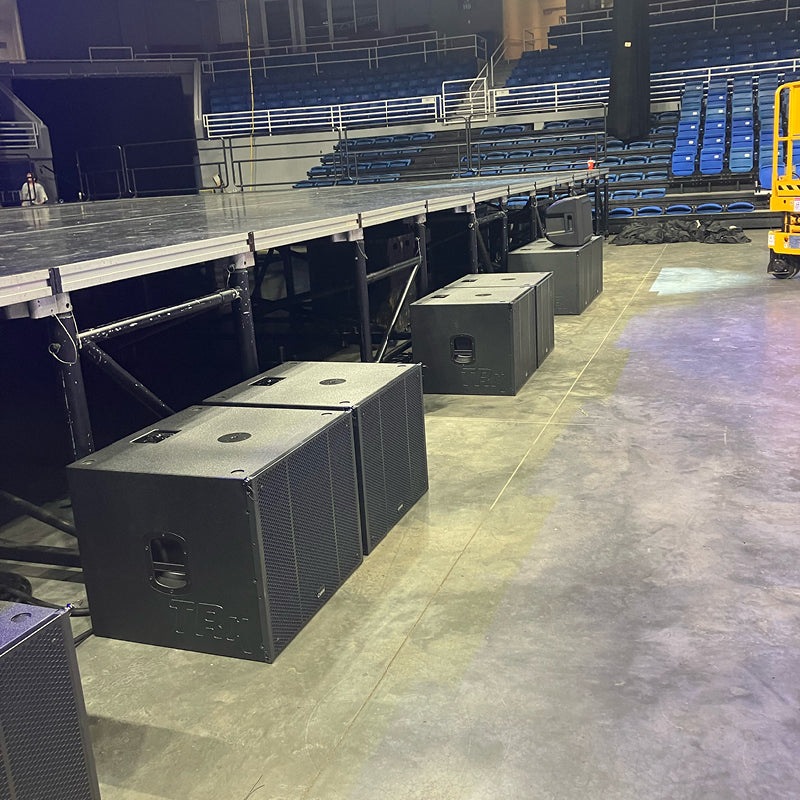

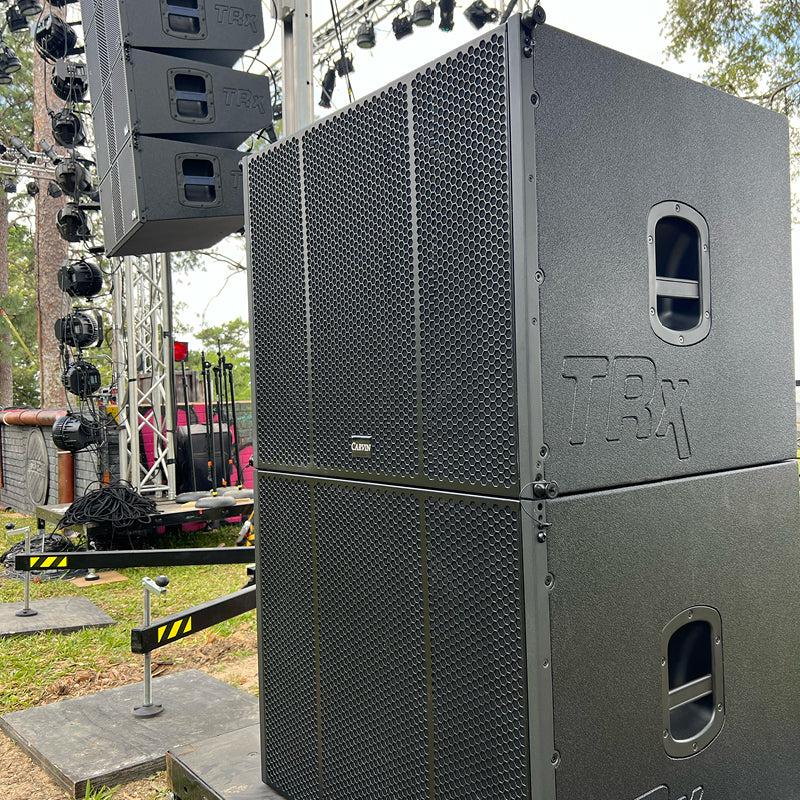

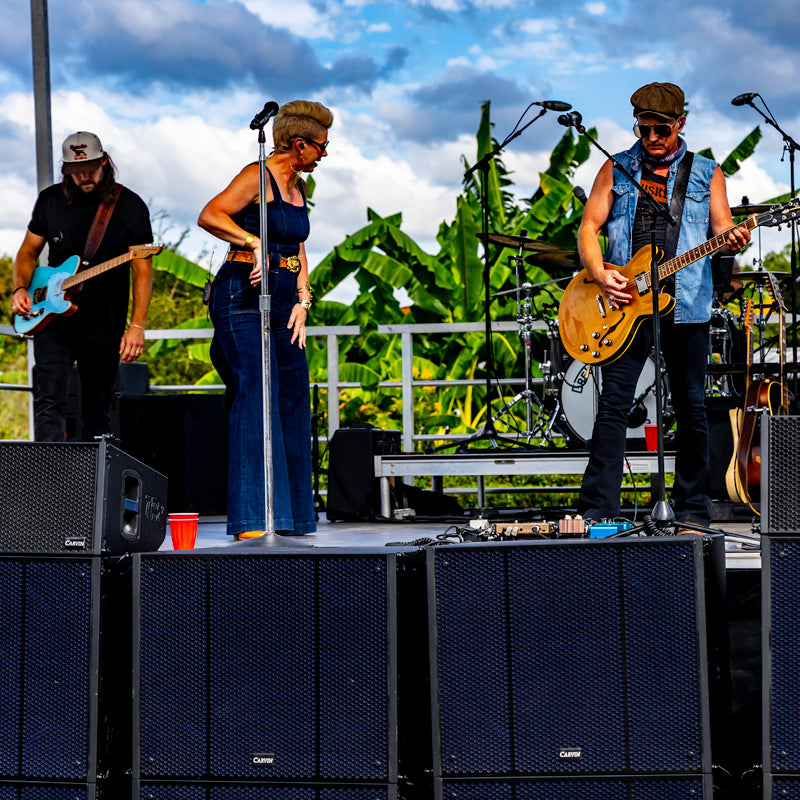

The foundation of the TRx5000 Series is the TRx5118AF, a high-output active subwoofer engineered to deliver deep, controlled low-frequency performance from compact venue deployments to large-scale concert systems.
Active 18-inch Subwoofer
User Manual
Download the product user manual here
EASE Data
Download the EASE acoustic modeling data here
Don't take our word for it. Hear what sound professionals are saying about the TRx5000 Series
"I’ve listened to a lot of the newer line array systems, from a variety of brands, and Carvin is definitely among the best that I’ve heard. No missing frequencies and no lack of punch. It seems like some of the other brands over-process the signal, leaving weak spots in the overall sound. No weak spots with the Carvin TRX 5000 Series and super easy to transport and deploy. The outdoor weather rating is a huge plus too. We currently have the TRX SYS4 system and we will add to our inventory to build that to a TRX SYS8 very soon. Our FOH engineers and clients both love the performance and sound of this system. Very competitive performance at a great price point!"
"Carvin's new TRX line array is an amazing and innovative new design. They embraced real world challenges, by addressing outdoor weather concerns while maintaining the tonality of the drivers, keeping them robust and articulate, with no need to panic when the rain comes to your gig! Deployment and versatility for multiple box setups. World class DSP and balanced power per box! The full spectrum of sound flows smoothly from this rig straight out of the box! It truly is plug and play! Did I mention the output? Fully capable of massaging internal body parts, without distortion! This rig is truly about presence and sound pressure! "
Every venue is different. Every audience size demands a different approach.
That’s why the TRx5000 Series is designed as a scalable, modular system—so you can deploy exactly what you need today and expand tomorrow without replacing your core investment.
A compact, high-performance line array solution for smaller outdoor events, houses of worship, and corporate productions. This system delivers exceptional vocal clarity, controlled vertical coverage, and impactful low end—all with a fast setup and minimal footprint.
Why it works:
Ground-stacked or flown, the Small System provides professional line array performance without overbuilding the room, making it perfect for portable and repeat-use deployments.
Designed for mid-size outdoor venues, civic events, and regional touring, the Medium Venue System adds increased throw, higher SPL, and deeper low-frequency impact while remaining efficient on power and crew requirements.
Why it works:
With more array elements and additional subwoofer support, this system maintains consistent sound pressure from front of house to the back of the audience—without sacrificing clarity or control.
Contact one of our sound system professionals today.

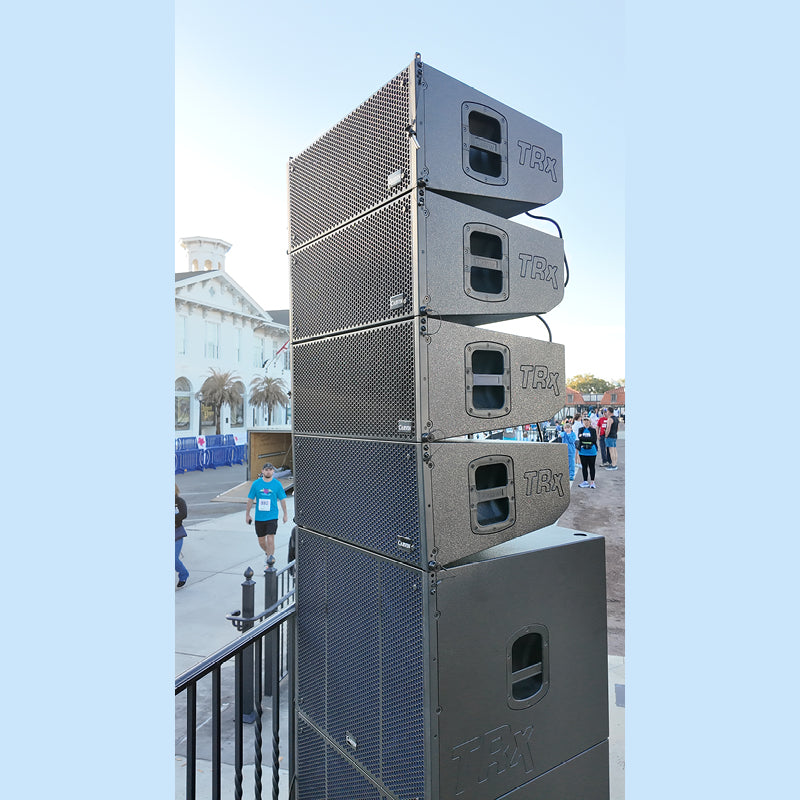

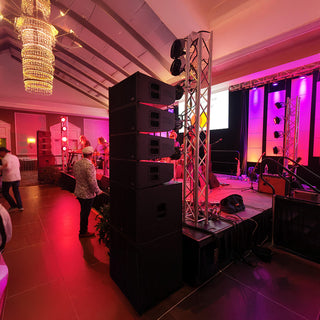

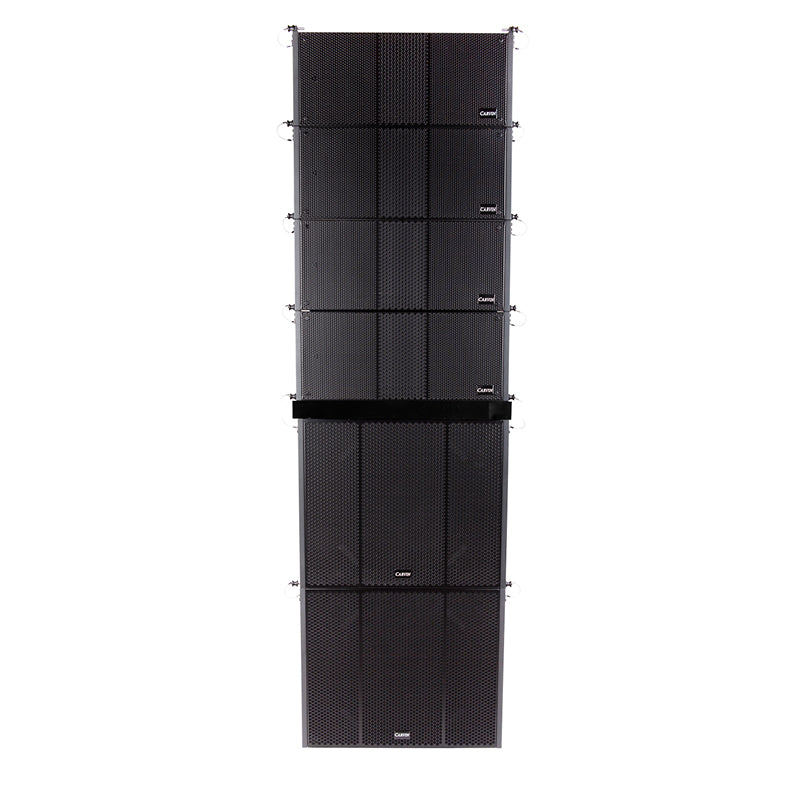

The TRx5210AN is designed for fast, secure ground-stacked deployments, supporting up to four line array elements on one or two TRx5118AF subwoofers per side. Integrated rigging hardware and quick-release pins allow precise vertical aiming with three selectable angles—5° upward, 0°, or 3° downward—making it easy to optimize coverage for audience distance and stage height.

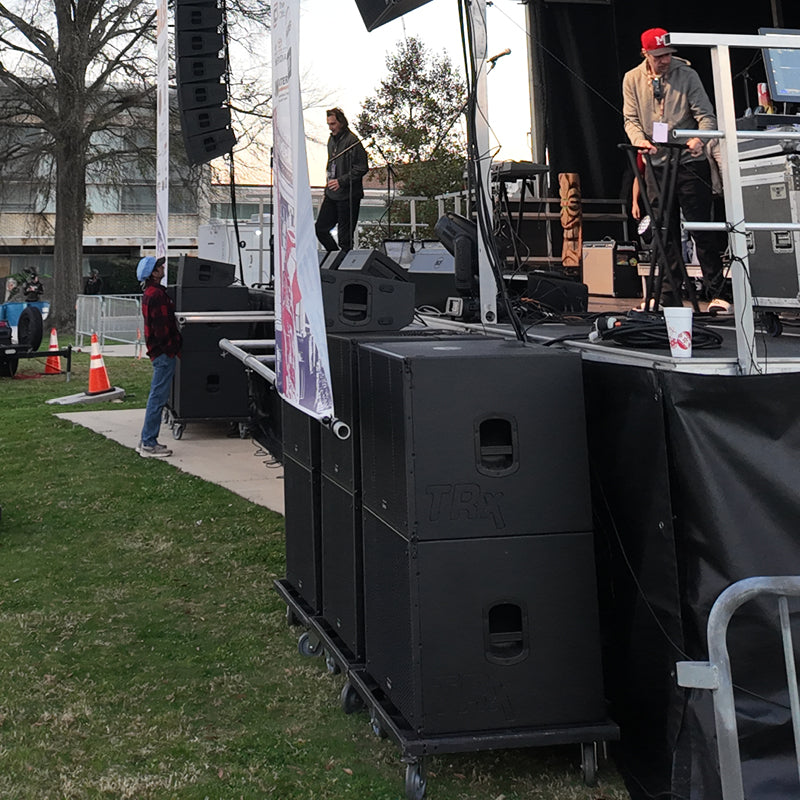

The TRx5118AF is designed for secure, efficient ground-stacked deployment with TRx5210AN line array elements. Quick-release pin hardware allows up to four array elements to be safely mounted above one or two subwoofers per side, creating a stable, high-performance stack for portable and outdoor applications. This configuration delivers controlled low-frequency reinforcement while maintaining precise vertical coverage.

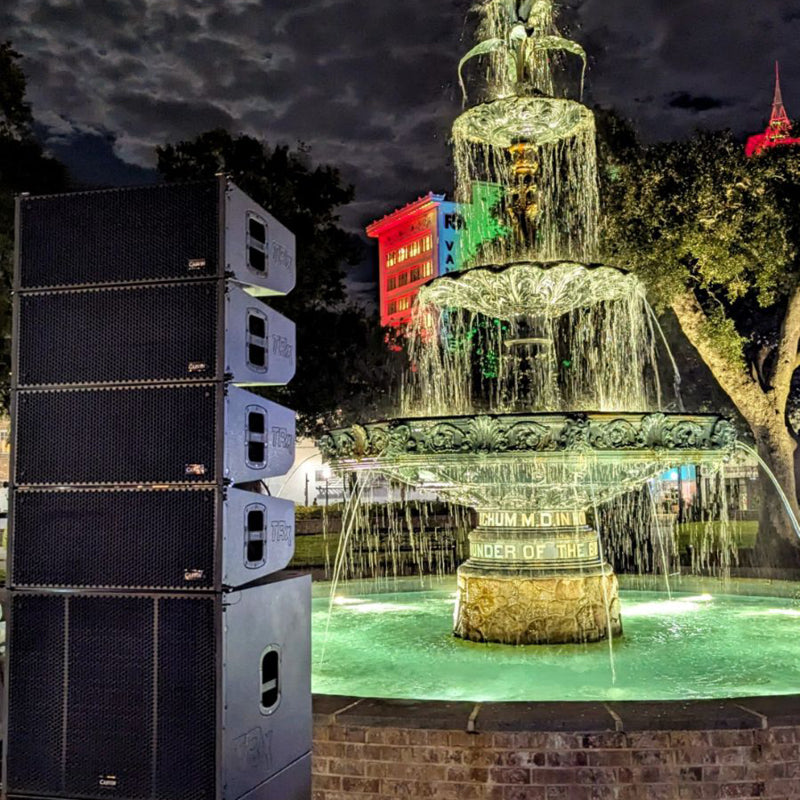

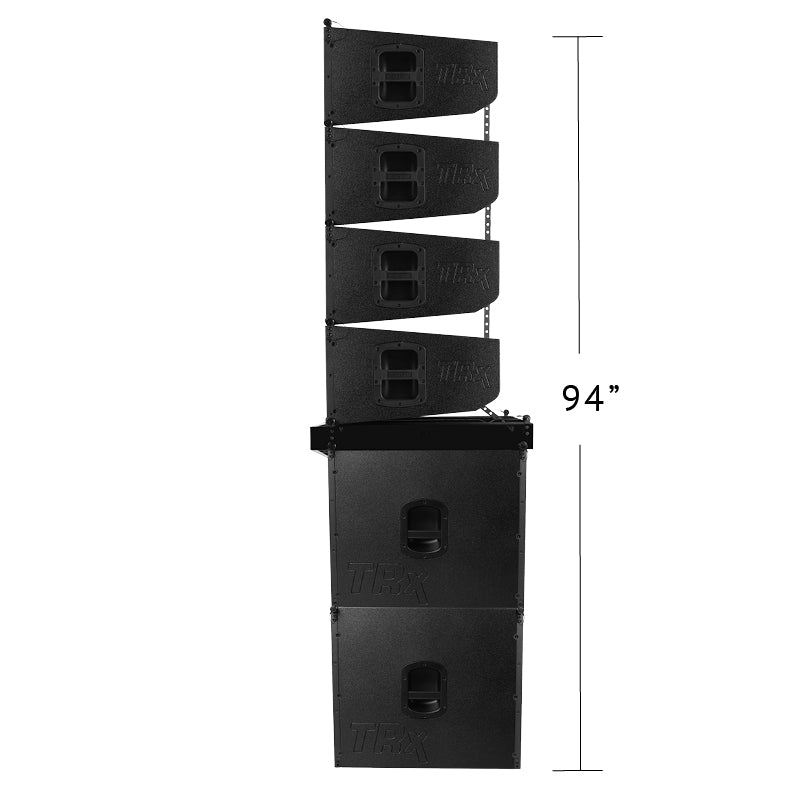

Ground stack configuration with four TRx5210AN elements reaches approximately 94 inches, providing improved vertical coverage and audience sight lines.
All TRx5000 Series systems are engineered for reliable performance in demanding environments, featuring IP45 ingress protection across enclosures and electronics. A thick DURATEX™ polyurethane finish provides long-term UV and moisture resistance, while moisture-treated components ensure consistent performance in outdoor and high-humidity conditions.
Water-treated steel grilles, protected rear amplifier panels with integrated rain hoods, and watertight POWERX™ AC connections support dependable operation in changing weather. For permanent outdoor installations, an optional rain box is available to provide enhanced environmental protection.
The TRx5000 transport system is designed to reduce handling time, protect equipment, and streamline load-ins from truck to stage. Pre-rigged dolly configurations and efficient truck-pack dimensions make large systems faster to move, easier to manage, and more cost-effective to deploy.
Up to four TRx5210AN line array elements can be secured to the DB521018 steel transport dolly in a pre-rigged configuration, allowing fast movement from truck to stage with minimal handling. Quick-release pin connections keep cabinets locked and aligned, reducing setup time and protecting components during transport. The DB521018 features 5" caster wheels.

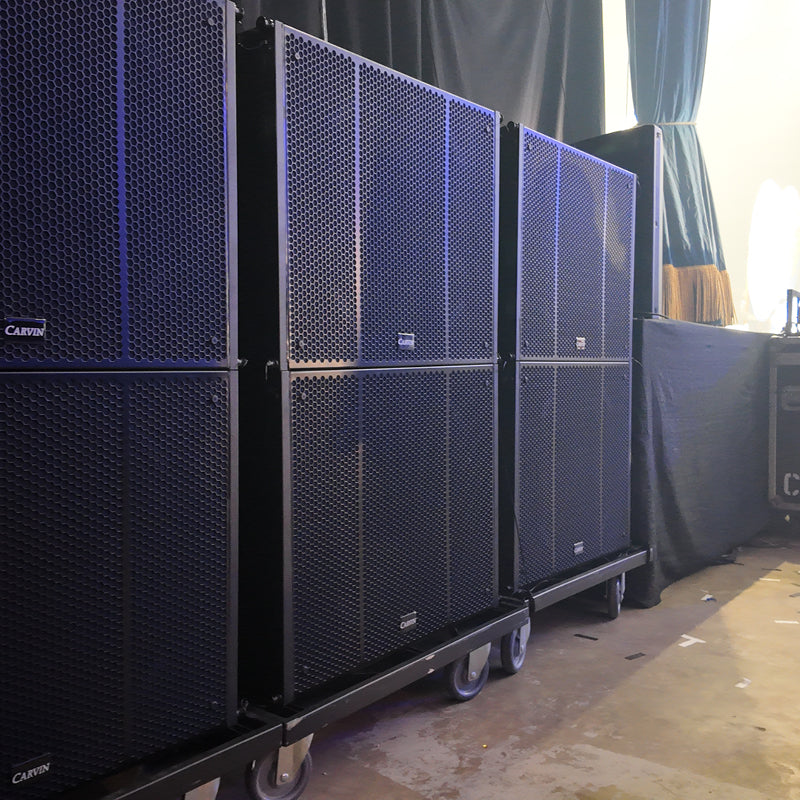

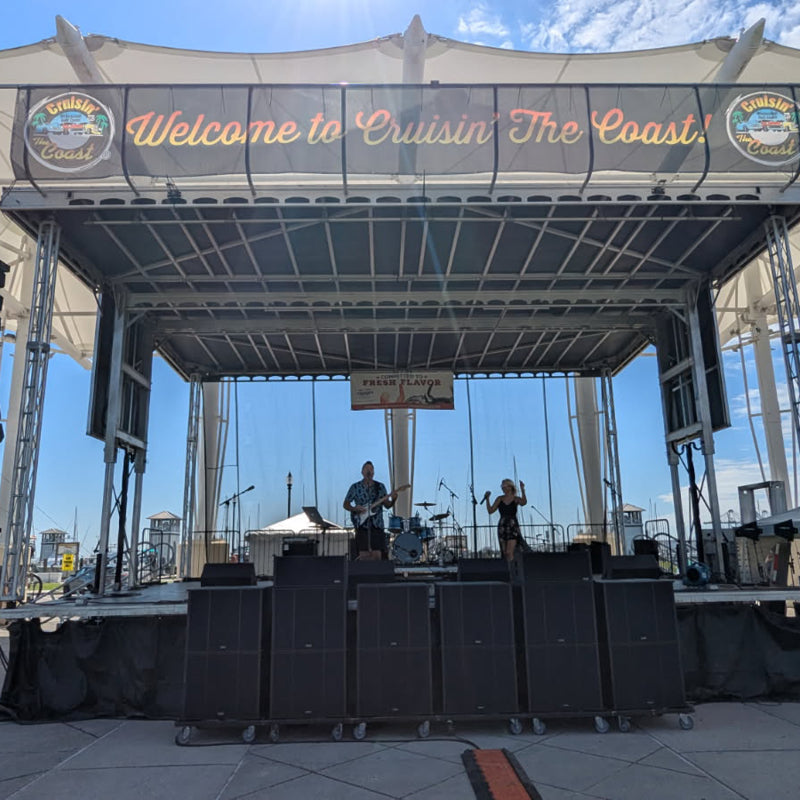

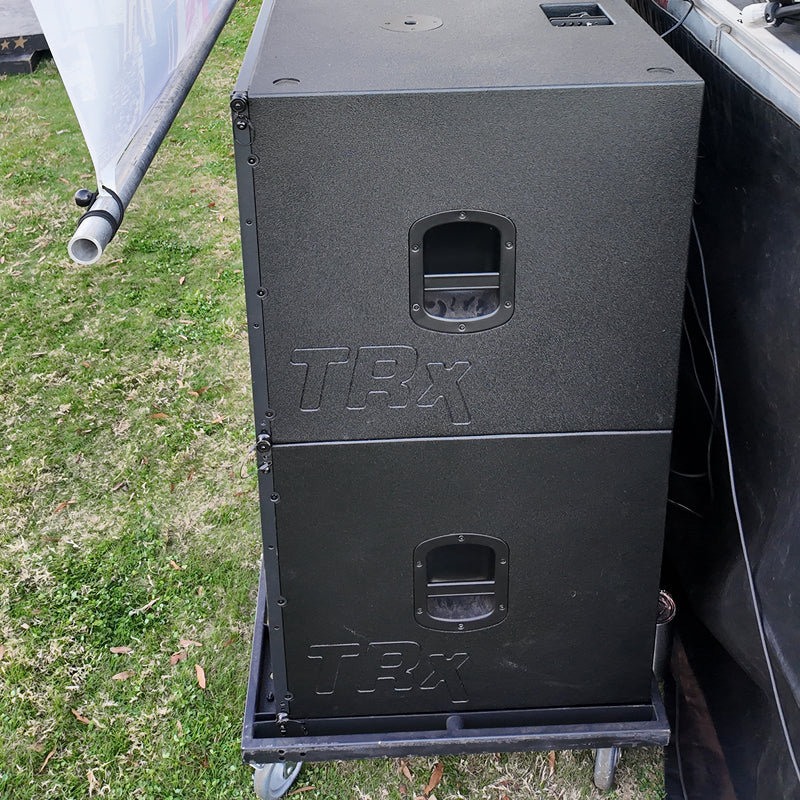

The same DB521018 dolly accommodates two TRx5118AF subwoofers, securely pinned together for stable transport and efficient load-ins. This paired configuration simplifies handling of dual-sub stacks while keeping the system organized and ready for deployment. The DB521018 features 5" caster wheels.
The TRx5000 system packs efficiently for touring and production workflows. This compact footprint allows up to 12 TRx5210AN line array elements or 6 TRx5118A subwoofers to fit in a single row—maximizing truck space while minimizing load time.
EASE acoustic modeling data is available for the TRx5210AN and TRx5118AF, allowing system designers and engineers to accurately predict coverage, SPL distribution, and venue performance before deployment. For use with Ease Focus and EASE 5.
The DB521018 transport dolly is a heavy-duty steel rolling platform designed for efficient movement of the TRx5000 system. It securely accommodates up to four TRx5210AN line array elements or two TRx5118A/AF subwoofers in a pre-rigged configuration, reducing handling time and streamlining load-ins and load-outs.

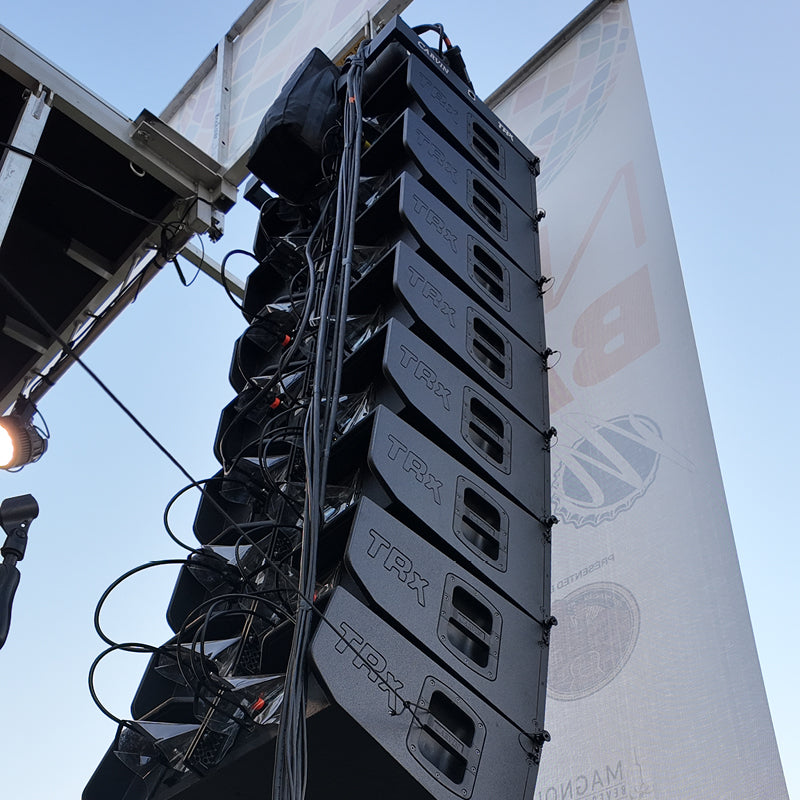

The TRx5000FLY fly bumper is engineered for safely suspending TRx5210AN line array elements in flown configurations. Designed to support up to 16 elements per side, it integrates with the SureFly™ rigging system and provides secure, predictable array deployment for touring and permanent installations. The TRx5000FLY is also used as the base to ground stack 4 TRx5210AN elements on top of the TRx5118AF subwoofer.
The XLR5210JUMP is a signal jumper cable designed to link multiple TRx5210AN line array elements via XLR input and thru connections. It enables clean, organized signal distribution across the array for fast and efficient setup.
The POWERX5210JUMP is a weather-resistant AC jumper cable designed to connect multiple TRx5210AN elements using locking POWERX™ connectors. It supports safe, efficient power distribution while maintaining the system’s IP-rated integrity.
The TRx5210ARAINBOX is a protective amplifier enclosure designed for permanent outdoor installations of the TRx5210AN line array element. It shields the rear amplifier and connection panel from direct exposure to rain, moisture, and harsh environmental conditions, helping ensure long-term system reliability. Ideal for stadiums, amphitheaters, houses of worship, and fixed outdoor venues, the rain box provides enhanced environmental protection for continuous outdoor operation.
The QPTRX rigging pins are precision-machined quick-release hardware designed for secure mechanical connection between TRx5000 Series components. Engineered for strength and repeatable deployment, QPTRX pins ensure fast assembly, safe suspension, and stable ground-stacked configurations.
The DB521018 transport dolly is a heavy-duty steel rolling platform designed for efficient movement of the TRx5000 system. It securely accommodates up to four TRx5210AN line array elements or two TRx5118A/AF subwoofers in a pre-rigged configuration, reducing handling time and streamlining load-ins and load-outs.
The TRx5000FLY fly bumper is engineered for safely suspending TRx5210AN line array elements in flown configurations. Designed to support up to 16 elements per side, it integrates with the SureFly™ rigging system and provides secure, predictable array deployment for touring and permanent installations. The TRx5000FLY is also used as the base to ground stack 4 TRx5210AN elements on top of the TRx5118AF subwoofer.
The TRx5118ARAINBOX is a protective amplifier enclosure designed specifically for permanent outdoor installations of the TRx5118AF subwoofer. It shields the rear amplifier panel from direct exposure to rain, moisture, and harsh environmental conditions, helping maintain long-term reliability in fixed outdoor deployments. Ideal for stadiums, amphitheaters, and installed venue systems, the rain box provides an added layer of protection where continuous outdoor operation is required.

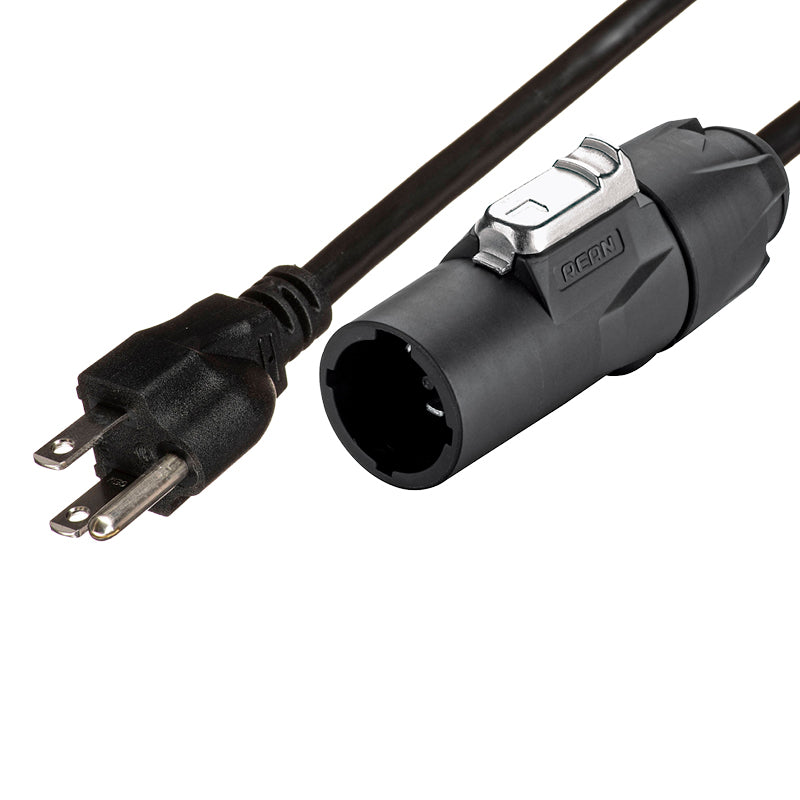

The POWERX5118A is a locking, IP-rated AC power cable designed specifically for the TRx5118AF subwoofer. It provides secure, weather-resistant power connection for reliable operation in touring, outdoor, and permanent installation environments.
The POWERX5118AJUMP enables secure AC power daisy-chaining between TRx5118AF subwoofers using IP-rated POWERX™ connectors. It simplifies power management while preserving reliable, weather-resistant operation.
The XLR5118JUMP provides reliable signal daisy-chaining between TRx5118AF subwoofers. Built for professional touring and installation use, it ensures consistent audio distribution across stacked or distributed sub configurations.
The QPTRX rigging pins are precision-machined quick-release hardware designed for secure mechanical connection between TRx5000 Series components. Engineered for strength and repeatable deployment, QPTRX pins ensure fast assembly, safe suspension, and stable ground-stacked configurations.
