TS10N-8 600W 10-Inch Woofer

*ALL SALES FINAL ON THIS SPEAKER PART. REFUND NOT AVAILABLE*

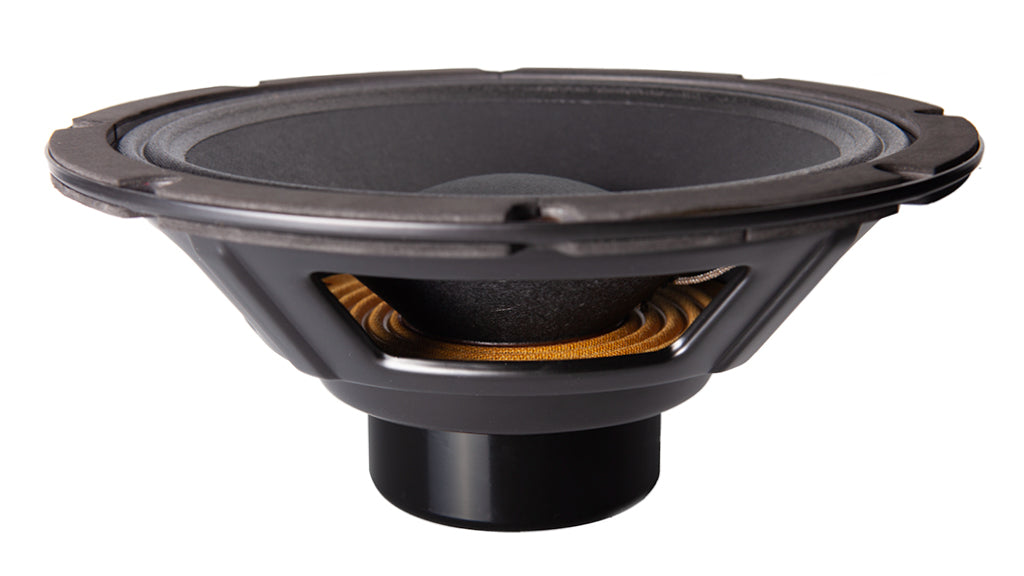

The TS10N-8 speaker part is an 10-Inch 600W woofer used in the Carvin TRx5210AN Active Line Array. Features a large 63mm 2.5” copper voice coil with IP45 water resistance cones with extended bass to 60Hz. Premium neodymium magnet is standard.

TS10N-8 Specifications:

Frequency Response : 61Hz - 3kHz (-10dB)
Power : 300 Watts RMS
Sensitivity: 96dB 1W/1m
Magnet Structure : Neodymium
Basket Frame : Cast
Voice Coil : 2.5-inch
Impedance : 8 Ohms
NetWt  : 4 lbs
Warranty: 90 Days

Mechanical Specifications:

Overall Diameter: 260mm
Baffle Cutout Diameter: 244mm
Depth: 110mm

Thiele & Small Parameters:

FS(Hz): 61
Re(Ω): 5.1
Qes: 0.37
Qms: 4.2
Qts: 0.34
Vas(L): 28
Sd(m2): 339
Mms(gr): 38.1
B1: 14.1
Le@1K(mH): .677
Mmd(gr): 34.5
Cms(mm/N): 0.17
Rms(kg/s): 3.52
