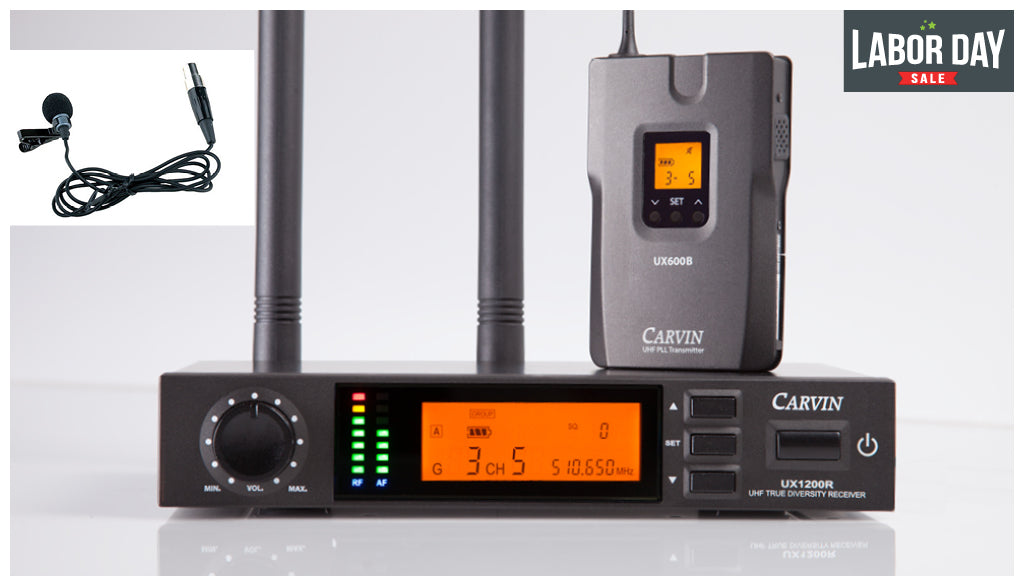

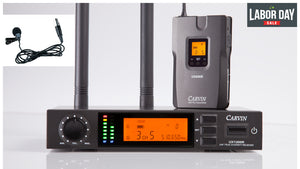

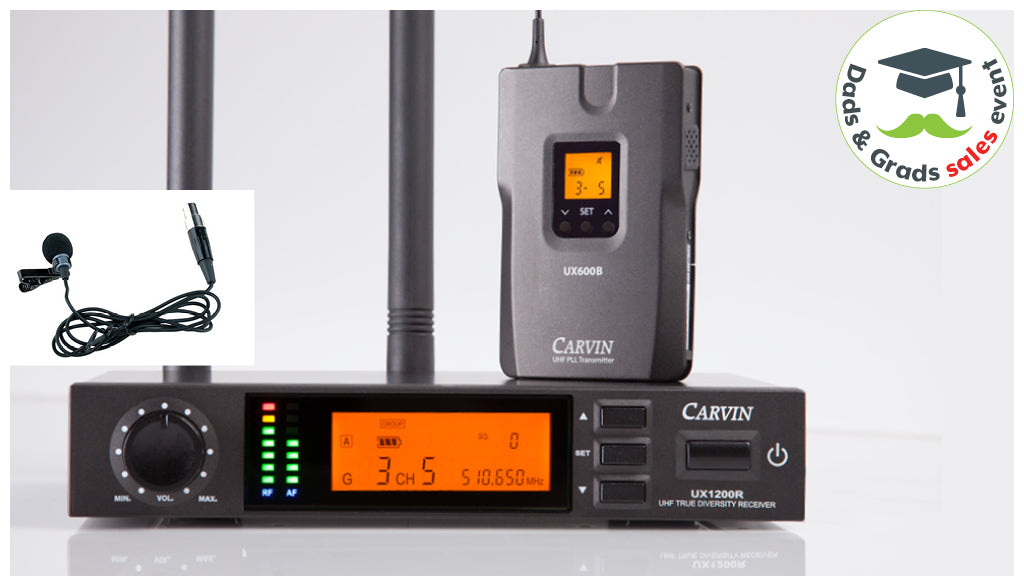

1 UX1200R Wireless Receiver (506 MHz - 542 MHz)
1 UX-LP1 Lapel Microphone
1 UX600B Beltpack Transmitter
Experience the freedom to move about the stage without the constrains of a wired microphone with the UX1200LP1 Wireless Lapel System, which is the ideal solution for spoken word presentations.
The UX-LP1 Lavalier microphone is designed for speaking engagements where high intelligibility is required while maintaining a natural sound with crisp highs and defined low end. The UX-LP1 compact design allows for discreet placement on the speaker or presenter so the microphone will not distract from the person delivering the spoken word.
» Designed for persons giving a spoken presentation or lecture.
» Compact design allows for discreet positioning.
» Excellent alternative for presenters and speakers not wanting a headset mic.
» Included alligator style clip allows for easy positioning on a tie or lapel.
» 4-Pin TA4F style connector works with Carvin UX, SHURE and Anchor Audio systems.
One UX1200B can serve as 3 different workhorses in your inventory. Choose different accessories such as the PERFORMER 1T tan over ear headset microphone (also available in black), the UX-LP1 lavalier microphone or the UX-GT 1/4-inch instrument cable.
»Type: Lavalier Microphone
»Polar Pattern: Cardioid
»Frequency Response: 100Hz-15kHz
»Sensitivity (1kHz): -60dB, (1mV)
»Impedance: 2.2k ohms
»Connector Type: TA4F 4-Pin
»Cable Length : 58.75" (150cm)
»Mic Windscreen Included : Yes
»Warranty: 90 Days
UX1200R Receiver Specifications:
» Simultaneous Channels in Operation : 14
» System Type : Analog
» Group / Channel Selections : 6 Groups of 23 Channels
» Channel selection : Auto and Manual ( In .025MHz increment)
» RF Frequency Band : 506MHz - 542MHz
» RF Bandwidth : 36MHz
» Reception Format : True Diversity, PLL Synthesized
» Audio Output : XLR and 1/4-Inch outputs
» Receiver Type : Table Top or Rack mount
» Warranty: 90 Days
UX600B Belt Pack Transmitter Specifications :
» Input Connector: TA4F 4-pin XLR
» Frequency Response: 40Hz ‰ÛÒ 18kHz
» RF Output Level : 10mW or 50mW
» Battery : 2x AA, Not Included
» Lighted Mute Indicator: Yes
» Backlit Display: Yes
» Group and Frequency Selection : Yes, Manual and Auto Scan
» Sensitivity Adjust : Yes , -18dB /+12dB (3dB steps)
» Attenuation Control : Yes- Helps to manage extreme SPL input
» Lock Out : Yes
» Microphone Accessories : UX-HM3(Black), UX-HM3T(Tan), UX-LP1, UX-GT
» Warranty: 90 Days
