$1,799.00
| /

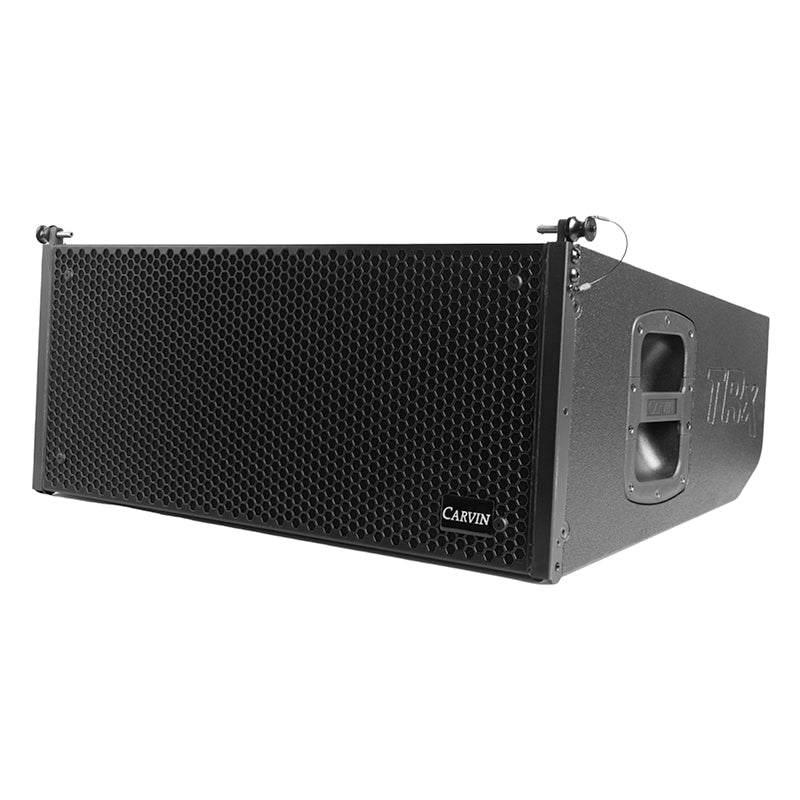

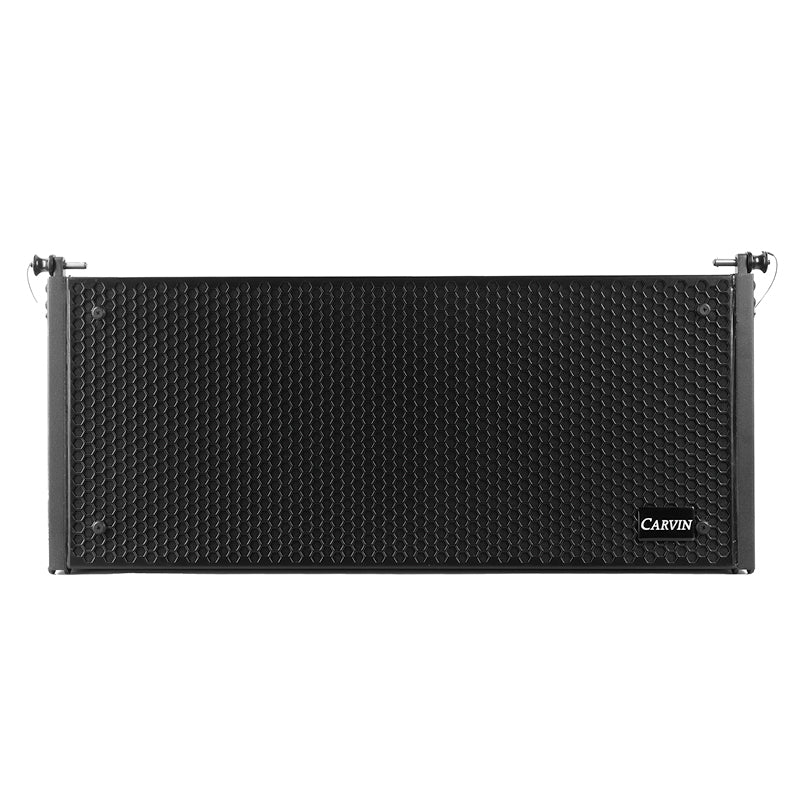

The TRx5210AN element is a trapezoidal design that provides smooth, mid-field projection. Its advanced design evolving from Carvin’s previous models offers extended high frequency resolution with a new PurePath™ wave-guide lens, 3-inch voice coil, and 1.5-inch exit HF driver. The low-end performance is provided by two Neodymium 10-inch transducers. The ALL DSP™ enhances vocals and instruments offering crystal-clear, natural acoustics right out of the box with no special turning required. Up to 130 dB with 100º horizontal distribution offers high level projection for large audiences.
User Manual
Download the product user manual here
EASE Data
Download the EASE acoustic modeling data here
The TRx5210AN delivers high-impact output, smooth mid-field coverage, and integrated DSP control — all in a rugged, weather-ready enclosure.

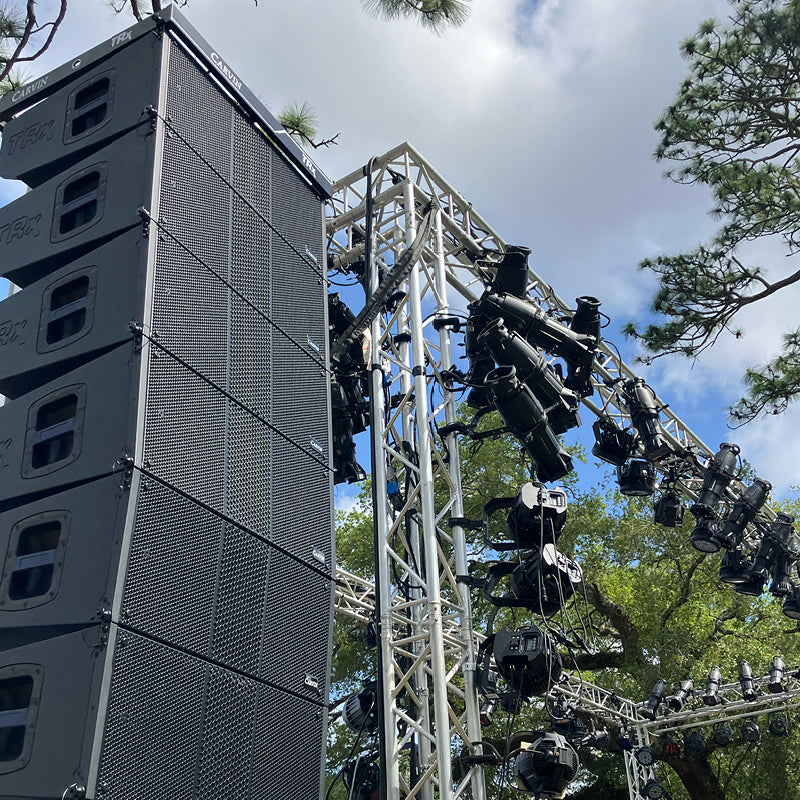

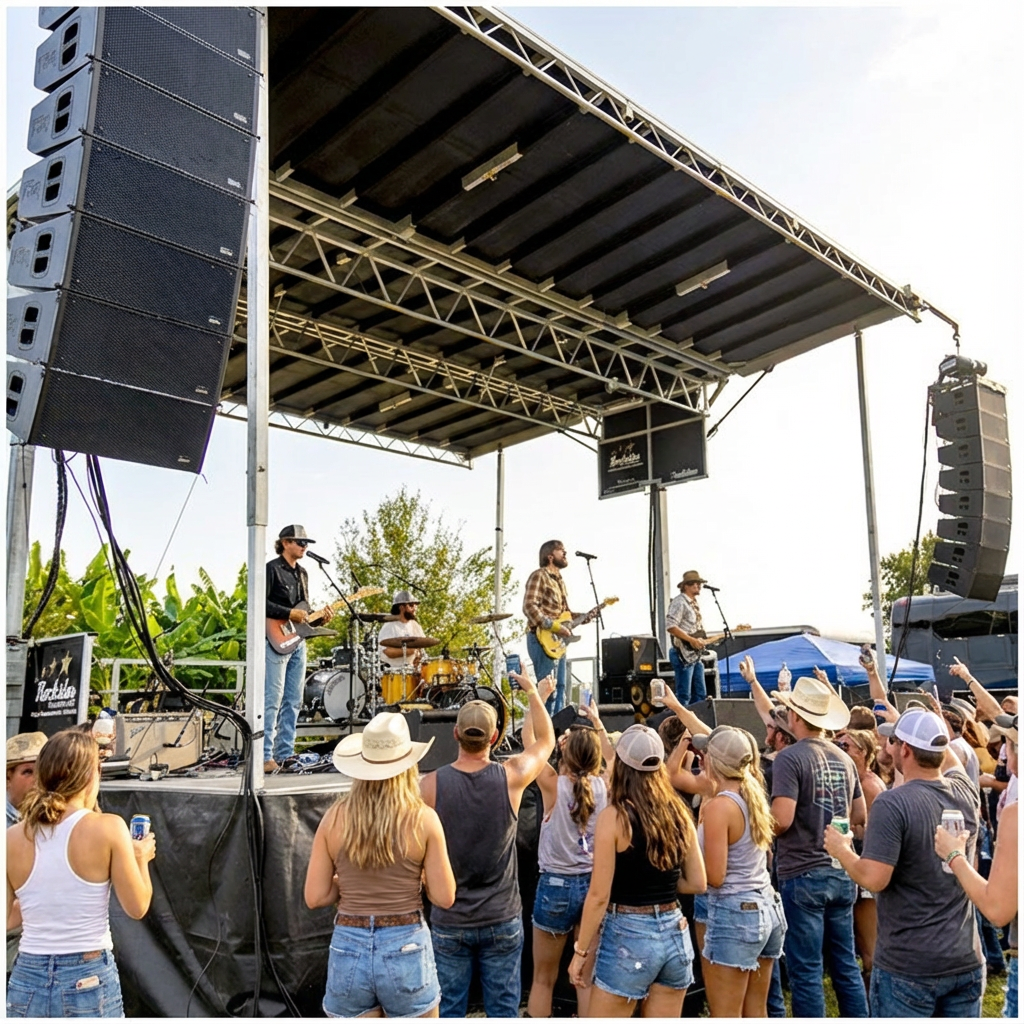

Outdoor Concerts & Festivals

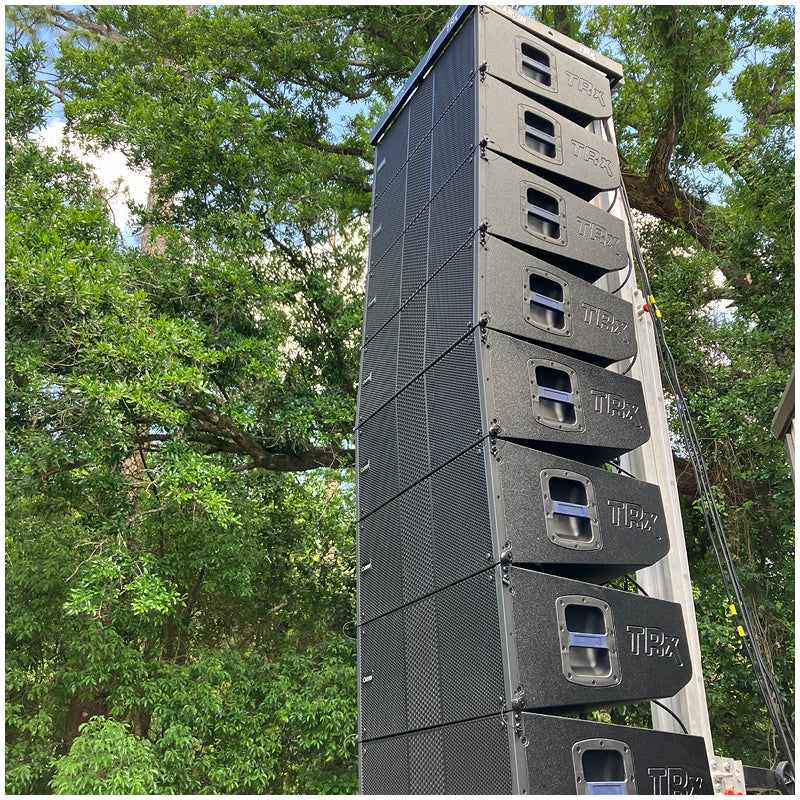

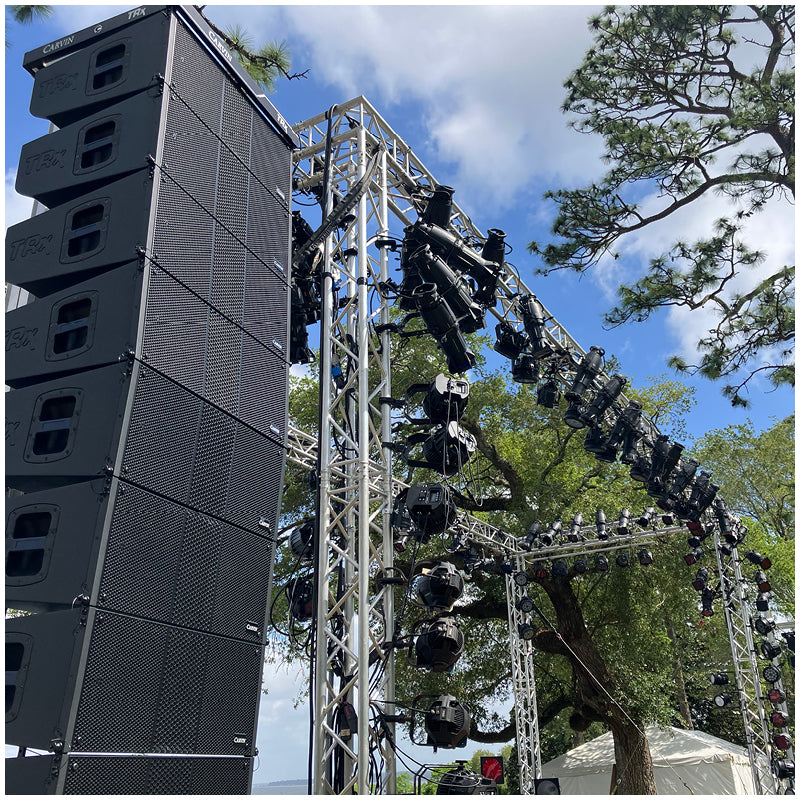

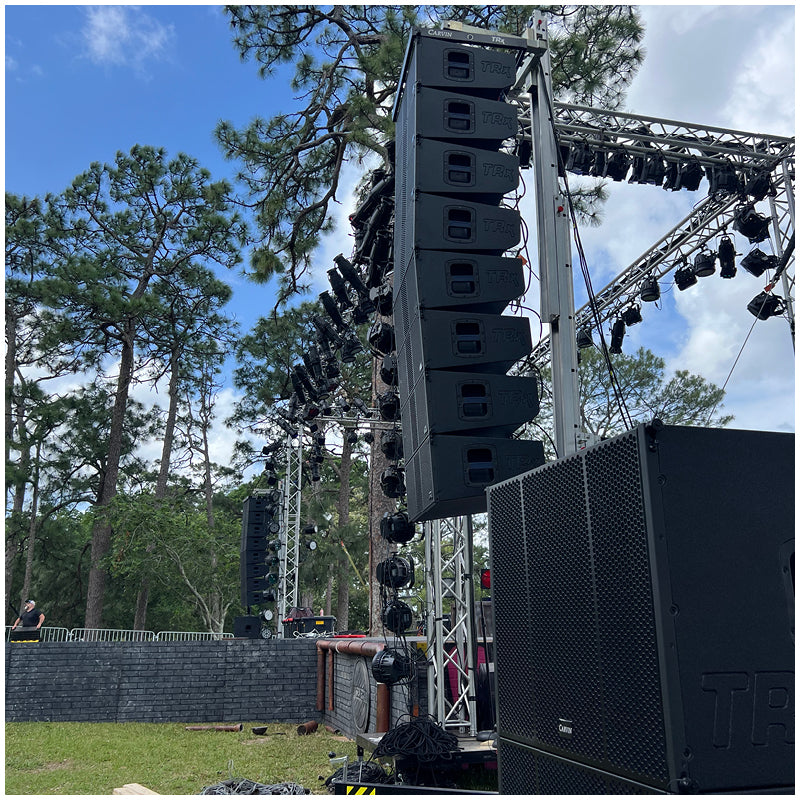

Designed to perform in demanding outdoor environments, the TRx5210AN delivers high SPL and long-throw clarity while maintaining consistent coverage from front-of-house to the far field. The IP45 weather-rated enclosure, sealed connectors, and rain-protected amplifier module make it reliable in changing conditions—ideal for festivals, city events, and open-air stages where performance can’t stop for the weather.
Houses of Worship
Clean vocal intelligibility and controlled vertical dispersion make the TRx5210AN well-suited for modern worship spaces. The line array format helps reduce reflections and hot spots while maintaining even coverage across seating areas. Factory DSP presets simplify operation, allowing volunteers and staff to achieve consistent results without complex tuning.
Corporate & Civic Events
From keynote presentations to live entertainment, the TRx5210AN provides clear speech reproduction and musical headroom in a wide range of room sizes. Its scalable design allows systems to be right-sized for ballrooms, convention centers, and outdoor civic spaces, while integrated amplification and DSP reduce setup time and external equipment requirements.
Touring & Rental Systems
Built for repeatable deployments, the TRx5210AN combines fast rigging, predictable coverage, and efficient power usage. Lightweight neodymium drivers reduce handling fatigue, while quick-release rigging and transport dolly compatibility streamline load-ins and load-outs. Networked DSP ensures consistent performance from venue to venue, making it ideal for regional touring and production companies.
ALL DSPâ„¢ provides full system control over an Ethernet network, allowing engineers to monitor, tune, and manage every element of the array from a centralized interface. Factory presets deliver optimized performance out of the box, while network access enables precise adjustment of EQ, delay, dynamics, and levels across the entire system
EASE acoustic modeling data is available for the TRx5210AN and TRx5118A, allowing system designers and engineers to accurately predict coverage, SPL distribution, and venue performance before deployment. For use with Ease Focus and EASE 5

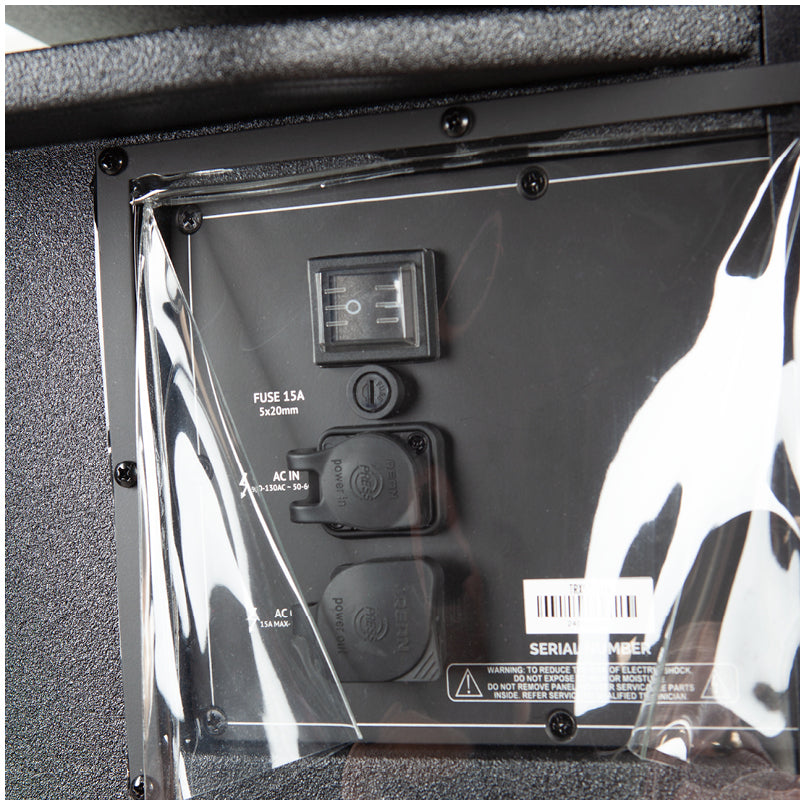

Each TRx5210AN is powered by dual Class-D amplifiers (1000W LF and 550W HF) providing clean headroom and controlled dynamics at high output levels. High efficiency amplification allows up to four elements per 120VAC / 20A circuit, while IP65-rated POWERXâ„¢ AC in/out connectors support secure, weather-resistant power.
Don't take our word for it. Hear what sound professionals are saying about the TRx5000 Series
"I’ve listened to a lot of the newer line array systems, from a variety of brands, and Carvin is definitely among the best that I’ve heard. No missing frequencies and no lack of punch. It seems like some of the other brands over-process the signal, leaving weak spots in the overall sound. No weak spots with the Carvin TRX 5000 Series and super easy to transport and deploy. The outdoor weather rating is a huge plus too. We currently have the TRX SYS4 system and we will add to our inventory to build that to a TRX SYS8 very soon. Our FOH engineers and clients both love the performance and sound of this system. Very competitive performance at a great price point!"
"Carvin's new TRX line array is an amazing and innovative new design. They embraced real world challenges, by addressing outdoor weather concerns while maintaining the tonality of the drivers, keeping them robust and articulate, with no need to panic when the rain comes to your gig! Deployment and versatility for multiple box setups. World class DSP and balanced power per box! The full spectrum of sound flows smoothly from this rig straight out of the box! It truly is plug and play! Did I mention the output? Fully capable of massaging internal body parts, without distortion! This rig is truly about presence and sound pressure! "

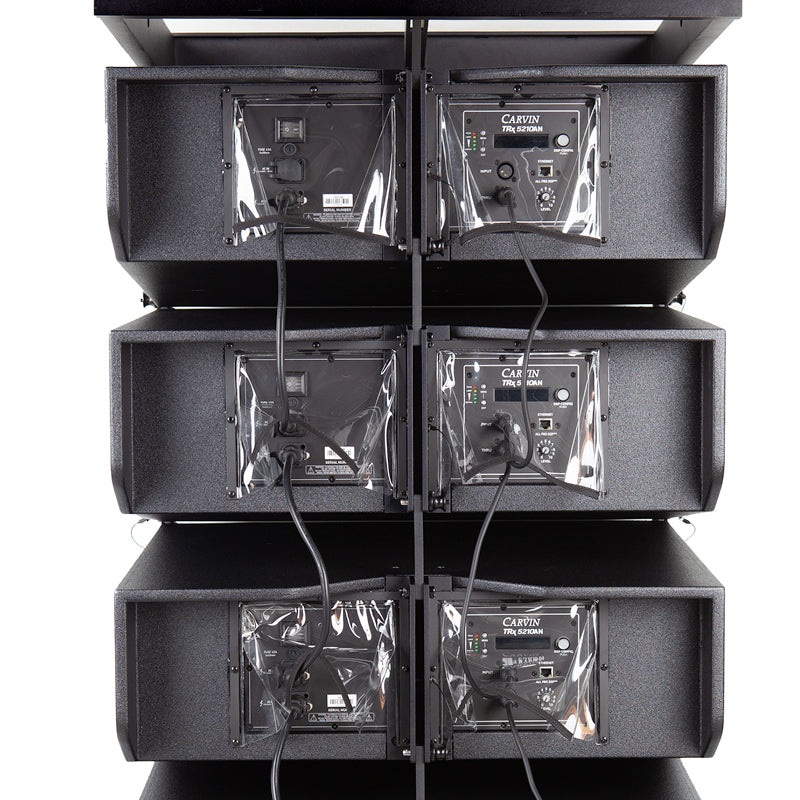

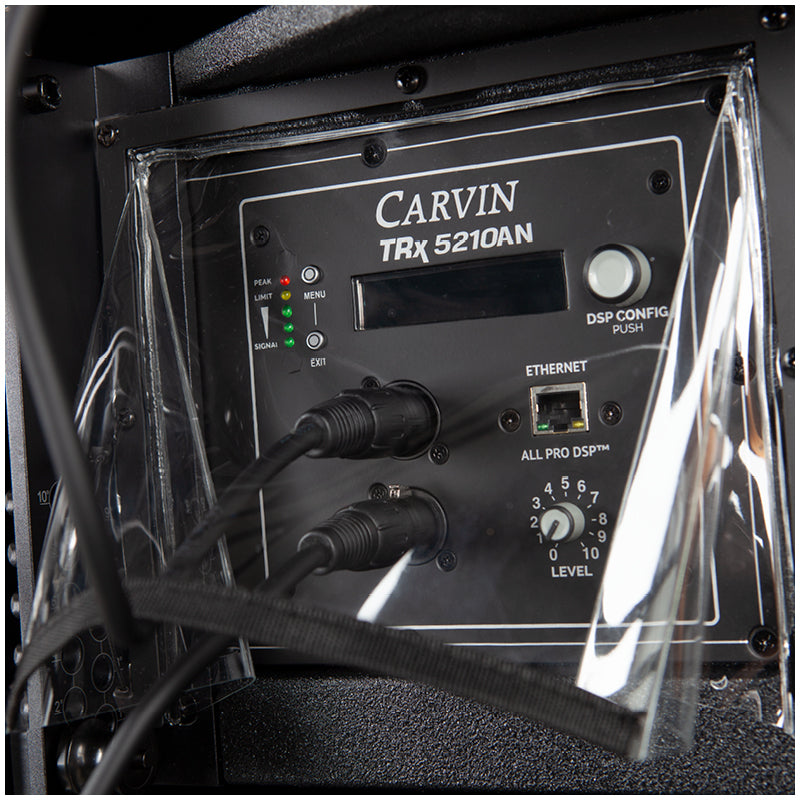

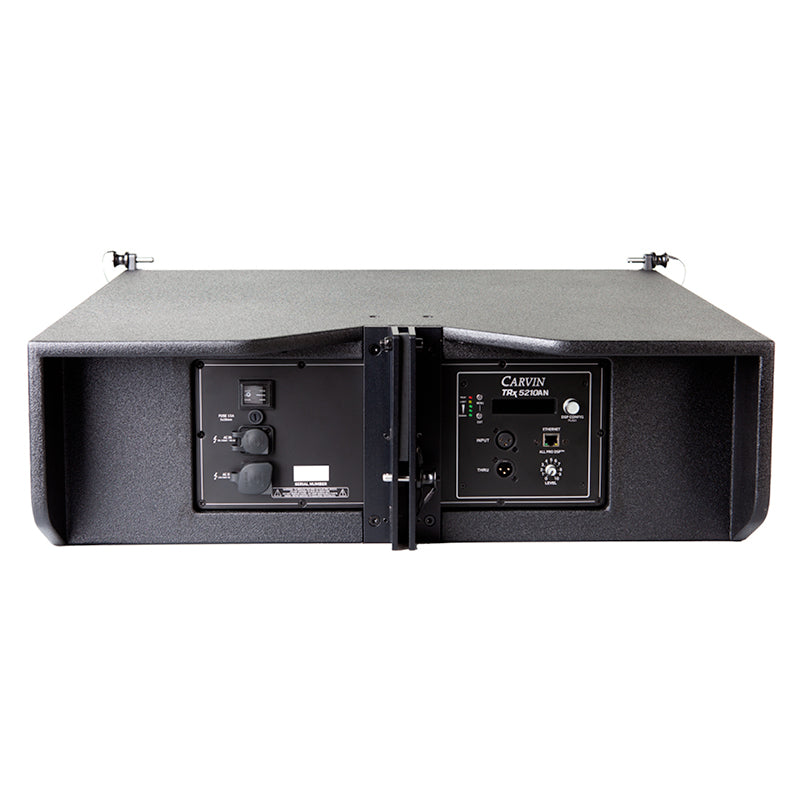

The TRx5210AN is built for reliable performance in demanding environments, with IP45 ingress protection standard across the enclosure and electronics. A thick DURATEXâ„¢ polyurethane finish provides long-term UV and moisture resistance, while the 10-inch neodymium woofers feature moisture-resistant cone coatings for consistent performance outdoors. Water-treated steel grilles, a protected rear amplifier panel with integrated rain hood, and watertight POWERXâ„¢ AC connections ensure dependable operation in changing conditions. For permanent outdoor installations, an optional rain box is available for full environmental protection.

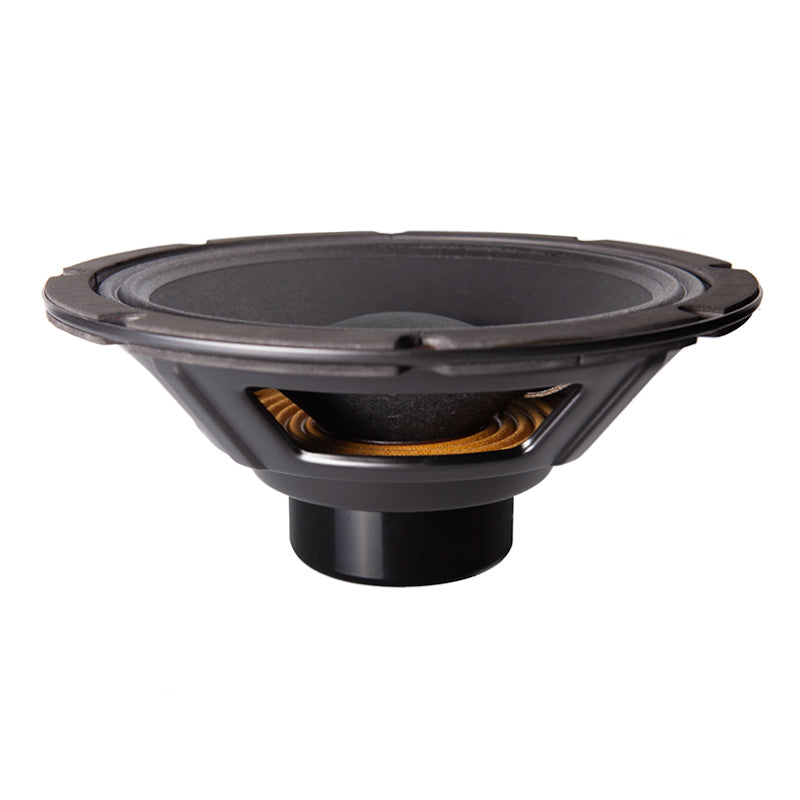

Each TRx5210AN is equipped with dual TS10N-8 10-inch woofers, engineered for high output, fast transient response, and consistent performance at scale. Large 63mm (2.5-inch) copper voice coils provide improved thermal handling and power compression resistance, allowing the system to maintain clarity and impact even during extended high-level operation.
The neodymium magnet structures reduce overall weight without sacrificing motor strength, making the enclosure easier to handle while preserving punch and efficiency. Moisture-resistant cones contribute to the system’s IP45 weather rating, ensuring reliable low-frequency performance in outdoor and exposed environments. Extended low-frequency response down to 60 Hz allows the TRx5210AN to deliver strong mid-bass definition and seamless integration with TRx5118A subwoofers.

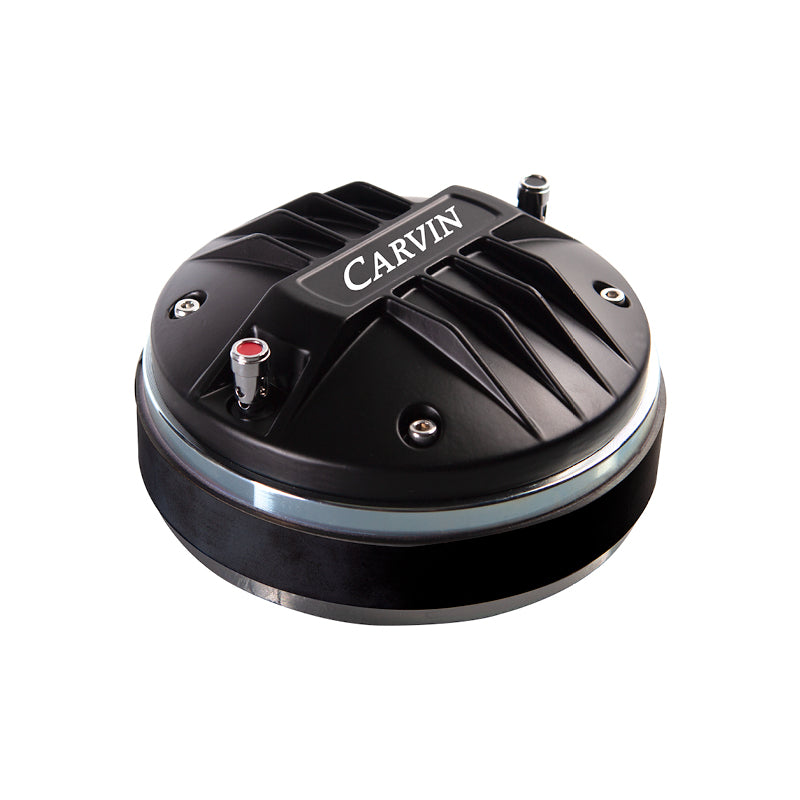

The TRx5210AN features the proprietary HF75-8 high-frequency compression driver, engineered for clean, articulate high-frequency reproduction and long-throw consistency in array configurations. A large 76mm (3-inch) copper voice coil improves power handling and thermal stability, allowing the driver to maintain clarity and headroom even at sustained high output levels.
The titanium diaphragm delivers fast transient response and extended high-frequency detail, while the 1.5-inch horn exit ensures efficient acoustic coupling into the PurePathâ„¢ waveguide lens. This optimized geometry maintains phase coherence between array elements, producing smooth, controlled high-frequency coverage with minimal distortion. The result is clear, intelligible sound that extends naturally to 20 kHz, remaining consistent from the front rows to the far field.

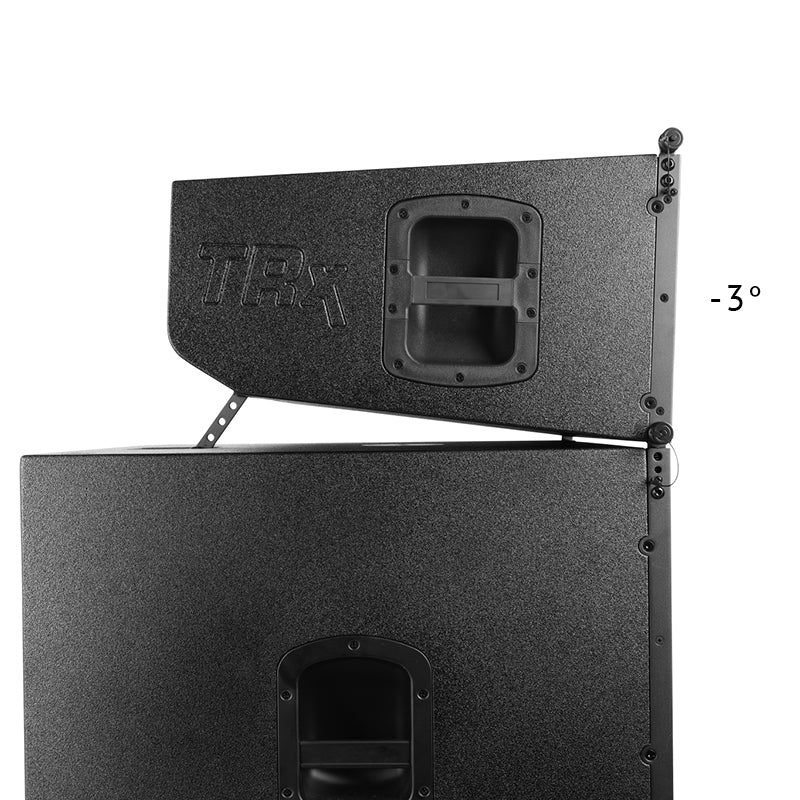

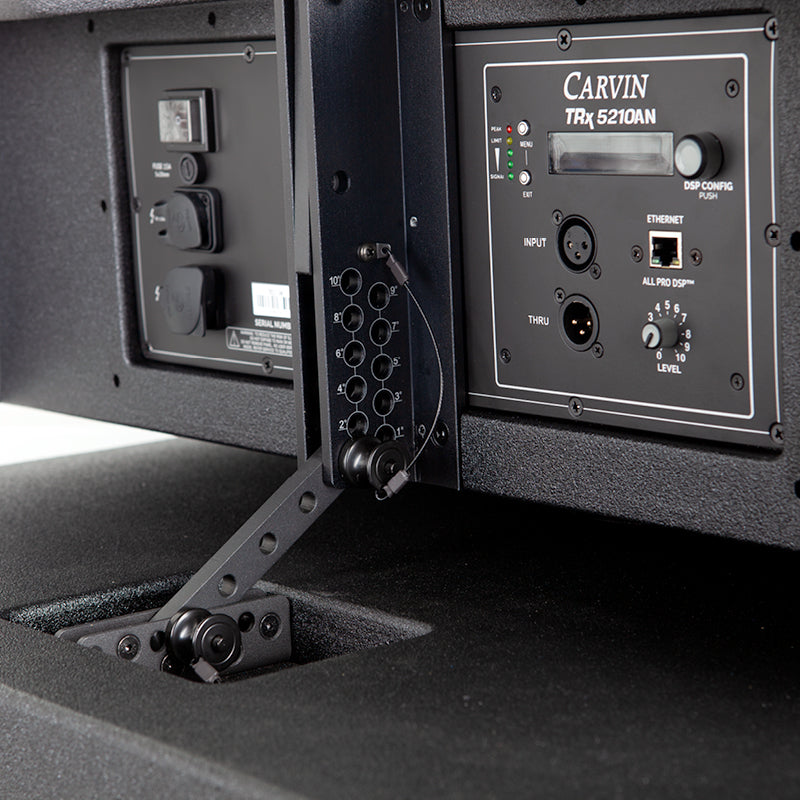

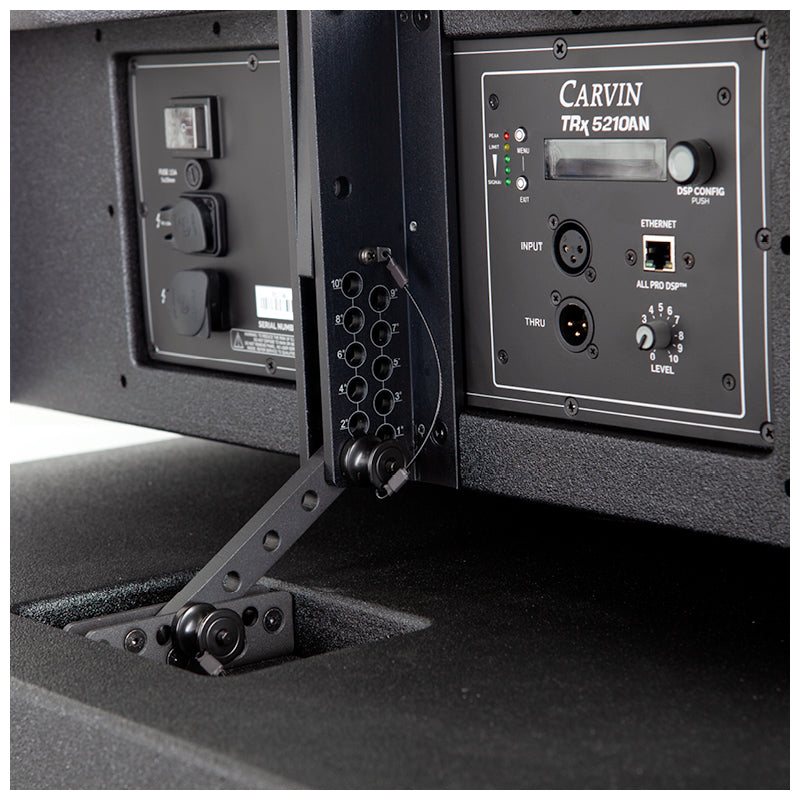

The TRx5210AN is designed for fast, secure ground-stacked deployments, supporting up to four line array elements on one or two TRx5118A subwoofers per side. Integrated rigging hardware and quick-release pins allow precise vertical aiming with three selectable angles—5° upward, 0°, or 3° downward—making it easy to optimize coverage for audience distance and stage height.

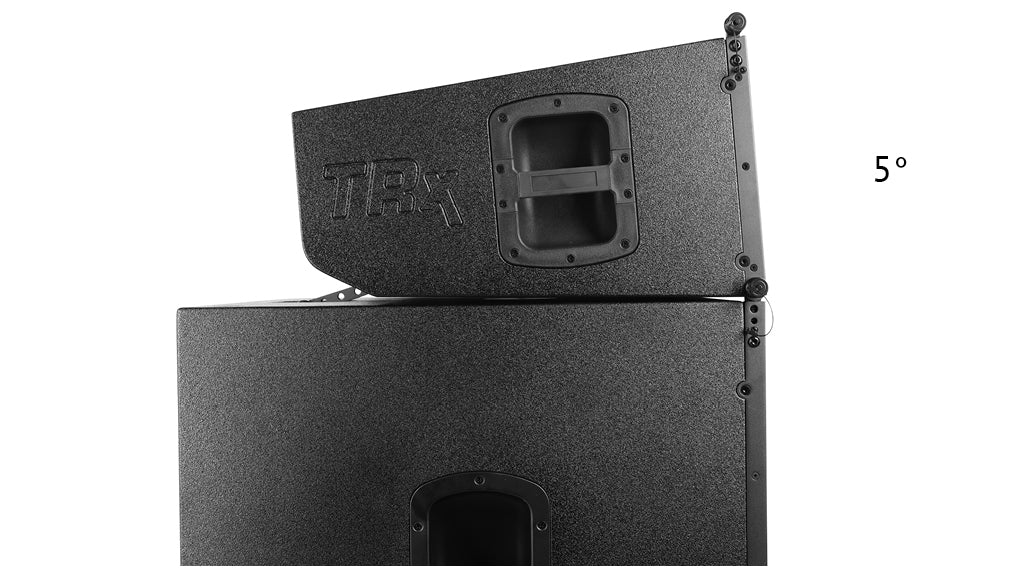

Angled upward to project clean, intelligible sound to mid and far-field listeners without over-energizing the front rows.
Straight-on alignment provides balanced coverage for evenly distributed audiences in flat or shallow-depth venues.

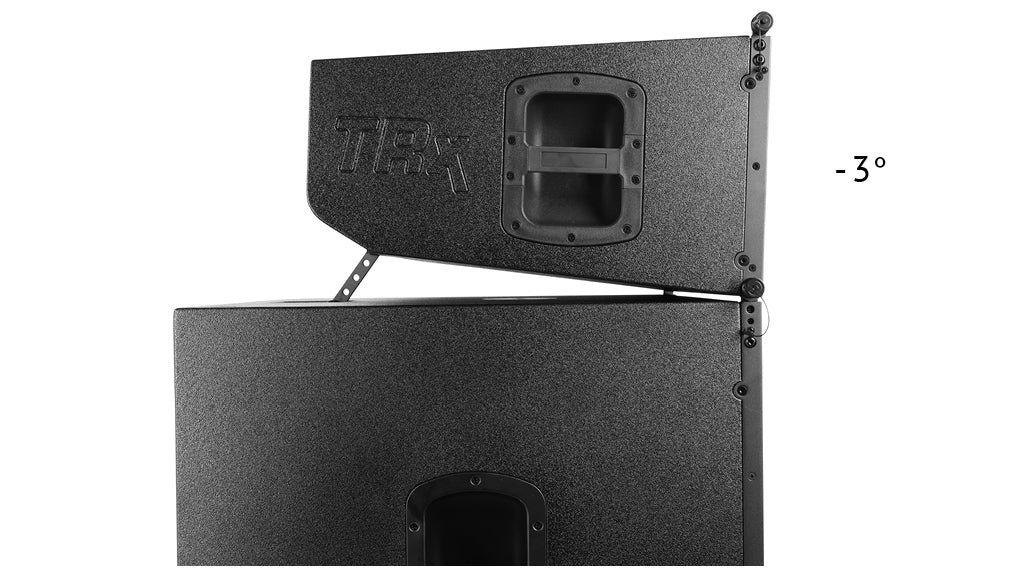

Downward aiming focuses energy toward near-field seating and front-row coverage, reducing spill and reflections.

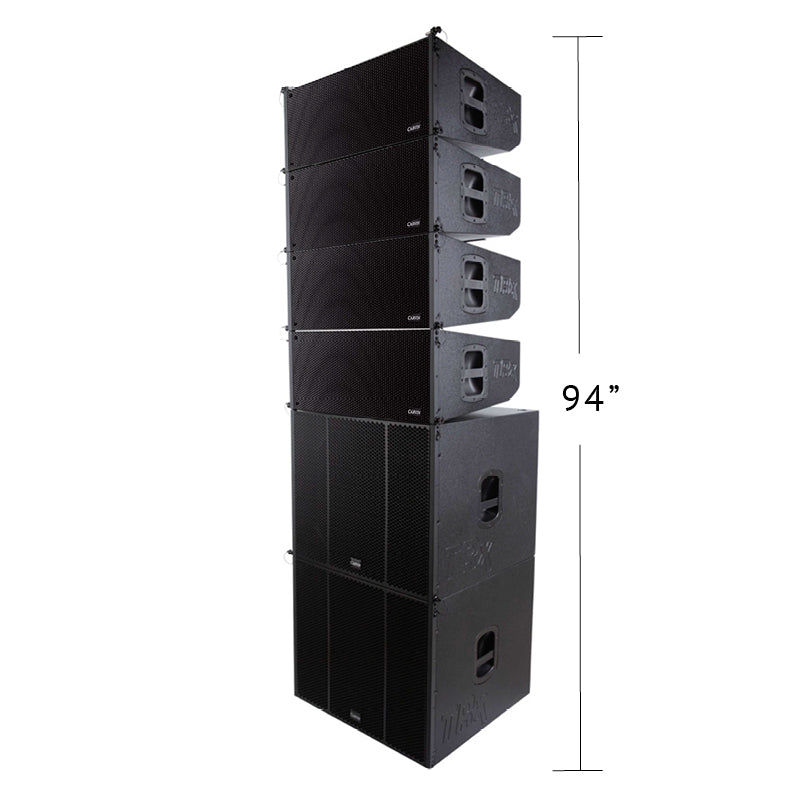

Ground-stack configuration with four TRx5210AN elements reaches approximately 94 inches, providing improved vertical coverage and audience sight lines.
The TRx5000 transport system is designed to reduce handling time, protect equipment, and streamline load-ins from truck to stage. Pre-rigged dolly configurations and efficient truck-pack dimensions make large systems faster to move, easier to manage, and more cost-effective to deploy.

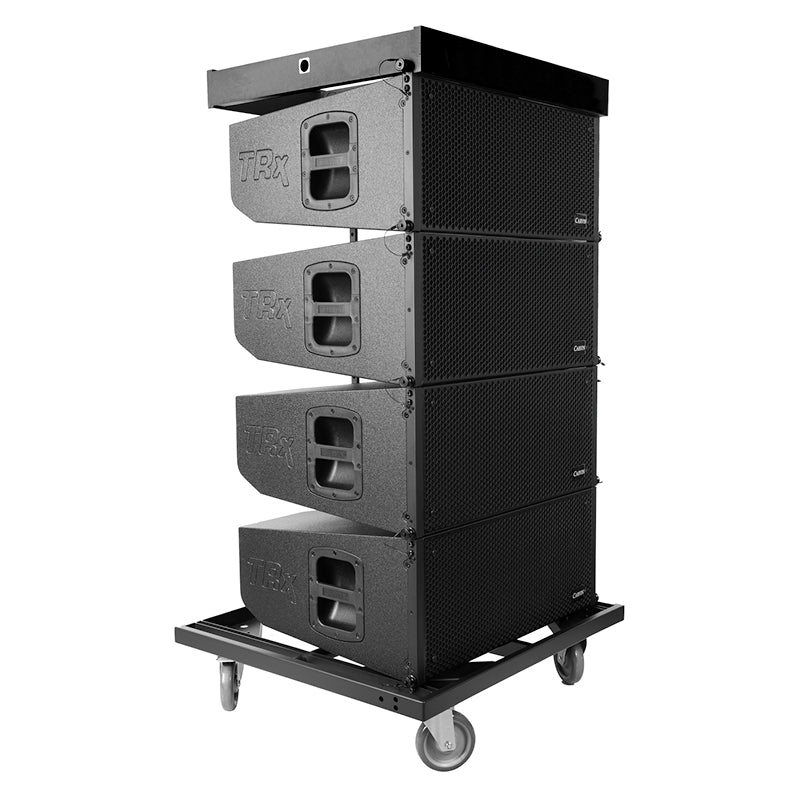

Up to four TRx5210AN line array elements can be secured to the DB521018 steel transport dolly in a pre-rigged configuration, allowing fast movement from truck to stage with minimal handling. Quick-release pin connections keep cabinets locked and aligned, reducing setup time and protecting components during transport. The DB521018 features 5" caster wheels.

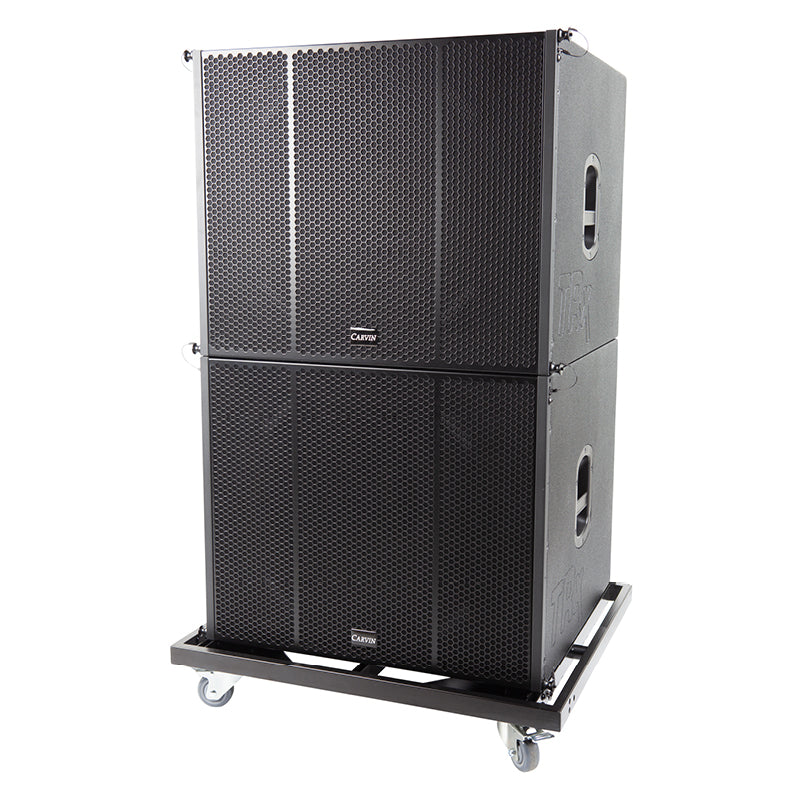

The same DB521018 dolly accommodates two TRx5118A subwoofers, securely pinned together for stable transport and efficient load-ins. This paired configuration simplifies handling of dual-sub stacks while keeping the system organized and ready for deployment. The DB521018 features 5" caster wheels.

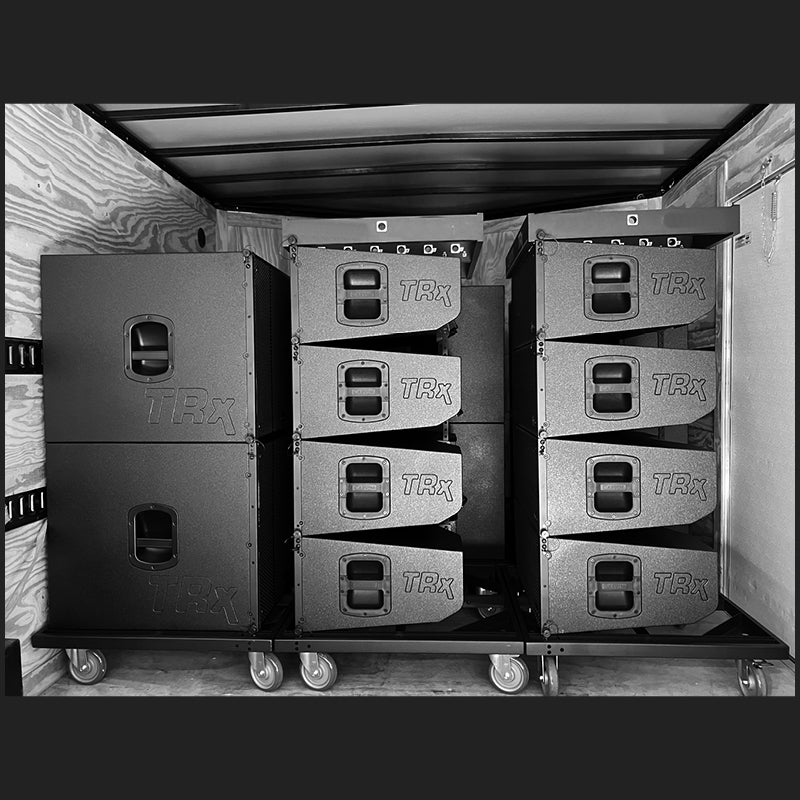

The TRx5000 system packs efficiently for touring and production workflows. This compact footprint allows up to 12 TRx5210AN line array elements or 6 TRx5118A subwoofers to fit in a single row—maximizing truck space while minimizing load time.
Every venue is different. Every audience size demands a different approach.
That’s why the TRx5000 Series is designed as a scalable, modular system—so you can deploy exactly what you need today and expand tomorrow without replacing your core investment.
A compact, high-performance line array solution for smaller outdoor events, houses of worship, and corporate productions. This system delivers exceptional vocal clarity, controlled vertical coverage, and impactful low end—all with a fast setup and minimal footprint.
Why it works:
Ground-stacked or flown, the Small System provides professional line array performance without overbuilding the room, making it perfect for portable and repeat-use deployments.
Designed for mid-size outdoor venues, civic events, and regional touring, the Medium System adds increased throw, higher SPL, and deeper low-frequency impact while remaining efficient on power and crew requirements.
Why it works:
With more array elements and additional subwoofer support, this system maintains consistent sound pressure from front-of-house to the back of the audience—without sacrificing clarity or control.
Built for festivals, large outdoor concerts, and arena-scale events, the Large System delivers maximum output, wide horizontal coverage, and authoritative low-frequency performance at scale.
Why it works:
With extended arrays and powerful subwoofer deployment, this configuration provides uniform coverage across large audience areas—ensuring the front row and far field hear the same balanced mix.
Contact one of our sound system professionals today.
