$349.00
| /

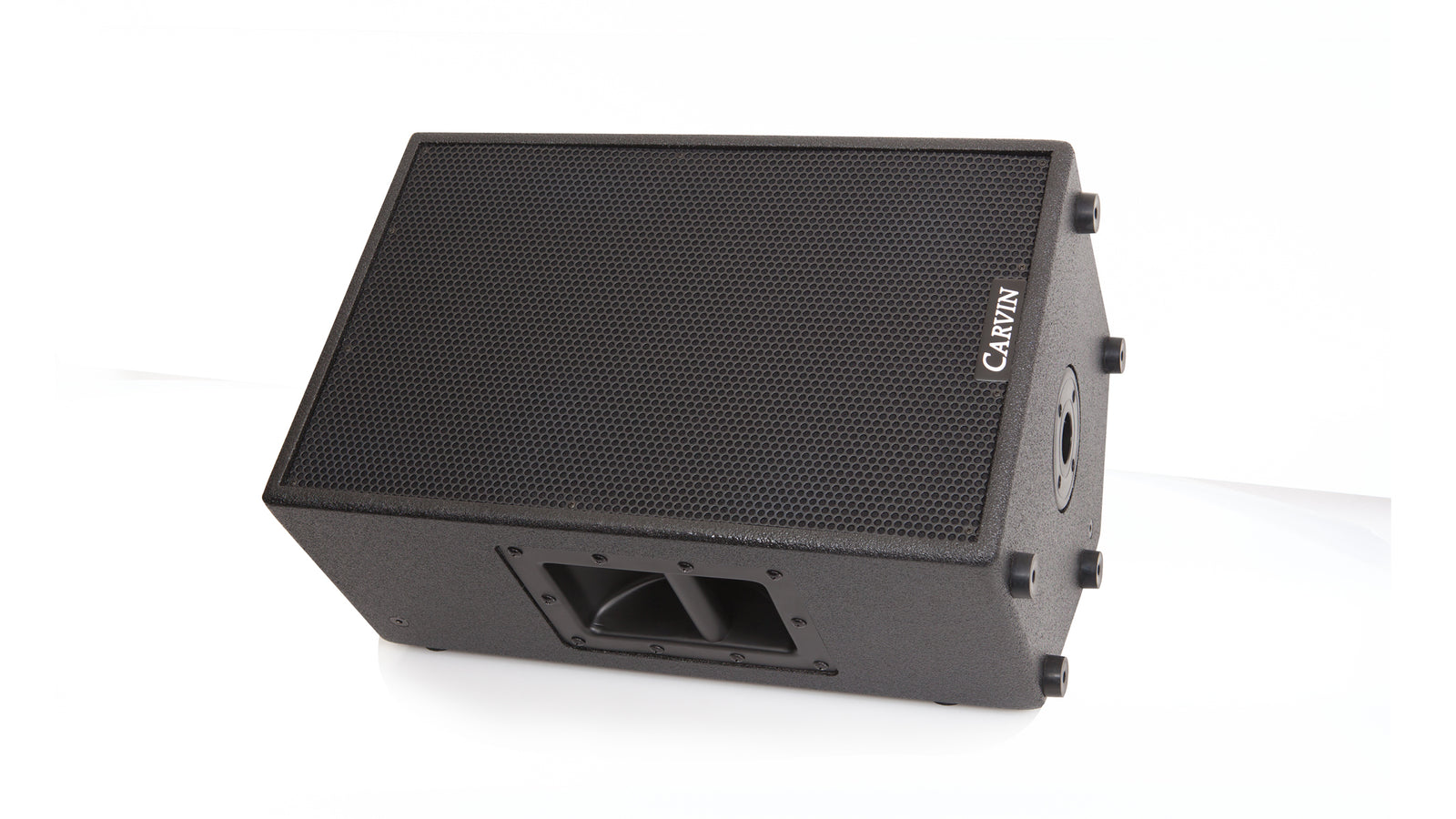

The SCx12A is a 12-inch 2-way active enclosure perfect
for smaller main loudspeaker applications and great
for vocal stage monitors. The bi-amp 1000 watt active
system delivers clear high SPL output with internal
limiting to protect the drivers for years of service.
»System Type: 12-inch 2-way, Active Bass Reflex
»Frequency Response: 60Hz-20kHz (-10dB) 70Hz-18 kHz (-3dB)
»Power: 1000W Program
»Coverage Pattern: Main 90x60 Monitor 60x90
»Sensitivity (1w/1m): 96dB
»Maximum SPL: 126dB
»Maximum Input Signal: +12dBu
»LF: 12-Inch Woofer 4 Ohms
»HF: 1.74-Inch 8 Ohms
»Enclosure: Premium Poplar
»Finish: Black DuraTec™
»Grill: Black powder coated 16-ga steel with cloth backing
»Transport: 2 Recessed handles
»Pole Mount: 1.38-inch pole mount cup

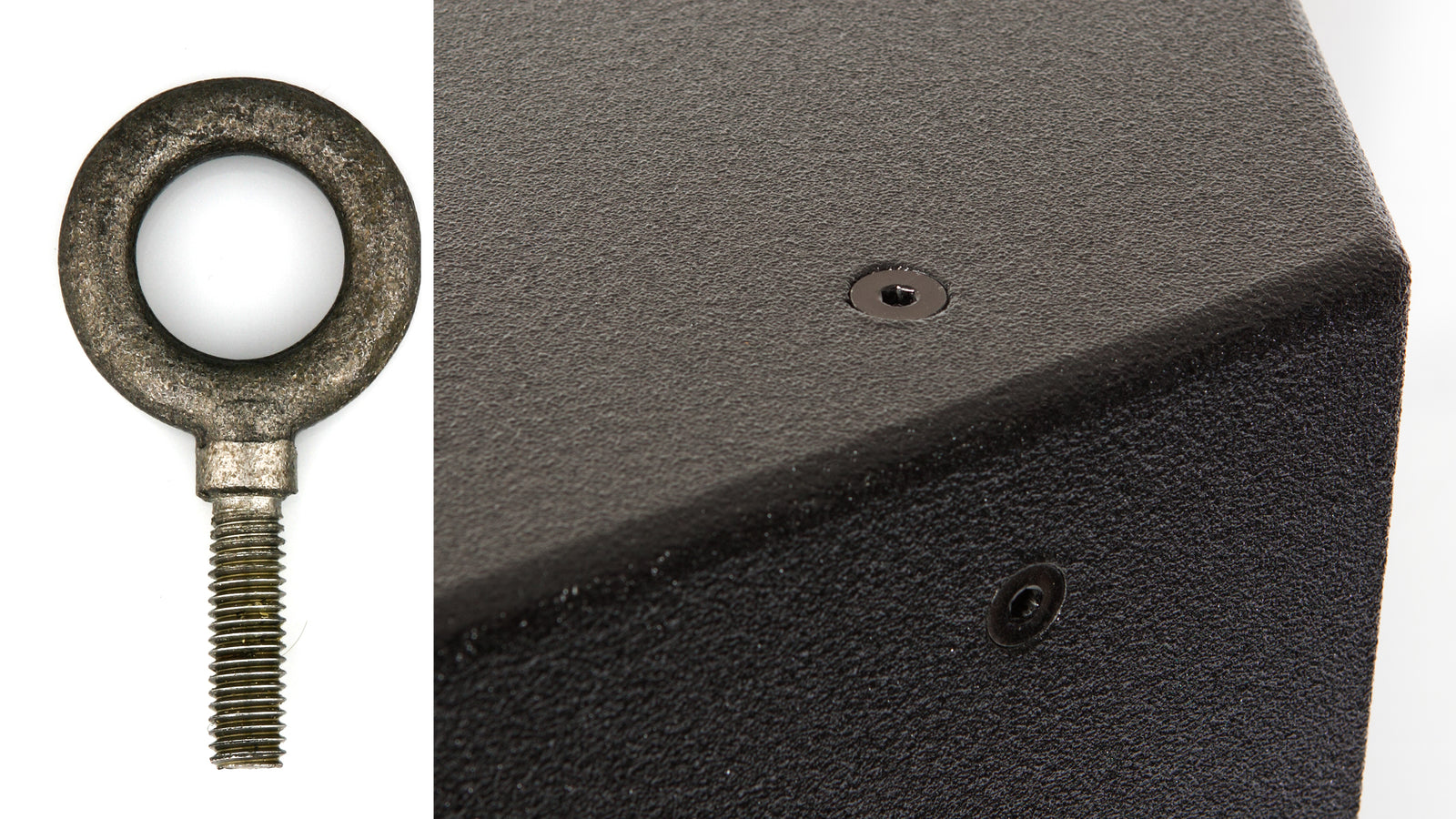

»Suspension Points: 6 points using M8-1.25 x 30mm

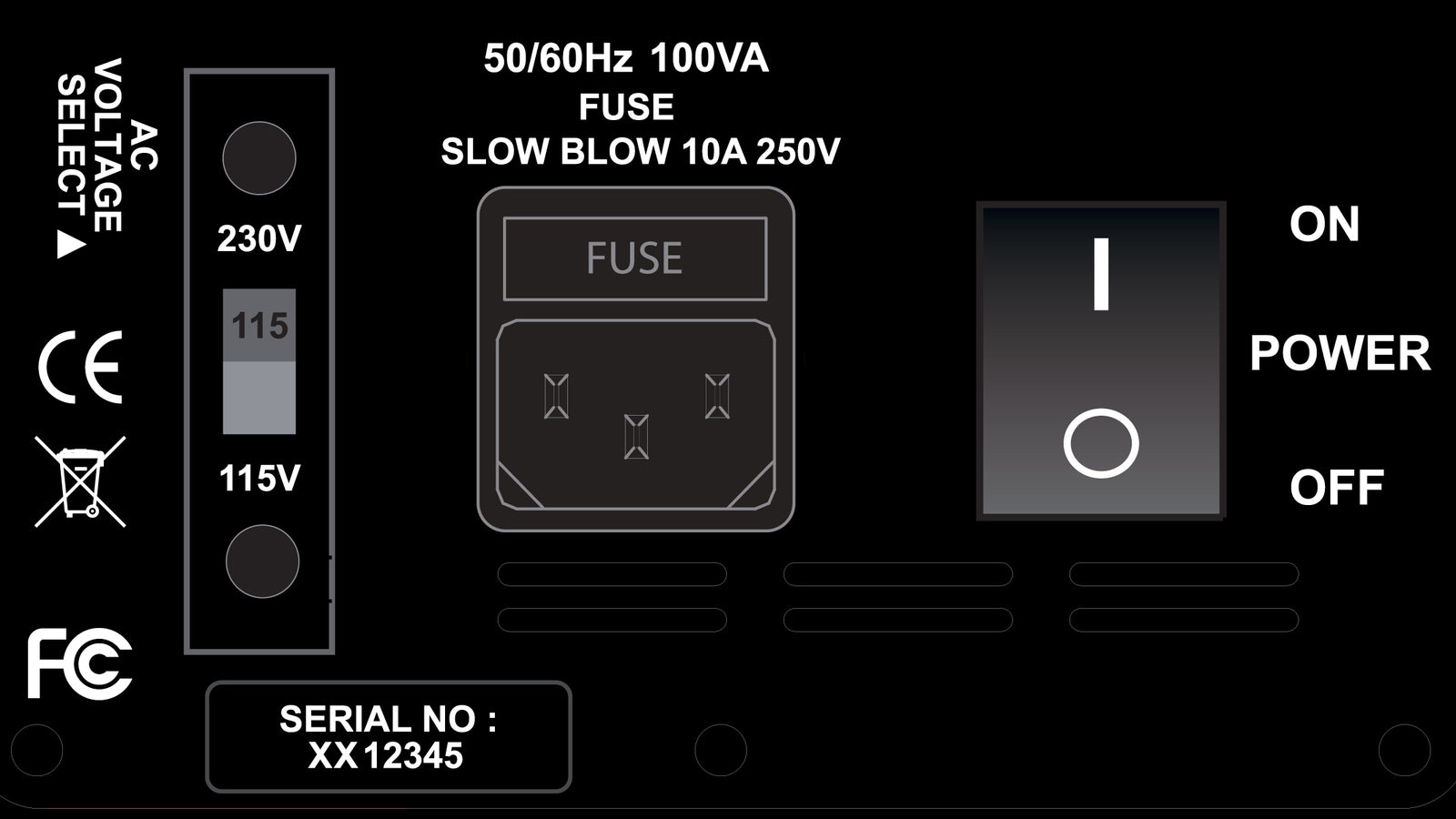

»AC Mains Input: 115V-230V (50-60Hz)
»Net Weight: 35.5lbs
»Dimensions: 14”W x 14”D x 22”H
Tab 3 content
Need a new paragraph? Try using Shift + Enter
Finally, a high output full range loudspeaker solution with a small footprint, so you can have the performance you need in nearly any location.
We designed the DSP of the SCx12A around the Analog Devices ADAU1701 Sigma DSP processor to give you the best sound quality and DSP functions available. Choose from 4 user settings so the SCx12A can deliver the best performance for your intended use. Choose from LIVE,PLAYBACK/DJ, MONITOR or EXTERNAL SUB WOOFER.

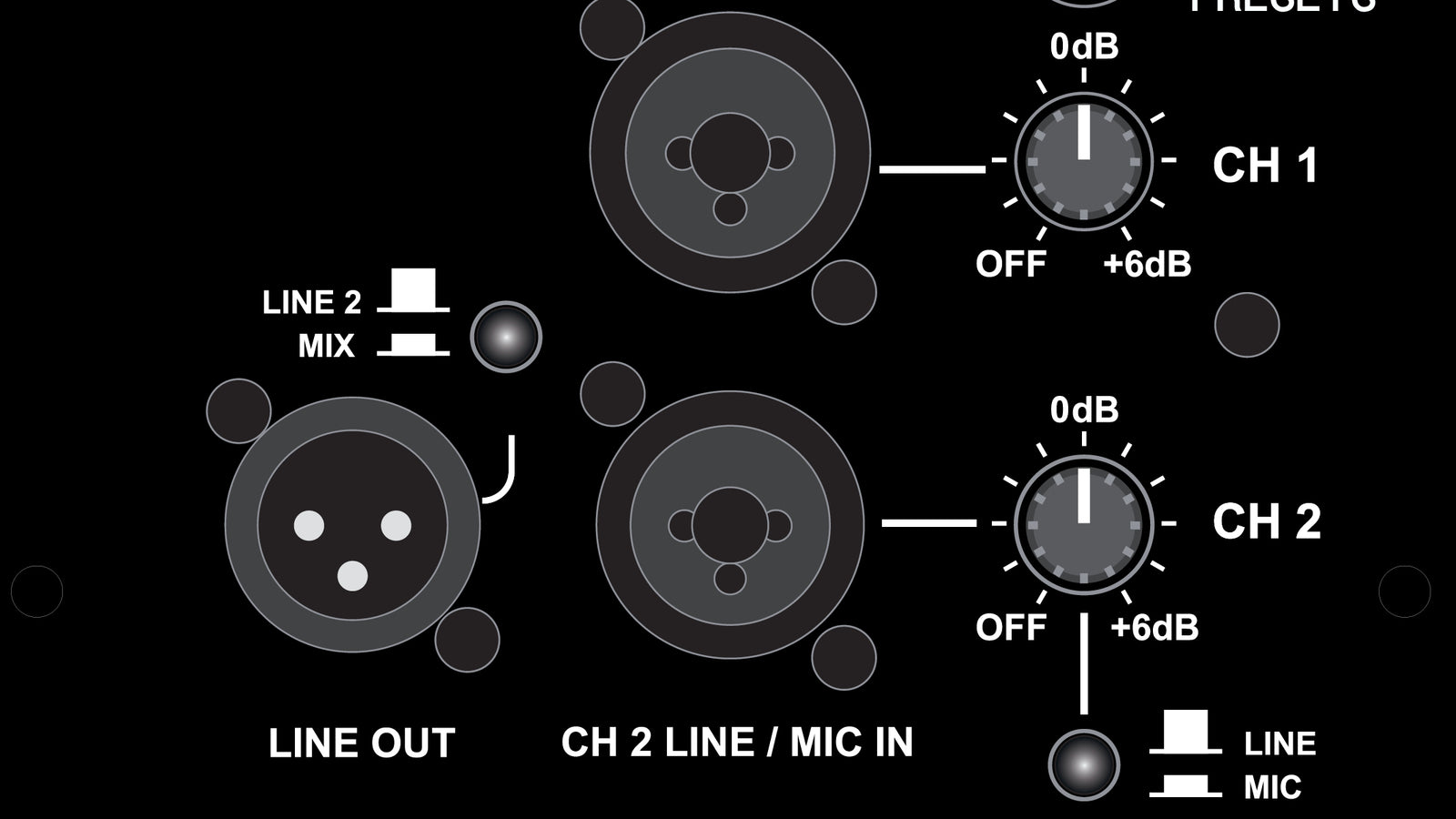

The SCx12A features a two channel mixer. For small gigs, you can plug directly into the speaker, adjust levels and you are ready to perform. Use theLINE/MIC button adjust for optimal gain of the intended input source. Select betweenLINE 2or theMIX signal to send audio to another loudspeaker via theLINE OUT.

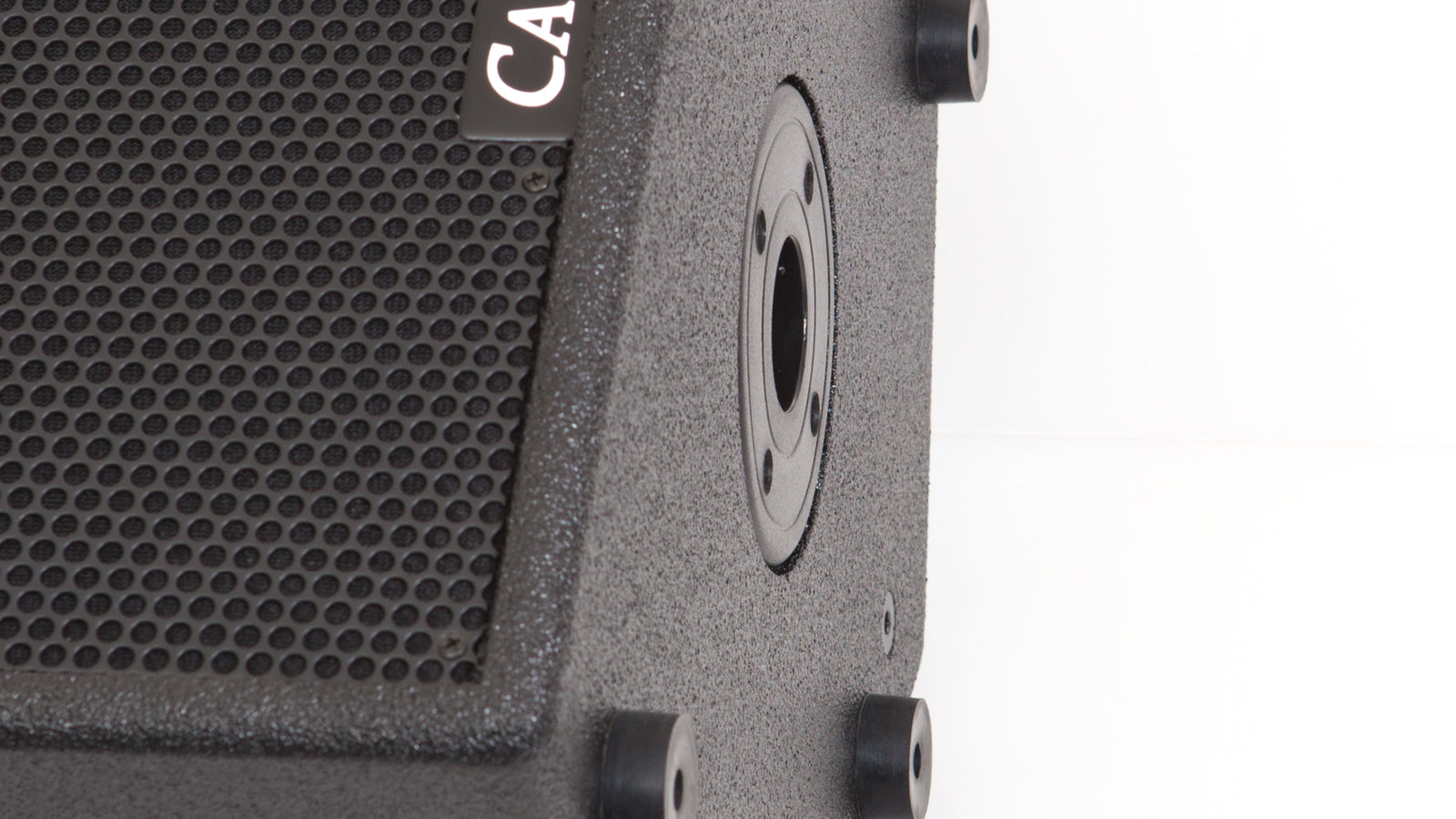

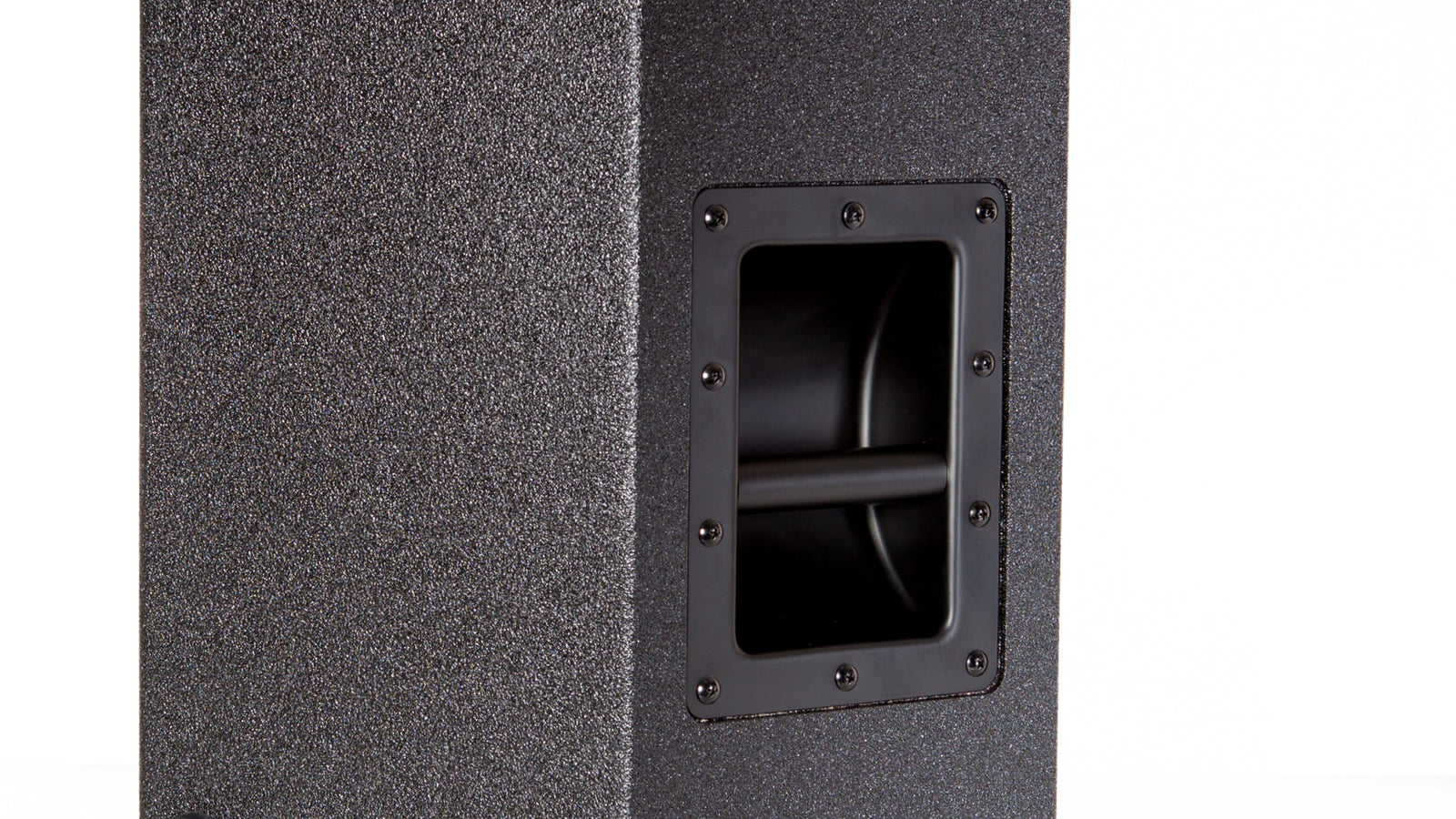

The SCx12A comes equipped with rugged deep pocket handles and a 1.5-inch (38mm) pole mount cup for using the SCx12A on top of the TRx3118A or other subwoofer as a satellite main loudspeaker.
