TRx5118A User Manual ALL DSP Software User Manual
Features:

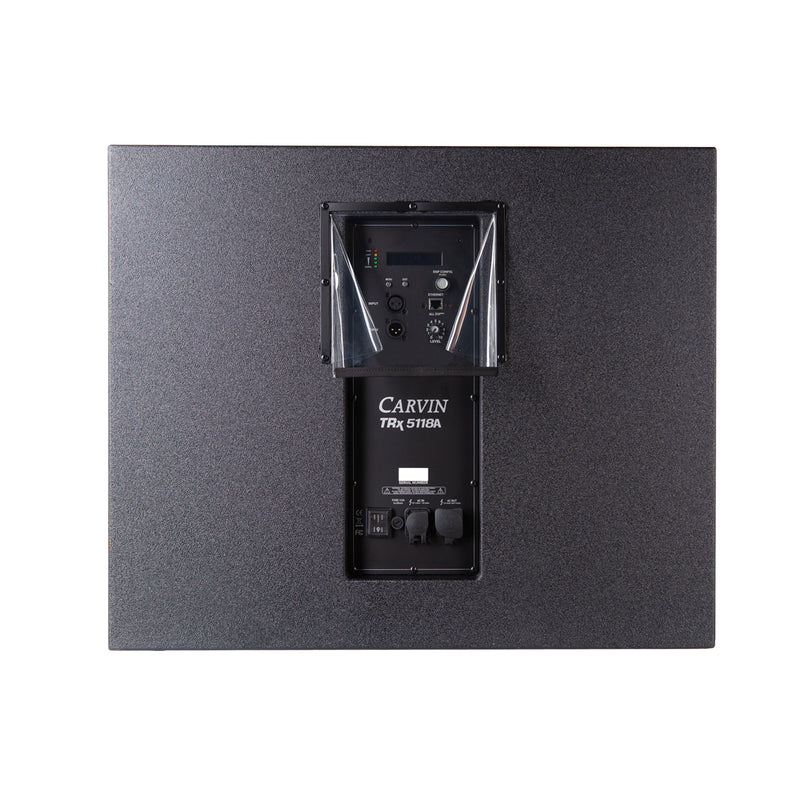

» IP45 Weather Rating
» Ethernet™ ALL DSP™ network
» High output TX18-8 transducer provides deep bass projection
» 136dB SPL
» Bass reflex tuned ported design
» Frequency response 35Hz to 150Hz
» 2000W - two 1000W CLASS D amplifiers bridged
» Ground stack with TRx5210AN line array elements
» Quick release pins for ground stacking and transport dolly

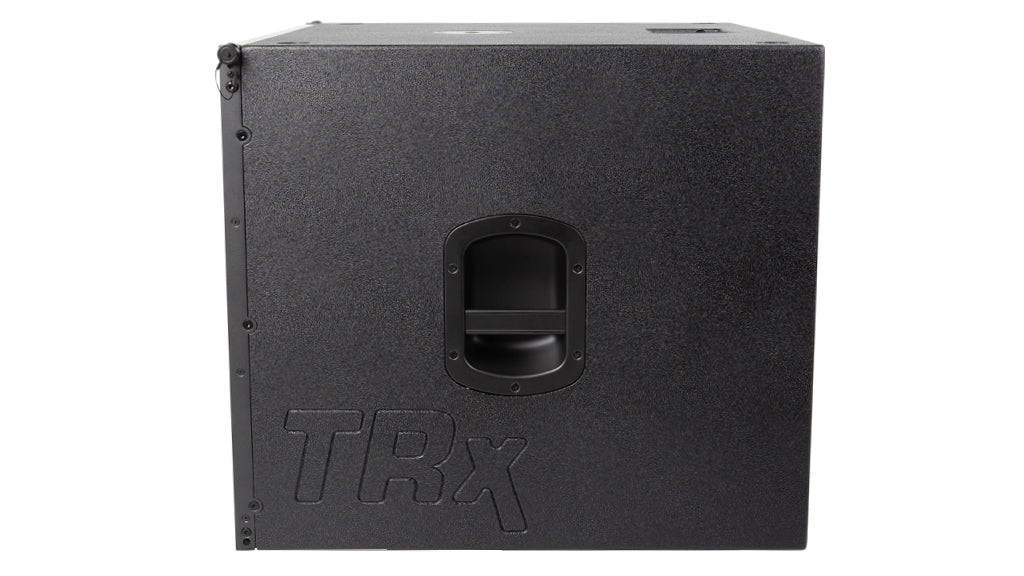

The active TRx5118A effortlessly provides deep, smooth bass with unprecedented depth. The low end is deep and powerful and can be felt with peaks of 136dB SPL. To achieve the extreme levels, the 18-inch TX18-8 transducer features a long-excursion 4” (100mm) voice coil with a reinforced web edge and spider designed for continuous use. The 35Hz-150Hz frequency range captures all the essence of every bass note while its direct radiating bass reflex design offers greater efficiency while reducing air turbulence at the highest levels. Just select the rear DSP panel control for the desired frequency response and you’re ready to go with no further adjustments. When used with the TRx5210AN array, a ratio of 1 sub to 2 elements is a recommended starting point for lots of impressive bass, using up to 16 tops and 8 subs.
The high output TX18-8 transducer provides deep bass projection up to 136dB SPL. To achieve the extreme levels, the 18-inch TX18-8 transducer features a long-excursion 4” (100mm) voice coil with a reinforced web edge and spider designed for continuous use.
To ensure high SPL, there are 2 bridged 1000W CLASS D amplifiers delivering 2000W, which are 97% efficient and provide extended headroom for distortion-free performances.
The TRx5118A subwoofer boasts a single TX18-8 high-powered driver that features a long excursion Flex-Air™ spider with a IP45 water resistance cone and 100mm 4” copper voice coil with massive 22lb. magnet structure.

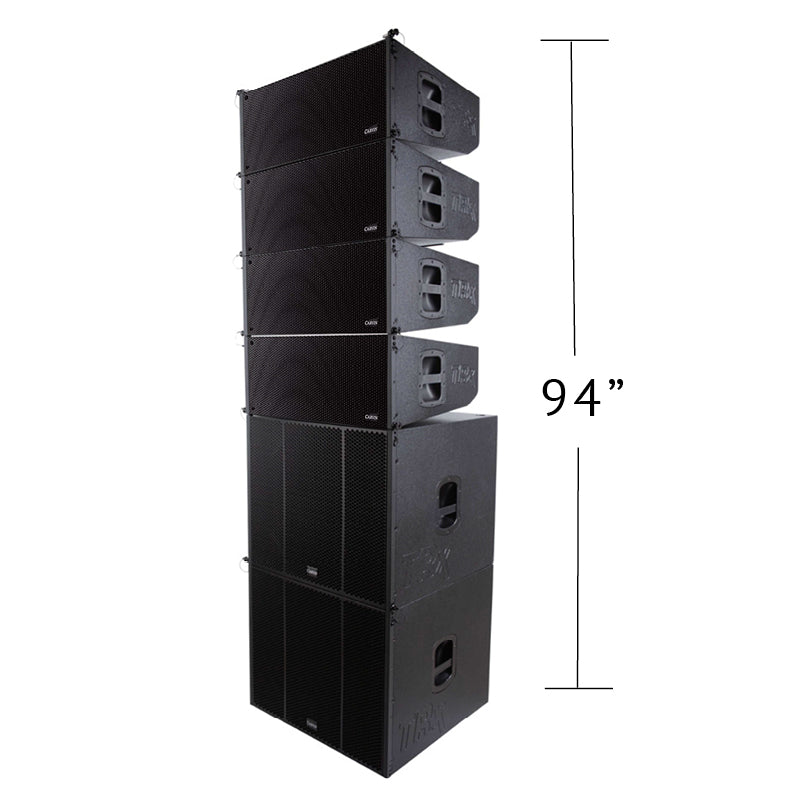

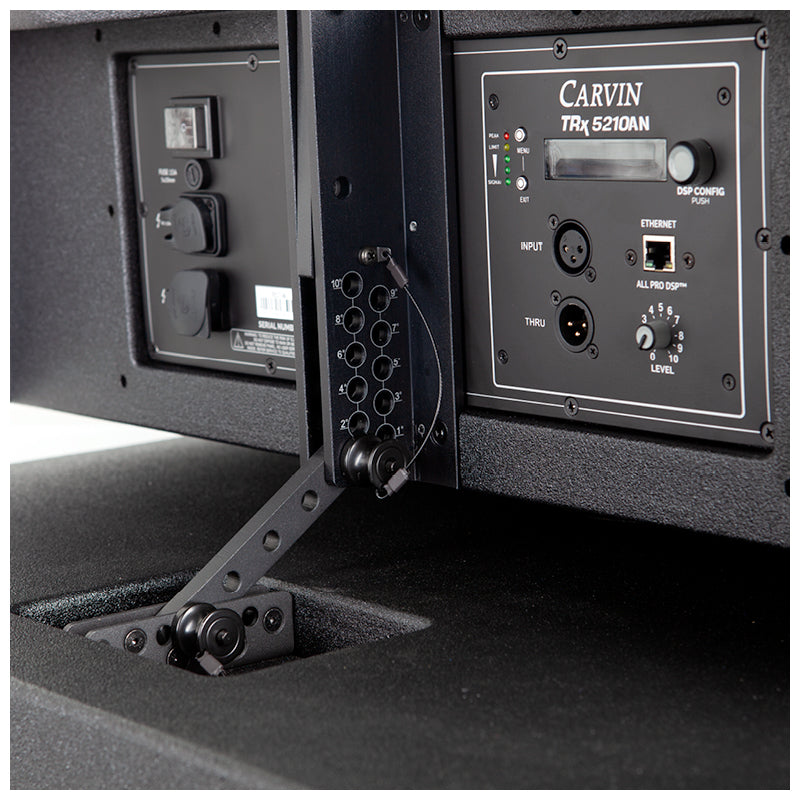

Ground stack up to 4 TRx5210AN line array elements on top of one or two TRx5118A subwoofers. Achieve a total hight of 94" when using two subwoofers. There are three angle options available when ground stacking. Choose from 5° upward, 0°, and 3° downward angles.

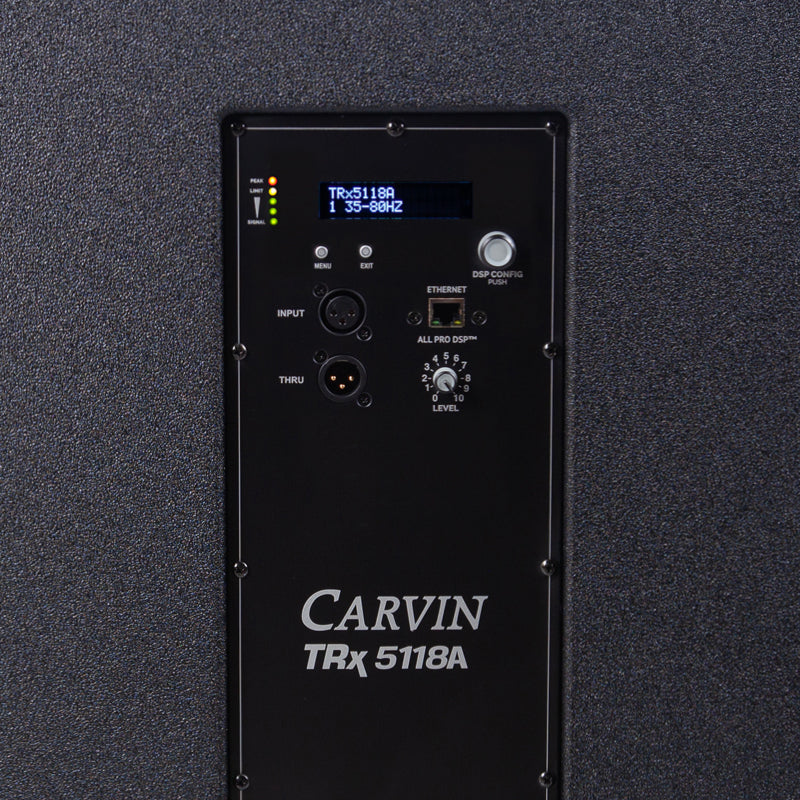

The TRx5118A subwoofer features control software from ALL DSP™. The software allows the user to create and save presets into the subwoofer. The TRx5118A ships with 5 factory tuned presets which include 35-80Hz, 35-100Hz, 35-120Hz, 35-80Hz/180° and cardioid presets. Connect one or more units to a network using the Ethernet ™ connection. You will need to connect each TRx5118A to a network switch and then connect the network switch to a DHCP router that is then connected to your computer.
The optional steel DB521018 Transport Dolly allows up to two TRx5118A subwoofers to be conveniently transported in a pre-rigged configuration and is recommended as the most efficient way to truck and handle the cabinets. The transport dolly is designed to connect the subwoofers to the transport frame using the QPTRx quick pin connectors which secures the shipment of your sound system during transport. The DB521018 comes with 5-inch caster wheels. Two wheels come with locks to keep the transport dolly in place.
Product Details
88.5" is all that is required to fit up to 12 TRx5210AN line array elements or 6 TRx5118A subwoofers in a single row.
